PROGYS 300 TRI - WITHOUT ACCESSORIES

Stock Code: WPG082762
MPN: 082762

Descriptions

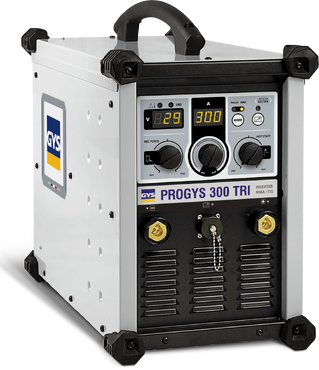

GYS PROGYS 300 TRI 300A 3-Phase MMA / TIG Lift Inverter Welder

The GYS PROGYS 300 TRI is a powerful, heavy-duty 3-phase inverter welding machine designed to deliver exceptional welding performance and productivity, even in demanding working environments. Offering welding currents from 20A to 300A, it supports both MMA (Stick) and TIG Lift welding processes, making it a versatile solution for professional welding applications.

Featuring advanced inverter technology, robust construction and intelligent welding assistance functions, the PROGYS 300 TRI provides reliable performance for demanding industrial and workshop use.

Key Features and Benefits

300A Maximum Welding Current – Powerful welding performance with a 60% duty cycle at 300A.
MMA and TIG Lift Welding – Suitable for MMA welding and TIG welding with Lift arc ignition.
Wide Electrode Compatibility – Supports rutile (6013), basic (7018), cellulosic (6010) and aluminium electrodes up to 6mm diameter.
Adjustable Hot Start – Improves arc ignition for easier starting.
Adjustable Arc Force – Temporarily increases the welding current to help maintain the arc in difficult welding conditions.
Anti-Sticking Function – Helps reduce the risk of the electrode sticking to the workpiece.
Voltage Reduction Device (VRD) – Switchable safety feature that reduces the no-load voltage to 20V for increased operator protection in hazardous environments.
Optimised Cooling System – An enclosed ventilation corridor helps protect internal electronic components from dust.
Clear Displays – Displays welding current and voltage for convenient monitoring.
Glove-Friendly Controls – Intuitive controls designed for straightforward adjustment while wearing welding gloves.
Robust Construction – Reinforced structure with an IP23 protection rating, suitable for outdoor use.
Generator Compatible – Compatible with protected power generators rated at 10kW / 12.5kVA, with a supply voltage tolerance of ±15%.

Technical Specifications

Specification	Details
Brand	GYS
Model	PROGYS 300 TRI
Product Reference	082762
Welding Processes	MMA (SMAW) / TIG Lift (GTAW)
Input Voltage	400V
Power Supply	3-phase
Frequency	50/60Hz
Maximum Input Current	20A
Welding Current Range – MMA	20–300A
Welding Current Range – TIG	20–300A
Duty Cycle at 300A	60%
Duty Cycle at 230A	100%
Maximum No-Load Voltage	83V
No-Load Voltage with VRD Activated	20V
Maximum MMA Electrode Diameter	6mm
TIG Electrode Diameter	1.0–3.2mm
Maximum Carbon Gouging Electrode Diameter	5mm
Protection Rating	IP23
Dimensions (L × W × H)	54 × 46 × 28.3cm
Weight	26kg
Compatible Generator Power	10kW / 12.5kVA
Supply Voltage Tolerance	±15%
Welding Standard	EN 60974-1
Manufacturing Origin	China

Product Description

The GYS PROGYS 300 TRI combines power, versatility and durability in a professional welding inverter designed for demanding industrial and workshop applications. With its high welding output, adjustable arc control features and integrated VRD safety function, it offers dependable performance across a wide range of welding tasks.

Please note: Welding accessories are not included.
