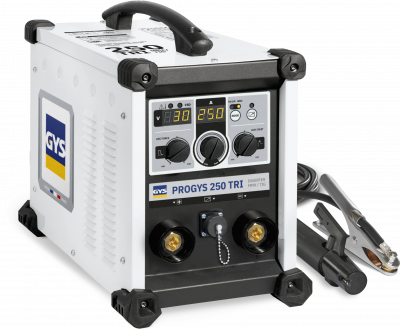

PROGYS 250 TRI - WITH ACCESSORIES

Stock Code: WPG083561
MPN: 083561

Descriptions

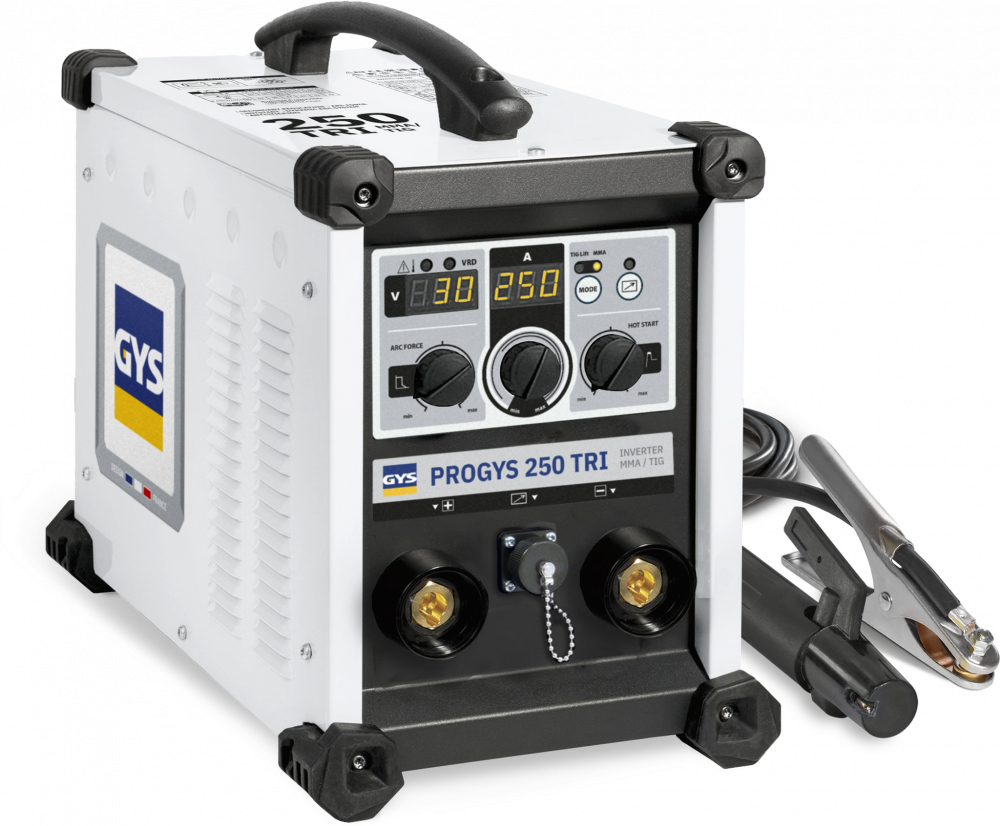

GYS PROGYS 250 TRI 250A 3-Phase MMA / TIG Lift Inverter Welder – Ref. 083561

The GYS PROGYS 250 TRI is a powerful, portable and heavy-duty 250A inverter welding machine designed for professional welding applications. Manufactured by GYS, this robust 3-phase power source offers excellent welding performance using both MMA (Stick) and TIG Lift welding processes.

Featuring advanced inverter technology, a reinforced structure and an IP23 protection rating, the PROGYS 250 TRI is built to perform reliably in demanding working environments, including workshops and suitable outdoor applications.

With adjustable Hot Start, Arc Force and an integrated Antisticking function, this machine provides excellent arc control, easier ignition and improved welding performance across a range of applications.

Supplied with MMA welding accessories, the PROGYS 250 TRI is an ideal choice for professional welders looking for a versatile, reliable and high-performance welding solution.

Key Features & Benefits

250A Maximum Welding Current – Adjustable welding current from 20A to 250A.
Dual Welding Processes – Suitable for MMA (Stick) and TIG Lift welding.
3-Phase Power Supply – Designed for 400V three-phase electrical supplies.
Wide Electrode Compatibility – Suitable for rutile (E6013), basic (E7018) and cellulosic (E6010) electrodes up to 5mm diameter.
TIG Lift Ignition – Compatible with TIG electrodes from 1.0mm to 2.4mm.
High Duty Cycle – Delivers 230A at a 60% duty cycle in MMA mode.
Adjustable Hot Start – Helps improve arc ignition, particularly when starting difficult electrodes.
Adjustable Arc Force – Provides additional current when required to maintain a stable arc.
Antisticking Function – Helps reduce electrode sticking during welding.
Switchable VRD Safety System – Voltage Reduction Device can reduce the no-load voltage to 20V to improve operator safety in hazardous environments.
Digital Welding Display – Displays welding current and voltage during operation.
Rugged Construction – Reinforced structure designed for demanding working conditions.
IP23 Protection Rating – Suitable for appropriate outdoor working environments.
Optimised Cooling System – Air-tight ventilation corridor helps protect electronic components from dust.
Generator Compatible – Suitable for compatible generators with a tolerance of ±15%.
Remote Control Compatible – Optional RC-HA1 remote control available, reference 045675.

Technical Specifications

Specification	Details
Brand	GYS
Model	PROGYS 250 TRI
Product Reference	083561
Welding Processes	MMA / TIG Lift
Maximum Welding Current	250A
Minimum Welding Current	20A
Power Supply	400V, 3-phase
Frequency	50/60Hz
MMA Duty Cycle at 40°C	230A at 60%
MMA Current at 100% Duty Cycle	180A
TIG Lift Duty Cycle at 40°C	230A at 50%
TIG Lift Current at 100% Duty Cycle	200A
No-Load Voltage	82V
VRD Reduced No-Load Voltage	20V
Compatible MMA Electrodes	Rutile, basic and cellulosic
Maximum Electrode Diameter	5mm
TIG Electrode Diameter	1.0–2.4mm
Protection Rating	IP23
Dimensions (L × W × H)	43 × 24 × 35cm
Weight	15kg
Recommended Generator Power	10kW / 12.5kVA
Welding Standard	EN 60974-1
Operating Temperature Reference	40°C

What's Included?

GYS PROGYS 250 TRI inverter welding machine
3m welding cable, 25mm²
3m earth cable, 25mm²

Supplied with accessories as specified under product reference 083561. Please confirm the package contents before ordering.

Optional Accessories

RC-HA1 Remote Control – Ref. 045675

An optional remote control with an 8m cable is available, allowing the welder to adjust the welding current remotely.

Applications

The GYS PROGYS 250 TRI is suitable for professional fabrication, maintenance, repair work and general industrial welding applications where powerful MMA welding and TIG Lift capability are required.

Its robust construction, adjustable welding aids and selectable VRD safety feature make it a versatile choice for demanding professional environments.

Manufacturer: GYS
Model: PROGYS 250 TRI
Reference: 083561
Product Type: 250A 3-Phase MMA / TIG Lift Inverter Welder
