ESAB 0700900701 Sentinel A70 Air Pro Air Fed Welding Helmet

Stock Code: SHESA70AIRPROH
MPN: 700900701

Descriptions

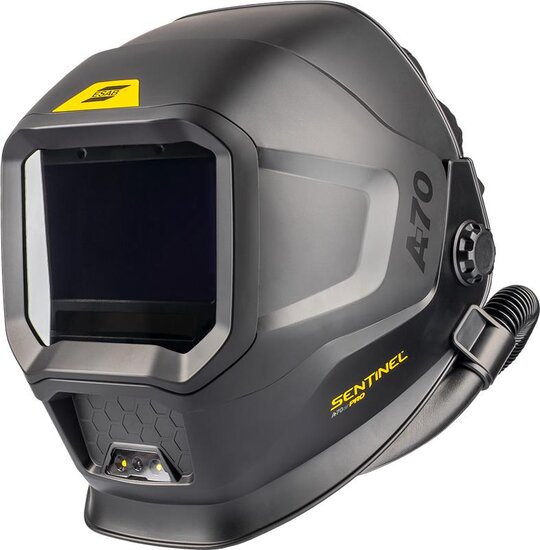

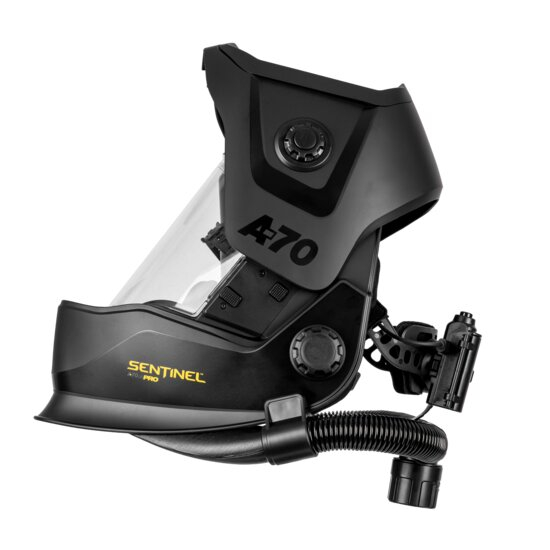

Sentinel A70 Air PRO – Advanced Protection with PAPR

The Sentinel A70 Air Pro combines the rugged performance of the A70 Pro with the highest level of respiratory protection. Featuring an integrated air duct system, the helmet connects to ESAB’s EPR-X1.1 PAPR to deliver EN 12941 TH3P-certified filtration, ensuring a clean, reliable air supply in the toughest welding environments.

A wide-view ADF with a 3/5–13 adjustable shade range keeps you in control, while the flip-up design and oversized grinding shield let you switch seamlessly between tasks. For low-light conditions, the 50-lumen LED work light improves visibility, and Bluetooth connectivity through the ESAB Helmet Connect app provides digital control and customization.

Large 123 x 75 mm (4.8 x 3 in.) ADF view area with 3/5-13 adjustable shade range in 0.5 shade increments
10-step delay and sensitivity adjustment
Fully-digital user interface with internal and external control options
Flip-ADF bracket is removable for extended finishing operations
Huge, 150 x 19 mm (5.9 x 7.625 in.) grinding face shield
50-lumen LED work light to aid in work setup and inspection when ambient light is poor
Compatible with ESAB’s Helmet Connect app via Bluetooth connection
Rechargeable lithium battery
EN 19241 TH3P filtration with ESAB’s EPR-X1.1 PAPR

Process:

GMAW (MIG/MAG)
GTAW (TIG)
PAW - Plasma Arc Welding
SMAW/MMA (Stick)

All-In-One Productivity

Best of two helmets. In one.

The Sentinel A70 Pro is engineered to keep work moving, with Standard & AIR model options available to suit your working environment. The flip-up ADF makes it easy to move from welding to grinding, and the fully removable ADF supports extended finishing—no helmet change required.

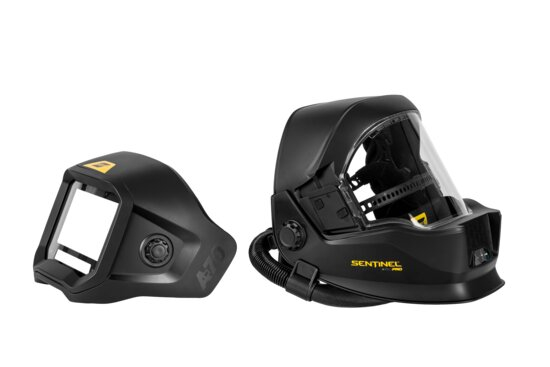

Flip-up ADF for weld-to-grind transitions

Fully removable ADF for long finishing work

Large grinding lens for clear, uninterrupted visibility

Smart, Intuitive Control

Advanced when you need it. Simple when you don’t.

Sentinel A70 Pro combines an internal color TFT display with an external digital dial, giving welders fast, precise control without breaking focus. Adjust settings easily—gloved or ungloved—no menus, no guesswork.

Internal TFT screen for clear, precise adjustments

External digital dial for fast, glove-on control

Welder-first interface reduces setup time

Connected Intelligence

Set just the way you like it. Every time.

The Sentinel A70 Pro pairs with the ESAB Helmet Connect mobile app to give welders consistent control across jobs and shifts. Sync settings between helmet and phone, store and recall profiles with ease, and track usage to stay organized and repeatable.

ESAB Helmet Connect mobile app for iOS and Android

Save and up to 20 weld profiles between helmet and app

Usage and arc-time tracking to support consistency and planning

No-Quit Protection

Clarity and protection you can rely on.

Sentinel A70 Pro features ESAB’s OpTCS™ True Color ADF, designed to deliver a true-to-color, natural view that helps reduce eye fatigue. The balanced HALO™ headgear and low-profile shell provide dependable comfort and protection for the realities of heavy industry.

OpTCSTM True Color ADF for reduced eye strain

Adjustable HALOTM headgear for balanced comfort

Optional AIR (PAPR) configuration for demanding environments

Need respiratory protection? The A70 Pro AIR configuration provides powered, filtered airflow.

Specifications

Certification & Standards ISO: 16321

AS/NZS: 1338.1

CSA: Z94.3

ANSI: Z87.1

Weight 1200 g
