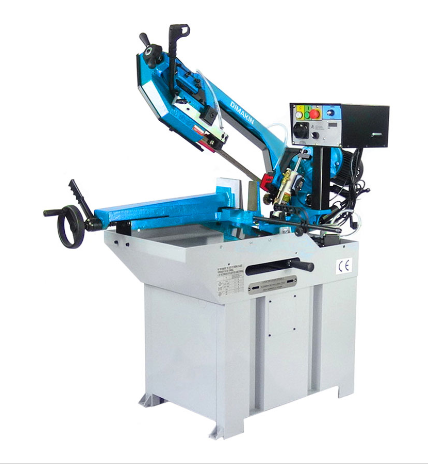

Bandsaw BS-310-SM

Stock Code: BS-310-SM
MPN: BS-310-SM
£3,225.00 (exc VAT) per 1
£3,870.00 (inc VAT)
Quantity: - +

The Bandsaw BS-310-SM is a modestly sized but powerful single-mitre bandsaw suitable for garage hobbyists all the way up to small and medium output fabrication workshops alike. Currently the medium-sized bandsaw in the range, the Bandsaw BS-310-SM is perfect if you need a bit more machine than the smaller BS-270-SM, but aren’t ready for the Bandsaw BS-420-DM.

Like its smaller counterpart, this bandsaw miters up to 60° one way. However, it has slightly larger 27mm blade depth to further increase the accuracy with the increased capacity. Combined with the standard manual blade tension adjustment, the Bandsaw BS-310-SM will give perfectly straight cuts time after time.

Despite its high capacity, this bandsaw also benefits from using a single phase motor. This means it can be powered almost anywhere.

As with all DIMAKIN horizontal bandsaws , the Bandsaw BS-310-SM comes standard with an automatic stop when the blade reaches the bed, or the option to switch from hydraulic descent to manual control with the flick of a switch. An inverter-driven blade allows precision control between 20 – 85m/min. This ensures the perfect cut every time, while also maximising the life of your blade.

This metal cutting bandsaw features a blade tension gauge to accurately review your blade tension is suitable.

Lastly, a self-contained coolant system as a standard feature further prolongs the life length of your blade and ensures a lifetime of industrial quality cutting.

Metal Cutting Bandsaw BS-310-SM FEATURES:

  • Compact and economical
  • Middle of the range
  • Suitable garage hobbyists up to medium-output workshops
  • Manual or hydraulic descent
  • Precision blade speed
  • Miters up to 60° one way
  • 27mm blade depth for precise cutting
  • Coolant system as standard to extend blade life
  • Adjustable blade tension
  • Blade tension gauge
  • Cam locking vice
  • Material stop
  • Blade stops automatically when cut is finished
  • Single phase

Specifications

Round cutting capacity 90°/45°/60° 227mm/150mm/90mm

Square cutting capacity 90°/45°/60° 220mm/145mm/85mm

Rectangle cutting capacity 90°/45° 260mm x 110mm/200mm x 125mm

Mitre Single (0-60°)

Blade dimensions 27mm x 0.9mm x 2460mm

Blade speed 20-85m/min

Vice opening 310mm

Descent Hydraulic or manual

Return Manual

Bow tilt 40°

Table height 900mm

Coolant system Yes

Weight 216kgs

Motor 1.1Kw

Power Single phase

Shipping dimensions 250kg 1550 x 740 x 920mm

MPNBS-420-DM
BRANDDimakim
WEIGHT216kgs
ConditionNew
