Promac PBD-2870 Economical Lathe

Promac PBD-2870 Economical Lathe

Stock Code: PBD-2870
MPN: PBD-2870
£3,096.63 (exc VAT) per 1
£3,715.95 (inc VAT)
Quantity: - +

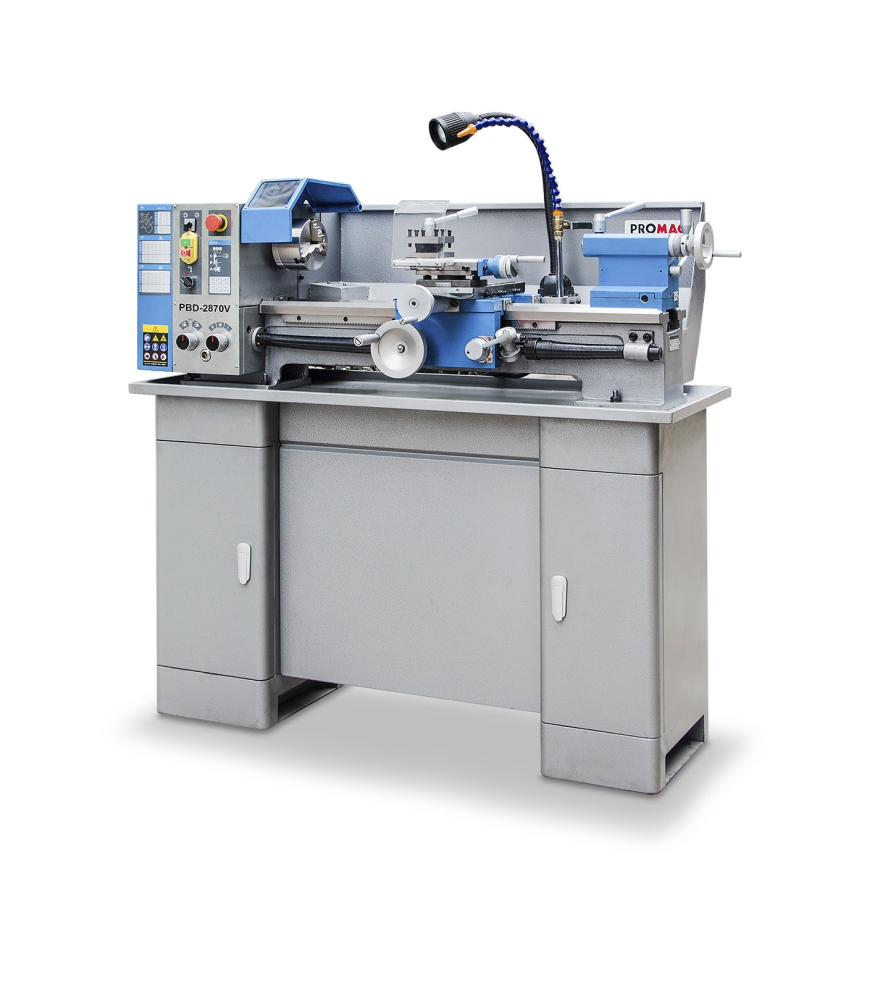

Promac PBD-2870 Economical Lathe

Promac PBD-2870 Economical Lathe automatic longitudinal feed Electronic variable speed control Gray cast iron frame for vibration-free machining Lubrication system With work light Incl. pedestal, lathe chuck protection, emergency stop switch.


Specifications:

Motor (V/kW) 230/1.1

Center height (mm) 140

Center distance (mm) 700

Swing over bed (ø-mm) 280

Swing over carriage (ø-mm) 170

Spindle bore (mm) 26

Morse taper of headstock MT4

Speed range (min-1) 150–2’000, variable

Cross slide, stroke (mm) 160

Top slide, stroke (mm) 60

Range of metric threads (mm) 0.2–3.5

Range of inch threads (TPI) 8–56

Longitudinal feed (mm/U) 0.07/0.4

Morse taper of tailstock MT2

Morse taper of tailstock, stroke (mm) 85

Max. tool size (mm) 12

3-jaw chuck (mm) 125

Dimensions (mm) 1’390×700×1’285

Weight (kg) 282


MPNPBD-2870
BRANDPromac
WEIGHT282 kgs
ConditionNew
