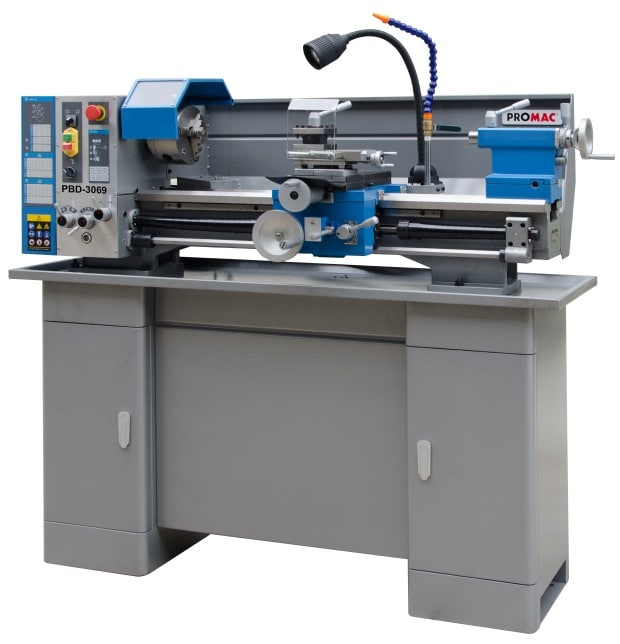

Promac PBD-3069 Economical Lathe

Promac PBD-3069 Economical Lathe

Stock Code: PBD-3069
MPN: PBD-3069
£3,892.00 (exc VAT) per 1
£4,670.40 (inc VAT)
Quantity: - +

Promac PBD-3069 Economical Lathe

Promac PBD-3069 Economical Lathe electronic variable speed control. Automatic longitudinal feed. Gray cast iron frame for vibration-free machining. Lathe chuck protection, emergency stop switch.


Specifications:

Motor (V/kW) 230/1.1

Center height (mm) 150

Center distance (mm) 750

Swing over bed (ø-mm) 300

Swing over carriage (ø-mm) 170

Spindle bore (mm) 38

Morse taper of headstock MT5

Speed range (min-1) 150 2’000, variable

Cross slide, stroke (mm) 170

Top slide, stroke (mm) 90

Range of metric threads (mm) 0.2 0.4

Range of inch threads (TPI) 8 56

Longitudinal feed (mm/U) 0.085/0.13/0.17/0.21/0.35/0.40/0.50/0.83

Morse taper of tailstock MT3

Morse taper of tailstock, stroke (mm) 80

Max. tool size (mm) 16

3-jaw chuck (mm) 160

Dimensions (mm) 1’400×700×700

Weight (kg) 357


MPNPBD-3069
BRANDPromac
WEIGHT357 kgs
ConditionNew
