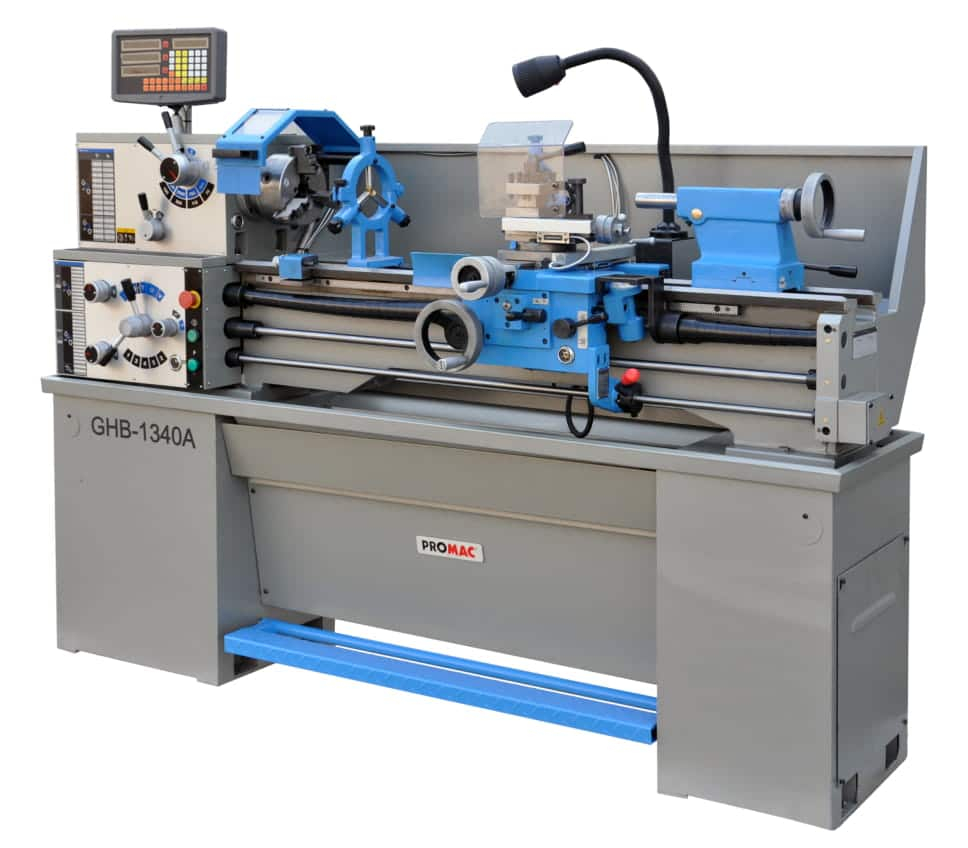

Promac GHB-1340A-FT Economical Precision Lathe

Promac GHB-1340A-FT Economical Precision Lathe equipped with digital display panel for X, Y and Z axes CW/CCW rotation of the spindle enables threads to be realized.


Specifications:

Motor (V/kW) 400/1.5

Center height (mm) 165

Center distance (mm) 1’000

Swing over bed (ø-mm) 330

Swing over carriage (ø-mm) 197

Spindle bore (mm) 38

Morse taper of headstock MT5

Spindle taper CAMLOCK D1-4 (DIN 55029)

Speed range (min-1) 70–2’000, variable

Cross slide, stroke (mm) 160

Top slide, stroke (mm) 68

Longitudinal feed (mm/U) 0.037 0.989

Crossfeed (mm/U) 0.01 0.268

Range of metric threads (mm) 0.45 10

Range of inch threads (TPI) 31/4 80

Morse taper of tailstock MT3

Morse taper of tailstock, stroke (mm) 105

Max. tool size (mm) 16

3-jaw chuck (mm) 160

Dimensions (mm) 1’905×760×1’200

Weight (kg) 650

MPNGHB-1340A-FT
BRANDPromac
WEIGHT650 kgs
ConditionNew
