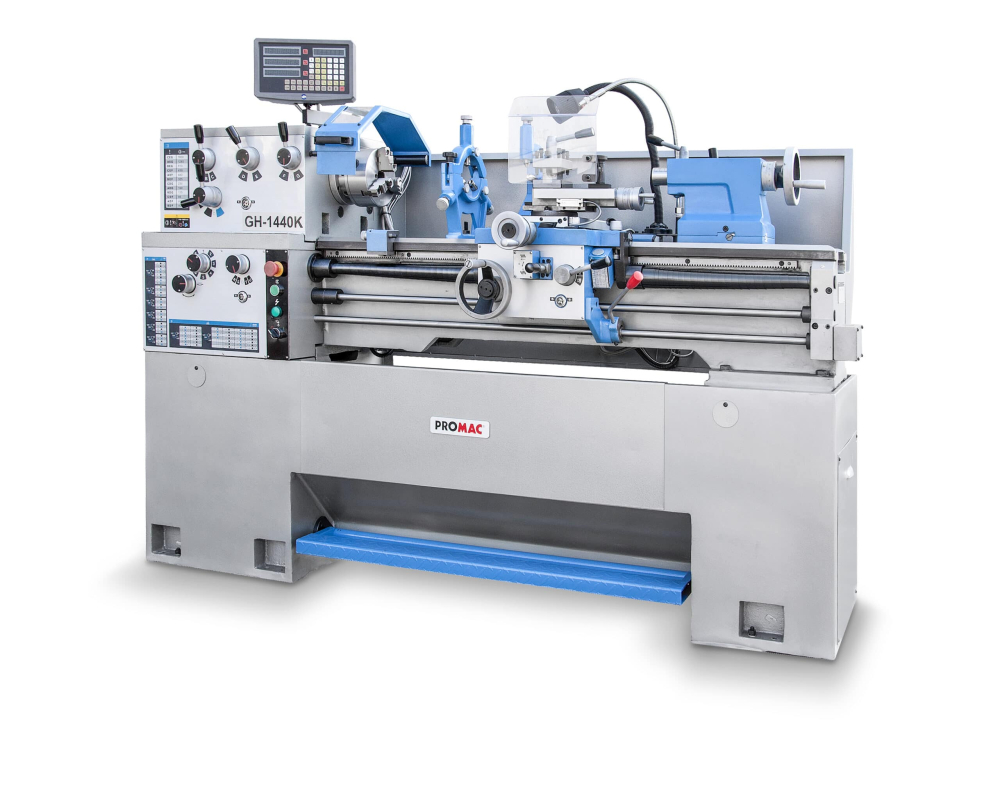

Promac GH-1440K-T Economical Precision Lathe

Promac GH-1440K-T Economical Precision Lathe

Stock Code: GH-1440K-T
MPN: GH-1440K-T
£9,023.88 (exc VAT) per 1
£10,828.65 (inc VAT)
Quantity: - +

Promac GH-1440K-T Economical Precision Lathe

Promac GH-1440K-T Economical Precision Lathe equipped with digital display panel for X, Y and Z axes All gears running permanently in an oil bath Reversal of direction CCW/CW Automatic longitudinal and traverse feed 1000-027-172 Foot brake with electrical switch Halogen work light Automatic longitudinal and traverse feed Gray cast iron frame for vibration-free machining.


Specifications:

Motor (V/kW) 400/2.2

Center height (mm) 178

Center distance (mm) 1’015

Swing over bed (ø-mm) 356

Swing over carriage (ø-mm) 216

Spindle bore (mm) 38

Morse taper of headstock MT5

Spindle taper CAMLOCK D1-4 (DIN 55029)

Gear ranges 12

Speed range (min-1) 40 1’800

Cross slide, stroke (mm) 162 Top slide, stroke (mm) 89

Number of threads 22

Range of metric threads (mm) 0.4 7.0

Range of inch threads (TPI) 4 56

Longitudinal feed (mm/U) 0.04 0.6

Morse taper of tailstock MT3

Morse taper of tailstock, stroke (mm) 120

Max. tool size (mm) 10

3-jaw chuck (mm) 160

Bed width (mm) 260

Dimensions (mm) 1’873× 750×1’200

Weight (kg) 945


MPNGH-1440K-T
BRANDPromac
WEIGHT945 kgs
ConditionNew
