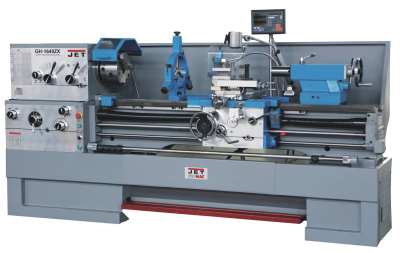

Promac GH-1640ZX-T-QC Precision Lathe

Promac GH-1640ZX-T-QC Precision Lathe

Stock Code: GH-1640ZX-T-QC
MPN: GH-1640ZX-T-QC
£17,987.38 (exc VAT) per 1
£21,584.85 (inc VAT)
Quantity: - +

Promac GH-1640ZX-T-QC Precision Lathe

Promac GH-1640ZX-T-QC Precision Lathe equipped with monitoring function for 3 axes (X, Y, Z) Prismatic frame made of grey-cast iron, induction hardened Reversal of direction CCW/CW Automatic longitudinal and traverse feed Foot brake with electrical switch Incl. emergency stop switch.


Specifications:

Motor (V/kW) 400/5.5

Center height (mm) 200

Center distance (mm) 1’015

Swing over bed (ø-mm) 406

Swing over carriage (ø-mm) 254

Spindle bore (mm) 80

Morse taper of headstock MT7

Spindle taper CAMLOCK D1-8 (DIN 55029)

Gear ranges 12

Speed range (min-1) 25 1’800

Cross slide, stroke (mm) 228 Top slide, stroke (mm) 130

Range of metric threads (mm) 0.5 20.0

Range of inch threads (TPI) 75 15/8

Longitudinal feed (mm/U) 0.038 2.3

Crossfeed (mm/U) 0.015 0.9

Morse taper of tailstock MT4

Morse taper of tailstock, stroke (mm) 124

Max. tool size (mm) 25

3-jaw chuck (mm) 250

Dimensions (mm) 2’462×1’016 ×1’220

Weight (kg) 2’120




MPNGH-1640ZX-T-QC
BRANDPromac
WEIGHT2120 kgs
ConditionNew
