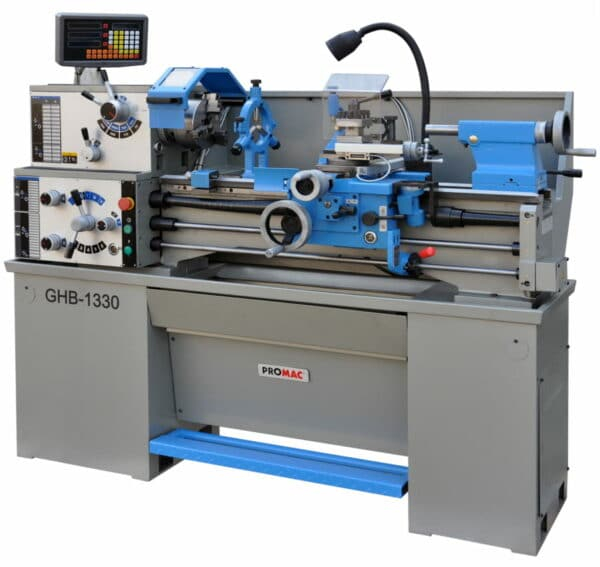

Promac GHB-1330-FT Economical Precision Lathe

Promac GHB-1330-FT Economical Precision Lathe

Stock Code: GHB-1330-FT
MPN: GHB-1330-FT
£6,200.25 (exc VAT) per 1
£7,440.30 (inc VAT)
Quantity: - +

Promac GHB-1330-FT Economical Precision Lathe

Promac GHB-1330-FT Economical Precision Lathe equipped with monitoring function for 3 axes (X, Y, Z) Automatic longitudinal and traverse feed Reversal of direction CCW/CW All gears running permanently in an oil bath.


Specifications:

Motor (V/kW) 400/1.5

Center height (mm) 165

Center distance (mm) 750

Swing over bed (ø-mm) 330

Swing over carriage (ø-mm) 198

Spindle bore (mm) 38

Morse taper of headstock MT5

Spindle taper CAMLOCK D1-4 (DIN 55029)

Gear ranges 8 Speed range (min-1) 70 2’000

Cross slide, stroke (mm) 160

Top slide, stroke (mm) 68

Range of metric threads (mm) 0.45 0.0

Range of inch threads (TPI) 31/4 80

Longitudinal feed (mm/U) 0.052 0.696

Morse taper of tailstock MT3

Morse taper of tailstock, stroke (mm) 105

Max. tool size (mm) 16

3-jaw chuck (mm) 160

Dimensions (mm) 1’650× 760×1’200

Weight (kg) 610

MPNGHB-1330-FT
BRANDPromac
WEIGHT610 kgs
ConditionNew
