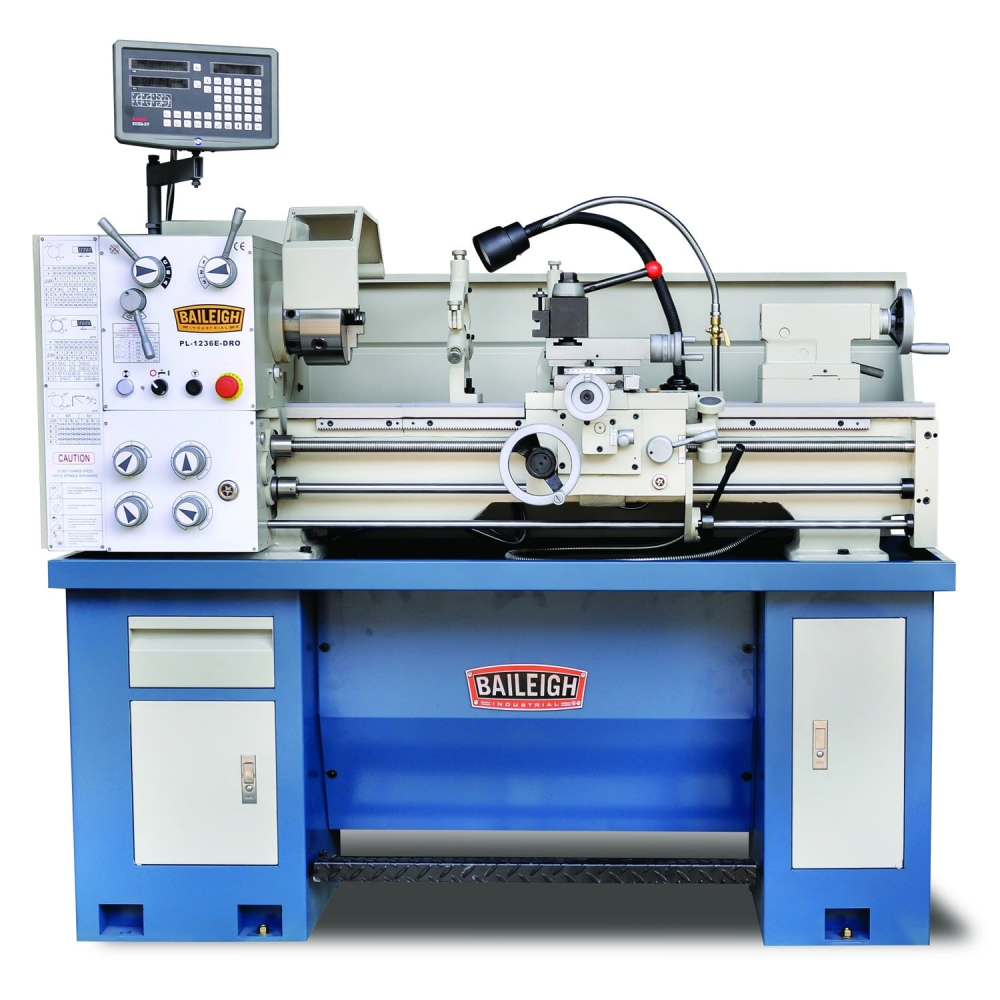

Baileigh PL-1236E-DRO Economical Precision Lathe

Stock Code: PL-1236E-DRO
MPN: PL-1236E-DRO

Descriptions

Baileigh PL-1236E-DRO Economical Precision Lathe.

With the same working base as the versatile PL-1236E lathe, the PL-1236E-DRO take the platform one step further by adding an industrial grade digital readout system for improved accuracy and efficiency. But the PL-1236E-DRO is still a great metal lathe for anyone that is looking an economical lathe that is high in quality and easy to use.

Powered by 220v single phase the Baileigh Industrial PL-1236E-DRO allows the operator to choose what voltage will suit their needs the best. Because of its versatile voltage options as well as the integrated digital readout, the PL-1236E-DRO is the perfect choice for small fabricators, schools, or garages.

The PL-1236E-DRO has an easy to use gear system that allows for taping, turning, and polishing with a range of 9 speeds from 70 to 1400 RPM. To ensure that all cuts are precise, all ways are ground and hardened to ensure long life. They also have adjustable gibs to make sure they slide as free as possible with no binding.

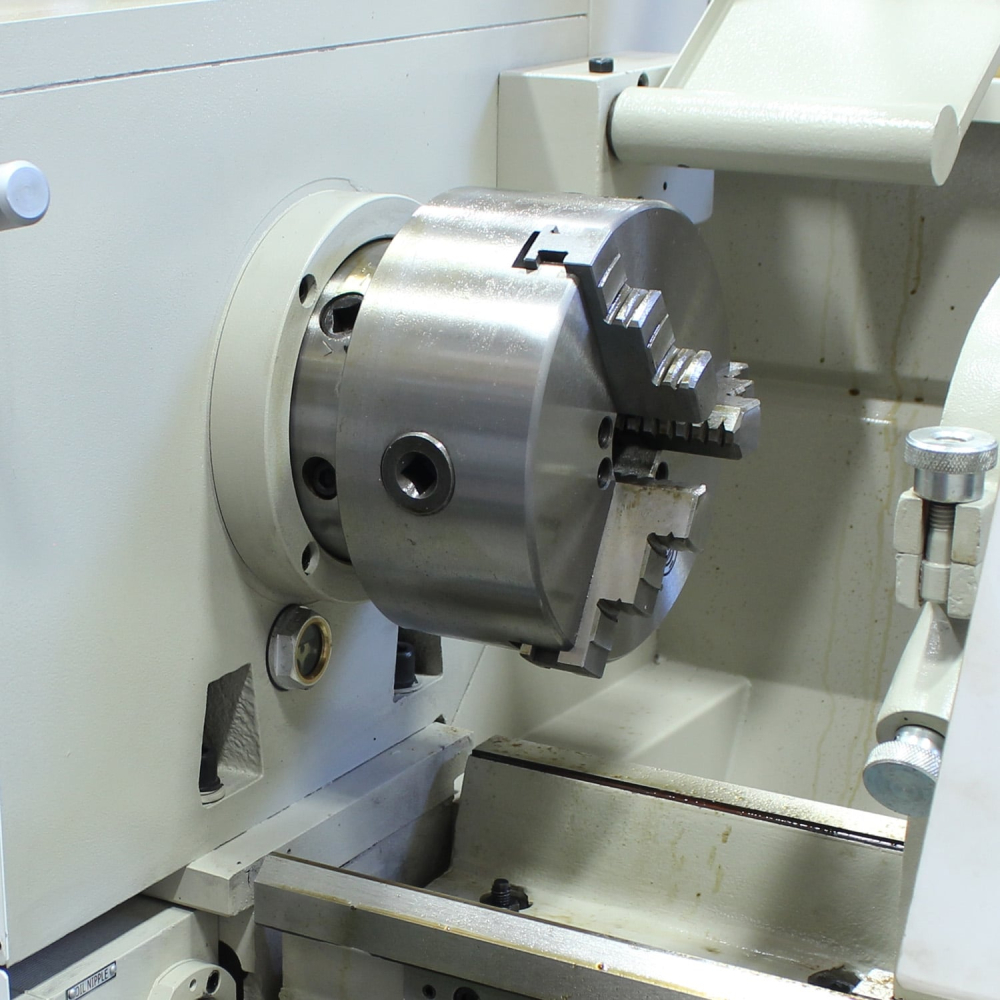

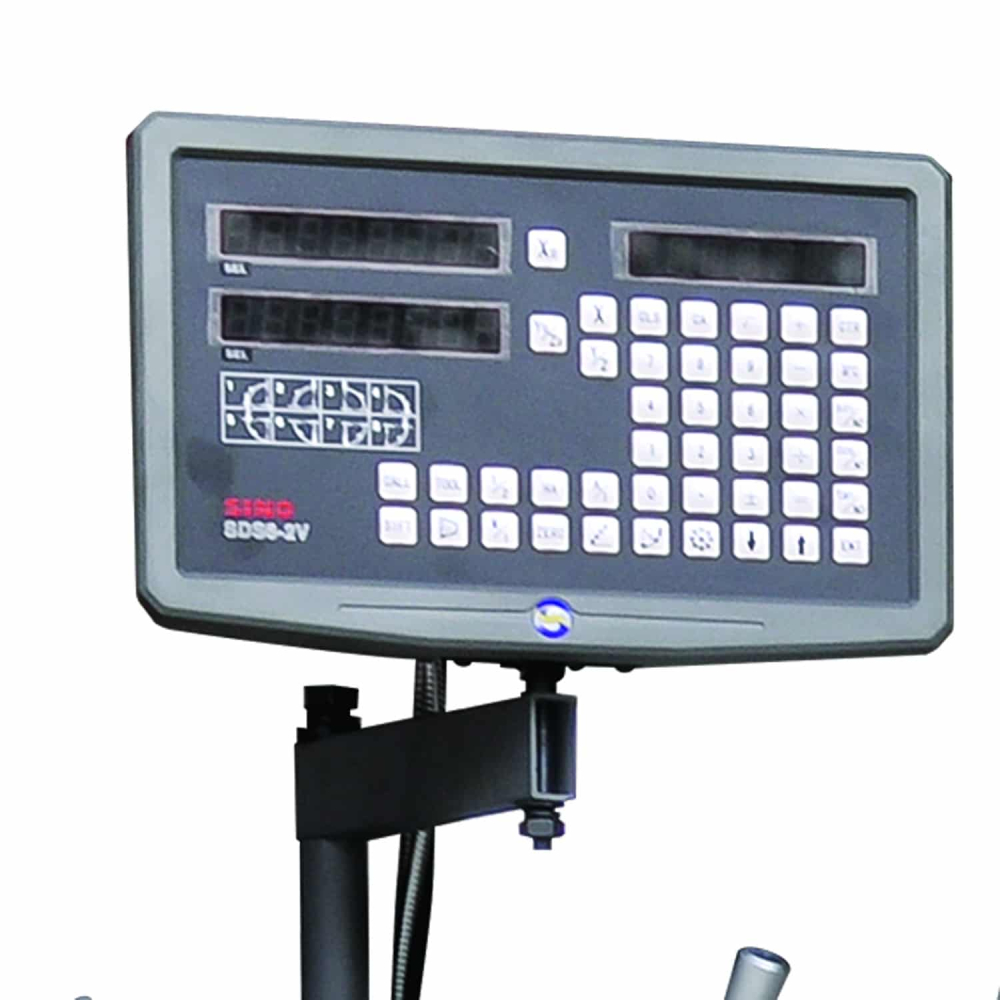

The PL-1236E-DRO lathe is packed with feature that make this a winning lathe, these features include, digital read out, three and four jaw chucks, steady rest, follow rest, face plate, foot brake, coolant system, and halogen work light.

Specifications:

Item Number PL-1236E-DRO

Sleeve Travel 101 mm

Spindle Bore 38 mm

Spindle Bore Taper Morse #6

Sleeve Taper Morse #4

Sleeve Diameter 32 mm

Metric Thread Range 0.4 7 mm

Spindle Nose D1 – 102 mm

Travel Of Cross Slide 135 mm

Travel Of Top Slide 83 mm

Wire Grooves 181 mm
