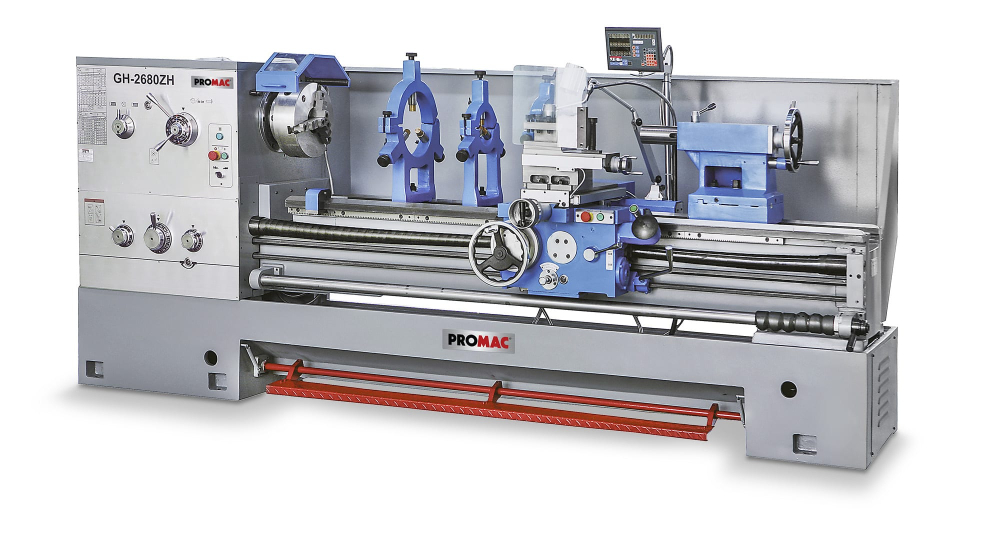

Promac GH-2060ZH-T-QC Precision Lathe

Promac GH-2060ZH-T-QC Precision Lathe

Stock Code: GH-2060ZH-T-QC
MPN: GH-2060ZH-T-QC
£21,270.38 (exc VAT) per 1
£25,524.45 (inc VAT)
Quantity: - +

Promac GH-2060ZH-T-QC Precision Lathe

Promac GH-2060ZH-T-QC Precision Lathe prismatic frame made of grey-cast iron, induction hardened Smooth start Hardened and ground gears Equipped with monitoring function for 3 axes (X, Y, Z) Incl. emergency stop switch.


Specifications:

Motor (V/kW) 400/7.5

Center height (mm) 250

Center distance (mm) 1’530

Swing over bed (ø-mm) 500

Swing over carriage (ø-mm) 720

Spindle bore (mm) 80

Morse taper of headstock MT7

Spindle taper CAMLOCK D1-8 (DIN 55029)

Speed range (min-1) 9 1’600

Cross slide, stroke (mm) 310

Top slide, stroke (mm) 145

Range of metric threads (mm) 1.0 224

Longitudinal feed (mm/U) 0.063 6.43

Crossfeed (mm/U) 0.027 2.73

Morse taper of tailstock MT5

Max. tool size (mm) 32

3-jaw chuck (mm) 250

Dimensions (mm) 2’500×1’280 ×1’300

Weight (kg) 3’000





MPNGH-2060ZH-T-QC
BRANDPromac
WEIGHT3000 kgs
ConditionNew
