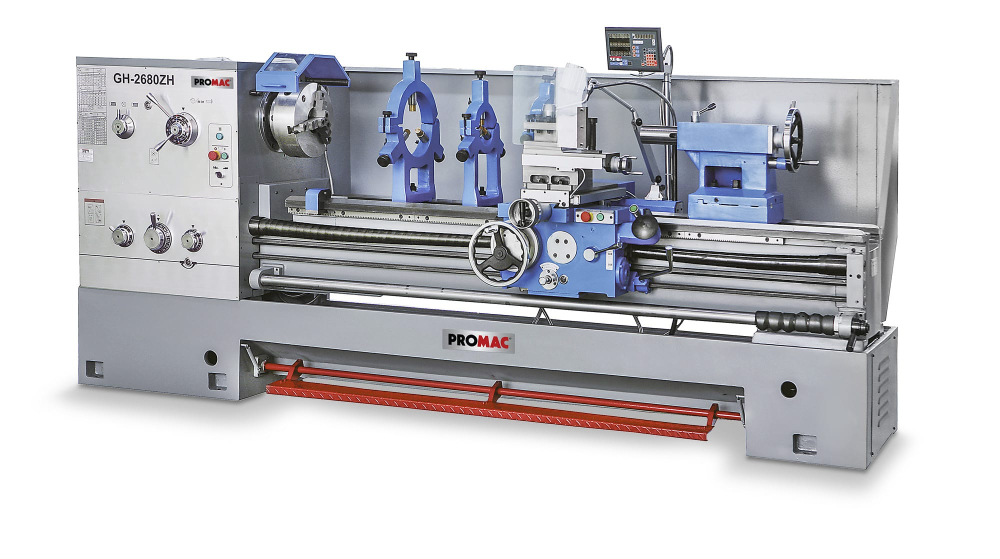

Promac GH-2680ZH-T-QC Precision Lathe

Stock Code: GH-2680ZH-T-QC
MPN: GH-2680ZH-T-QC

Descriptions

Promac GH-2680ZH-T-QC Precision Lathe equipped with monitoring function for 3 axes (X, Y, Z) Headstock with mechanical coupling for smooth speed change Smooth start goes easy on the motor and reduces wear of reducer and belts 1000-002-683 Prismatic frame made of grey-cast iron, induction hardened All gears running permanently in an oil bath Reversal of direction CCW/CW Automatic longitudinal and traverse feed Incl. emergency stop switch.

Specifications:

Motor (V/kW) 400/7.5

Center height (mm) 330

Center distance (mm) 2’030

Swing over bed (ø-mm) 660

Swing over carriage (ø-mm) 420

Spindle bore (mm) 105

Morse taper of headstock MT7

Spindle taper CAMLOCK D1-8 (DIN 55029)

Speed range (min-1) 36 1’600

Cross slide, stroke (mm) 310
