Promac BD_3-M Lathe

Promac BD_3-M Lathe

Stock Code: BD_3-M
MPN: BD_3-M
£498.75 (exc VAT) per 1
£598.50 (inc VAT)
Quantity: - +

Promac BD_3-M Lathe

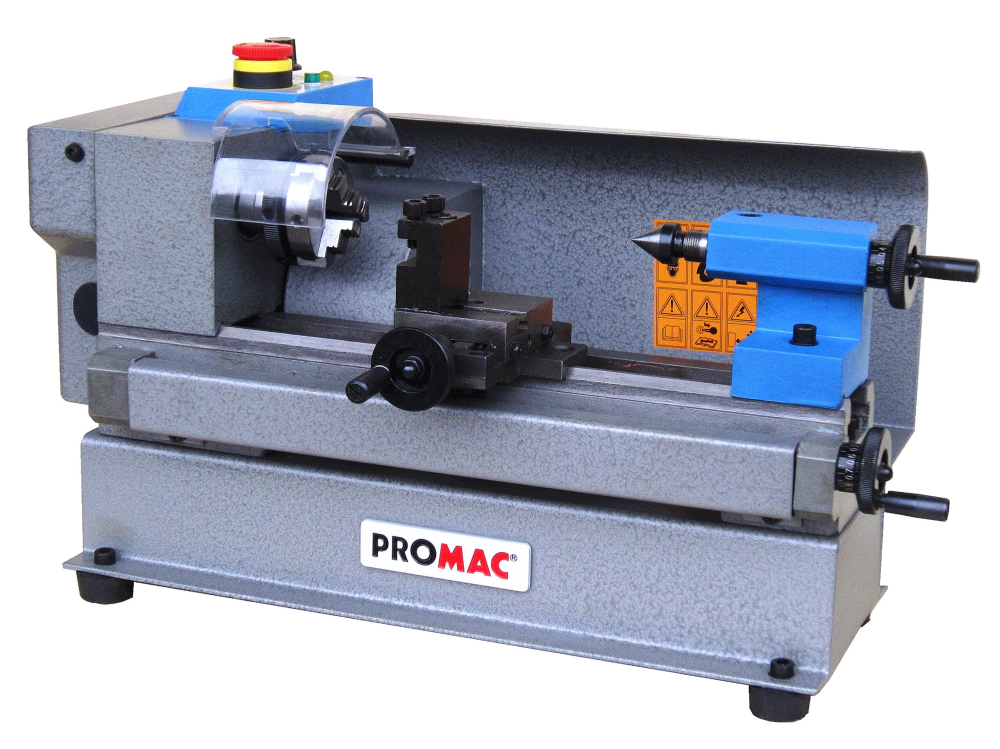

Promac BD_3-M Lathe electronic variable speed control, Gray cast iron frame for vibration-free machining, Ground bed guide, Cross slide with adjustable guides, Lathe chuck protection and emergency stop switch.


Specifications:

Motor (V/kW) 230/0.15

Center height (mm) 50

Center distance (mm) 150

Swing over bed (ø-mm) 100

Swing over carriage (ø-mm) 50

Spindle bore (mm) 10

Speed range (min-1) 100 3’800 variable

Cross slide stroke (mm) 50

Lead screw (ø-mm) 10

Lead screw thread pitch (mm) 1

Morse taper of tailstock stroke (mm) 23

Max. tool size (mm) 10

3-jaw chuck (mm) 50

Dimensions (mm) 440×270×210

Weight (kg) 13

MPNBD_3-M
BRANDPromac
WEIGHT13 kgs
ConditionNew
