Baileigh PL-1860E Economical Precision Lathe

Baileigh PL-1860E Economical Precision Lathe.

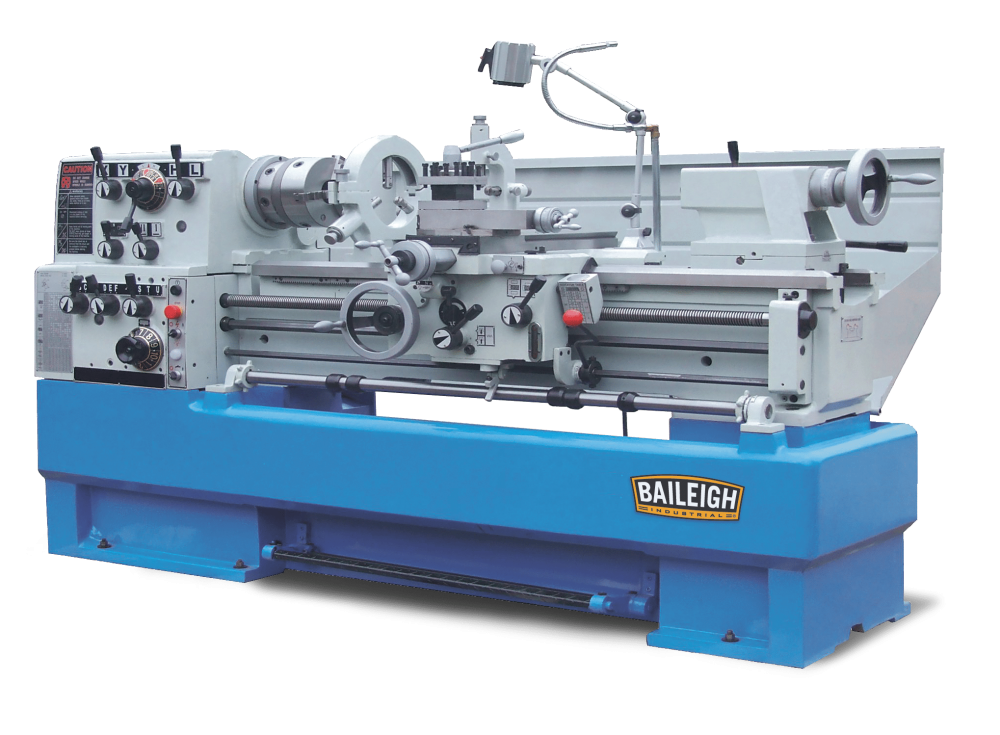

If you are looking for a large tool room lathe at a good price, take a look at the Baileigh Industrial PL-1860E metal lathe. The PL-1860E has a 18 swing and 60 bed and operates on 220 volt three phase power. This is the perfect lathe for those small shops or schools that need large capacity but are on a budget. But just because it is sold at a lower price doesn't mean that is without features.

The PL-1860E is made just like all of our other metal lathes with only the best components. The massive fully cast base is built to stand up to years of use and gives great support to the main frame of the machine. All of the ways are precision ground, hardened, and then polished to ensure smooth movement. The bed is cross-ribbed for added strength and stability as well. And with 12 spindle speeds to chose from the PL-1860E has the perfect rpm for whatever you are cutting.

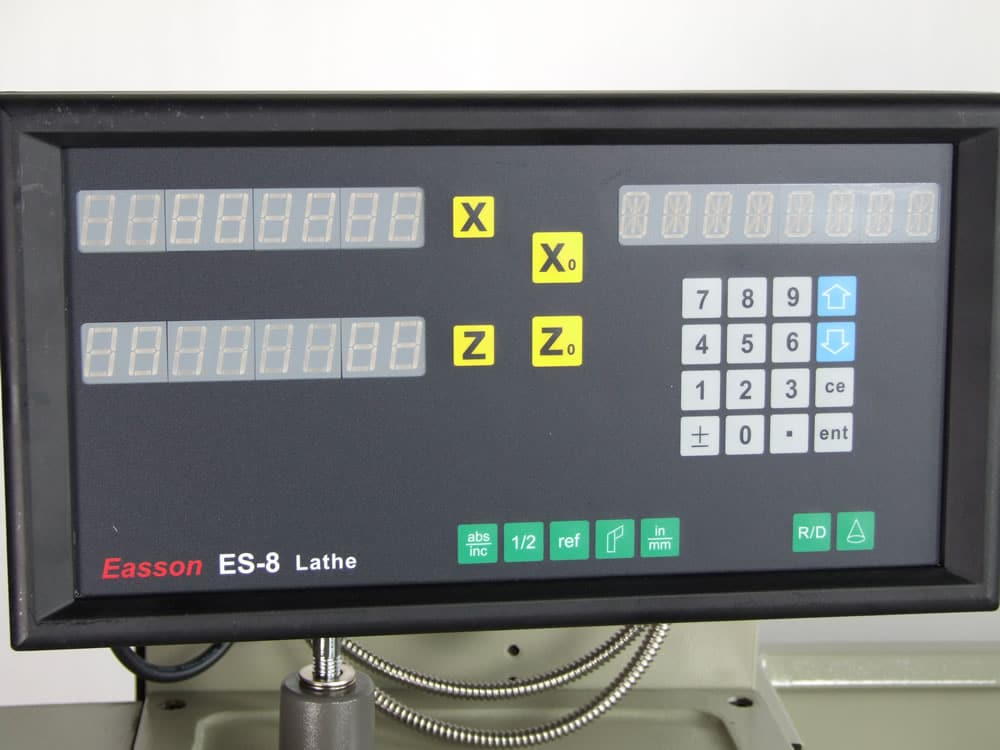

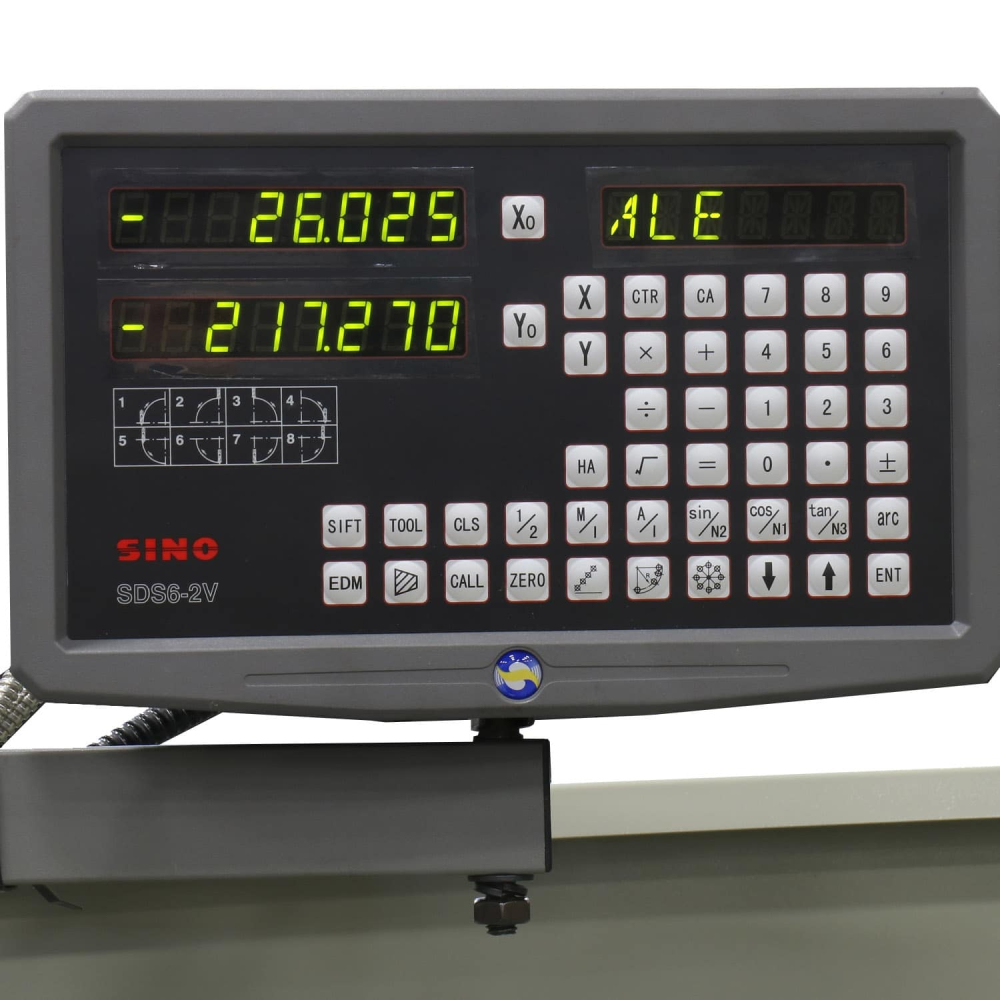

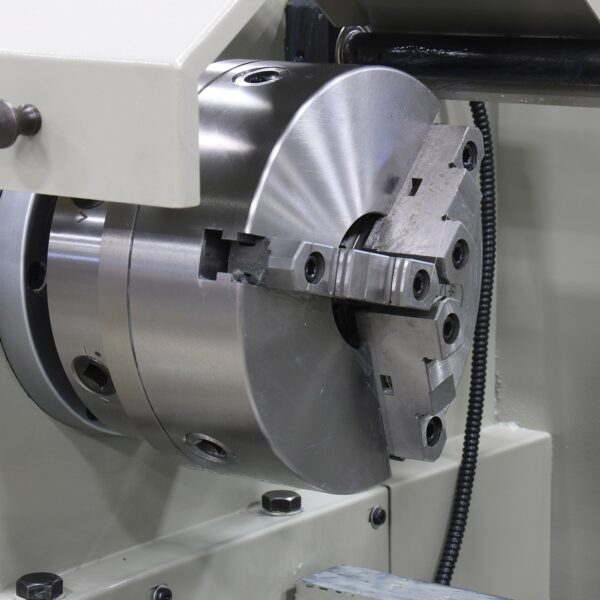

The PL-1860E metal working lathe includes many features not found on other machines in this price category. Things like the 2 Axis digital readout system, 8″ 3-jaw universal chuck, 13 four jaw chuck, 8″ back plate, coolant system, steady rest, follow rest, headstock chuck guard with micro switch, Rear Splash Guard, and halogen work light are all included.


Specifications:

Item Number PL-1860E

Speed Range 25 – 2000 rpm

Cross Feed Metric (qty / type) 17220

Longitudinal Feed Metric (qty / type) 42 / .033-1.7 mm / rev.

Longitudinal Feed Imperial (qty / type) 42 / .0011″ – .0633″ / rev.

Speed Number 12

Spindle Bore 58 mm

Motor 7.5 hp

Spindle Nose D1-6″

Threads Diametrical Qty Type 50 / 4-112 D.P

Threads Imperial Qty Type 60 / 2-112 T.P.I

Threads Metric Qty Type 41 / .1-14 mm Pitch

Threads Module Qty Type 34 / .1-7 M.P

Spindle Taper Sleeve Morse #4

Spindle Taper Nose Morse #6

Tailstock Quill Dia 60 mm

Tailstock Quill Taper Morse #4

Tailstock Quill Travel 120 mm

Compound Rest Travel 120 mm

Center Length 1530 mm

Bed Width 300 mm

Main Motor 7.5 hp

Lead Screw Diameter 32 mm

Max. Swing In Gap Length 155 mm

Max. Swing Over Bed 460 mm

Max. Swing Over Cross Slide 274 mm

Max. Swing In Gap Dia 690 mm

Motor Coolant 1/8 hp

Cross Feeds Imperial Qty Speed 42 / .00033″-.01837″ / rev.

Cross Slide Travel 230 mm

Power 400 volt three phase

Shipping Weight 2385 kgs.

Shipping Dimensions (Inches) 2720 x 1040 x 1370 mm

MPNPL-1860E
BRANDBaileigh
WEIGHT2385 kgs
ConditionNew
