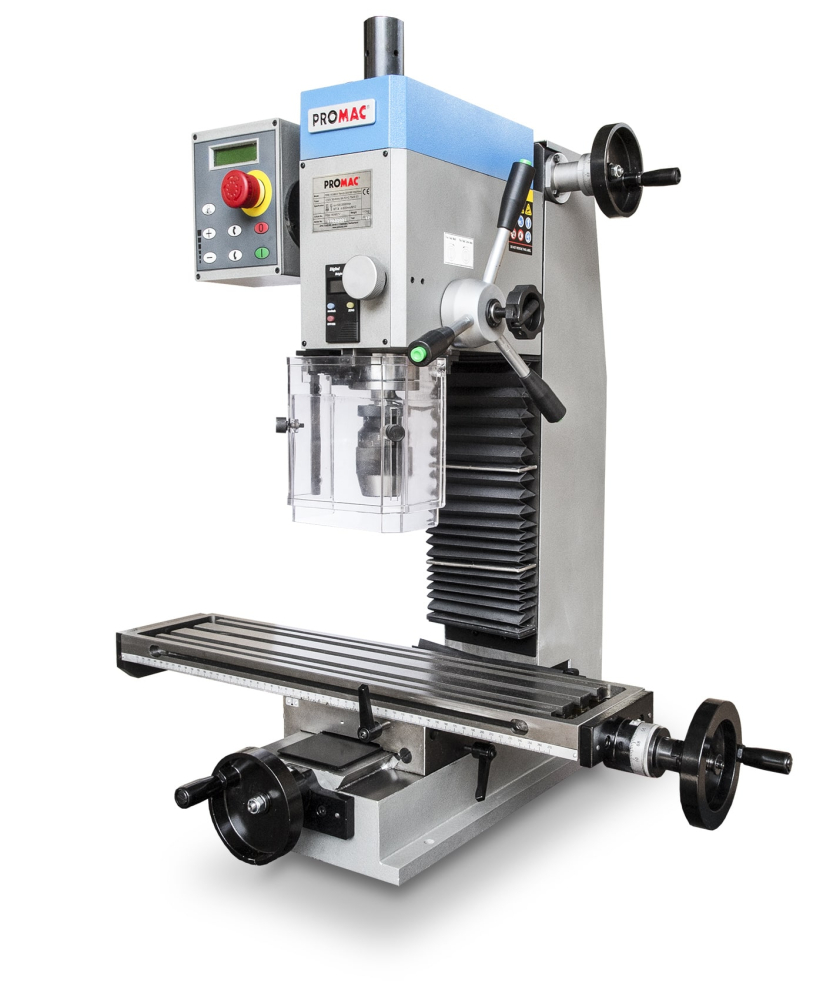

Promac PBM-1839BDV Vertical Mill Drill

Promac PBM-1839BDV Vertical Mill Drill

Stock Code: PBM-1839BDV
MPN: PBM-1839BDV
£2,483.25 (exc VAT) per 1
£2,979.90 (inc VAT)
Quantity: - +

Promac PBM-1839BDV Vertical Mill Drill

Powerful, smooth, brushless DC motor with variable speed control Digital display of the drilling or milling depth Electronically switchable thread cutting device Variable rotation speed of the spindle Large work table 700×160mm Chuck protection and emergency stop button Solid, vibration-damping cast iron case (GG-20).

  • 230v Single phase 0,75kw motor
  • Cutting capacity for steel 20mm
  • Speed range 100-2,000rpm
  • Table Dimensions 700 x 160mm

Specifications

  • Motor (V/kW) 230/0.75
  • Morse taper MT3
  • Cutting capacity for steel (ø-mm) 20
  • Spindle stroke (mm) 70
  • Max. milling plan/groove cutter (mm) 50/16
  • Speed range (min-1) 100–2’000 variable
  • X axis, longitudinal stroke (mm) 400
  • Y axis, transverse stroke (mm) 190
  • Z axis, vertical stroke (mm) 290
  • Tapping capacity max. M12
  • Spindle taper (mm) 370
  • Throat (mm) 190
  • Table dimensions (mm) 700×160
  • T-Slot width (mm) 12
  • Weight (kg) 110
MPNPBM-1839BDV
BRANDPromac
WEIGHT110kgs
ConditionNew
