Baileigh BSV-12 Vertical Bandsaw
Baileigh BSV-12 Vertical Bandsaw
Baileigh BSV-12 Vertical Bandsaw
Baileigh BSV-12 Vertical Bandsaw
Baileigh BSV-12 Vertical Bandsaw

Baileigh BSV-12 Vertical Bandsaw

Stock Code: BSV-12
MPN: BSV-12
£4,135.25 (exc VAT) per 1
£4,962.30 (inc VAT)
Quantity: - +

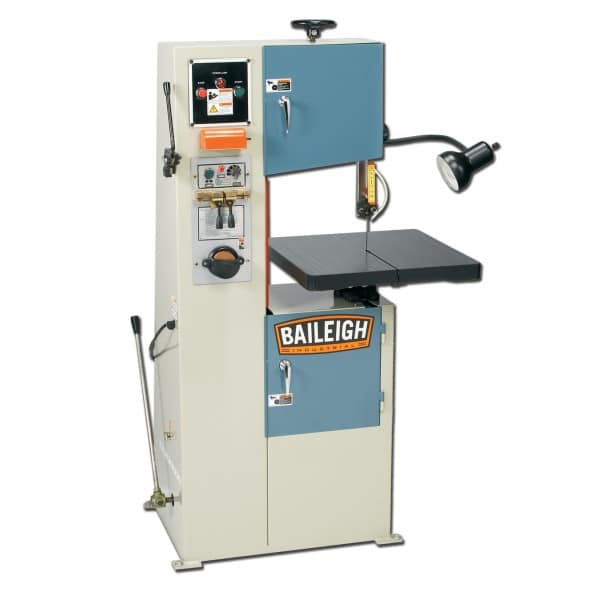

The the BSV-12 from Baileigh Industrial is be the perfect addition to any shop. The BSV-12 is small in footprint, but does not skip on features, and is built to the same high quality standards as the rest of Baileigh Industrial's vertical bandsaw line. The BSV-12 has a fully welded frame and industrial grade components.

The BSV-12 vertical bandsaw features a 11-3/8 throat depth and a 7-3/4 material opening. The table (483mm – 483mm) also pivots 10° front to back and 15° left to right.

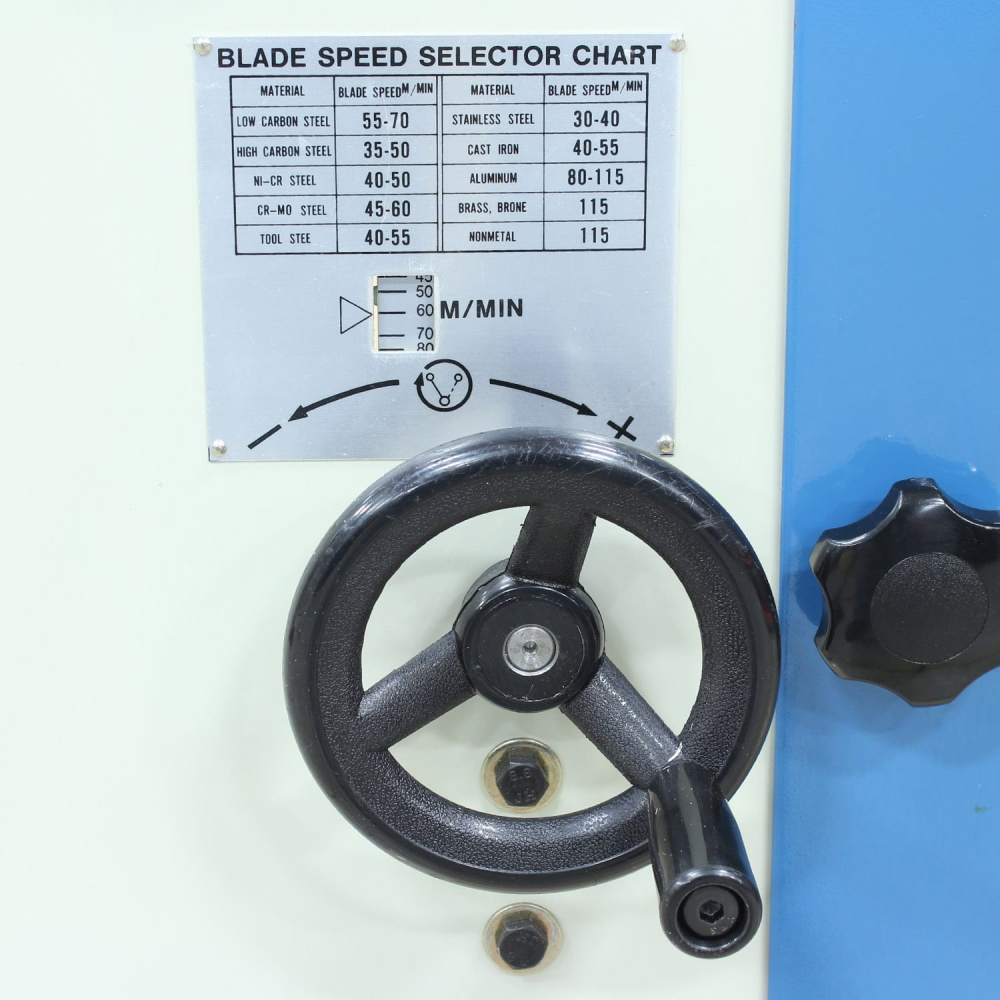

The BSV-12 has 4 operating speeds ranging from 80rpm to 319rpm and a heavy-duty 1/2hp (.4 kw) motor that operates on 220 volt, 50hz, single phase power.

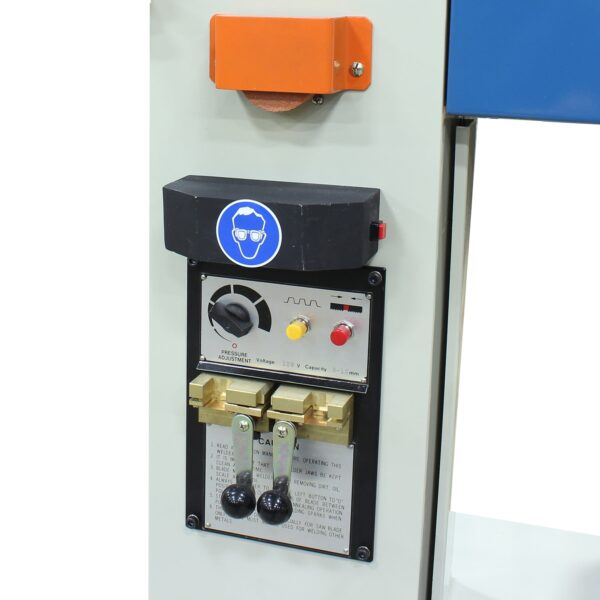

When designing the BSV-12 Baileigh Industrial wanted to accommodate most of the popular blade widths ranging from 6 -3mm (1/4 to 1/2), allowing even the most intricate cuts. A blade welder is also included for when you need to get to a middle cut on a project.

  • 6mm – 13mm blade width
  • 196mm maximum thickness
  • 289mm throat depth

Specifications

Item Number BSV-12
Country of Manufacture Taiwan
Table Size 501 mm x 501 mm
Butt-Welder Capacity (Blade Width) 17164
Welder Capacity .51″
Slant of Table 10° F x Rear
Motor .5 hp
Maximum Thickness 196 mm
Throat Depth 289 mm
Blade Length 2550 mm
Blade Speed 81 319 rpm
Blade Thickness .8 mm
Power 220V, 50Hz, 1-Phase
Shipping Weight 200 kgs.
Shipping Dimensions (Inches) 914 x 686 x 1549 mm

MPNBSV-12
BRANDBaileigh
WEIGHT200kgs
ConditionNew
