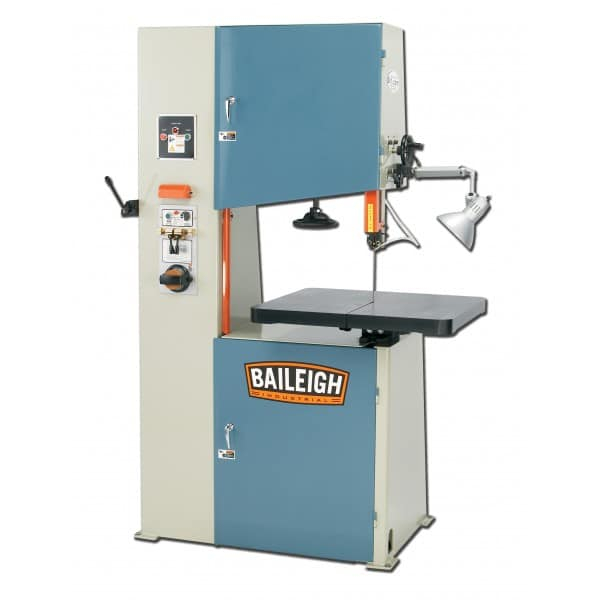

Baileigh BSV-24 Vertical Bandsaw

Stock Code: BSV-24
MPN: BSV-24

Descriptions

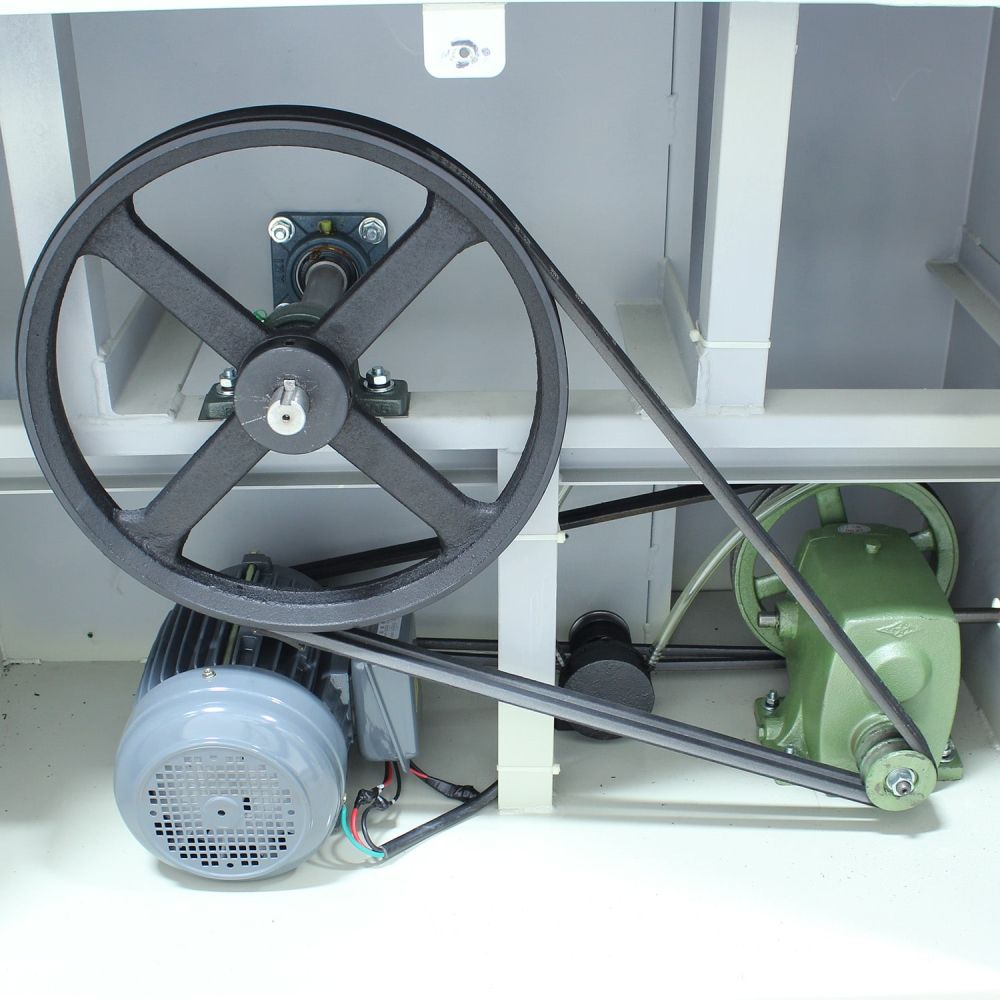

Looking for a vertical bandsaw with a large throat depth for those bigger projects? Then the BSV-24 vertical bandsaw from Baileigh Industrial might be the perfect choice. This heavy-duty bandsaw will offer years of service in any fabrication shop because of its heavy-duty construction and high quality components. The heavy-duty gearbox on the BSV-24 has 4 operating speeds, ranging from 80rpm to 318rpm, and a robust 2hp motor that operates on 220 volt, 50hz single phase power. The BSV-24 is built to last.

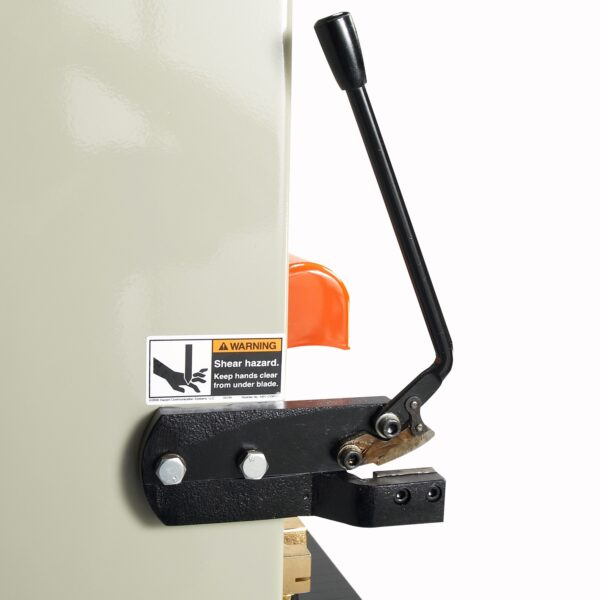

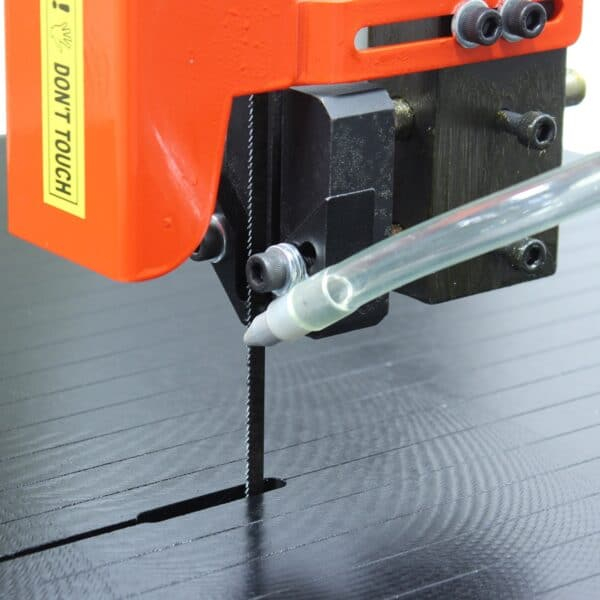

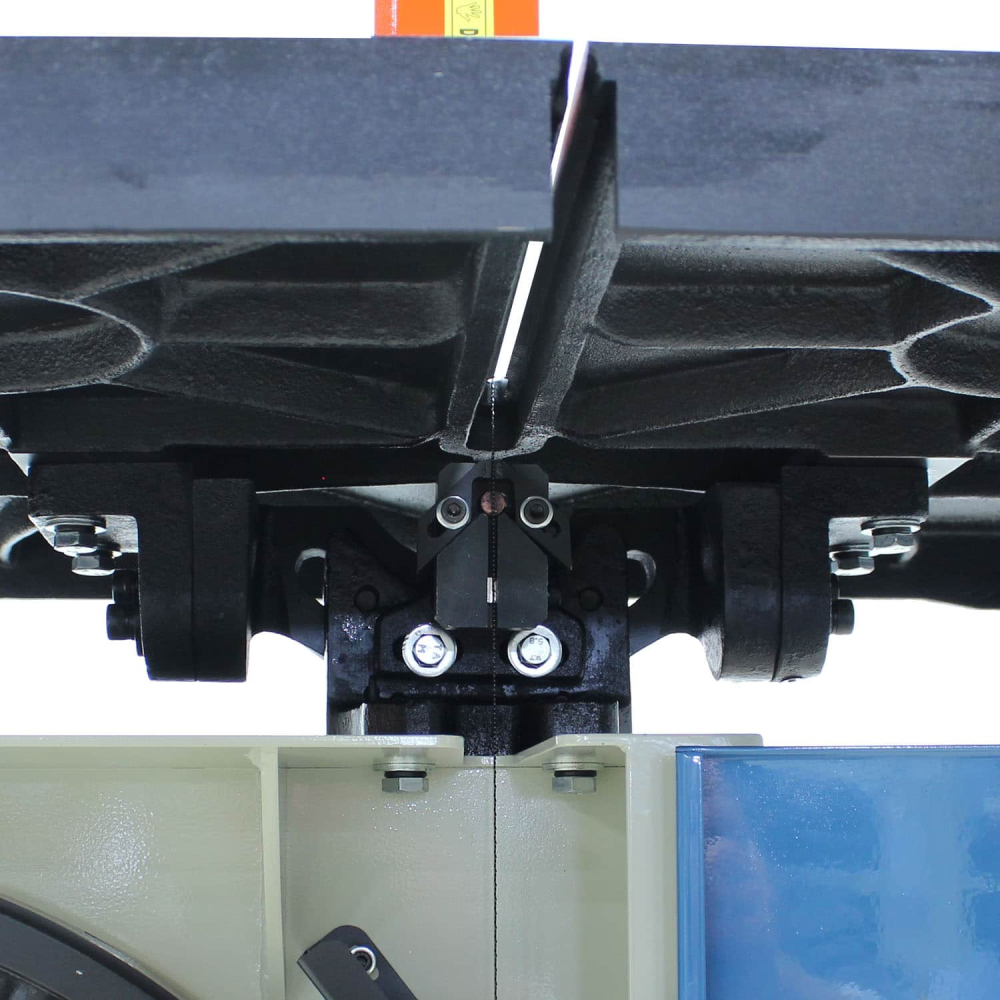

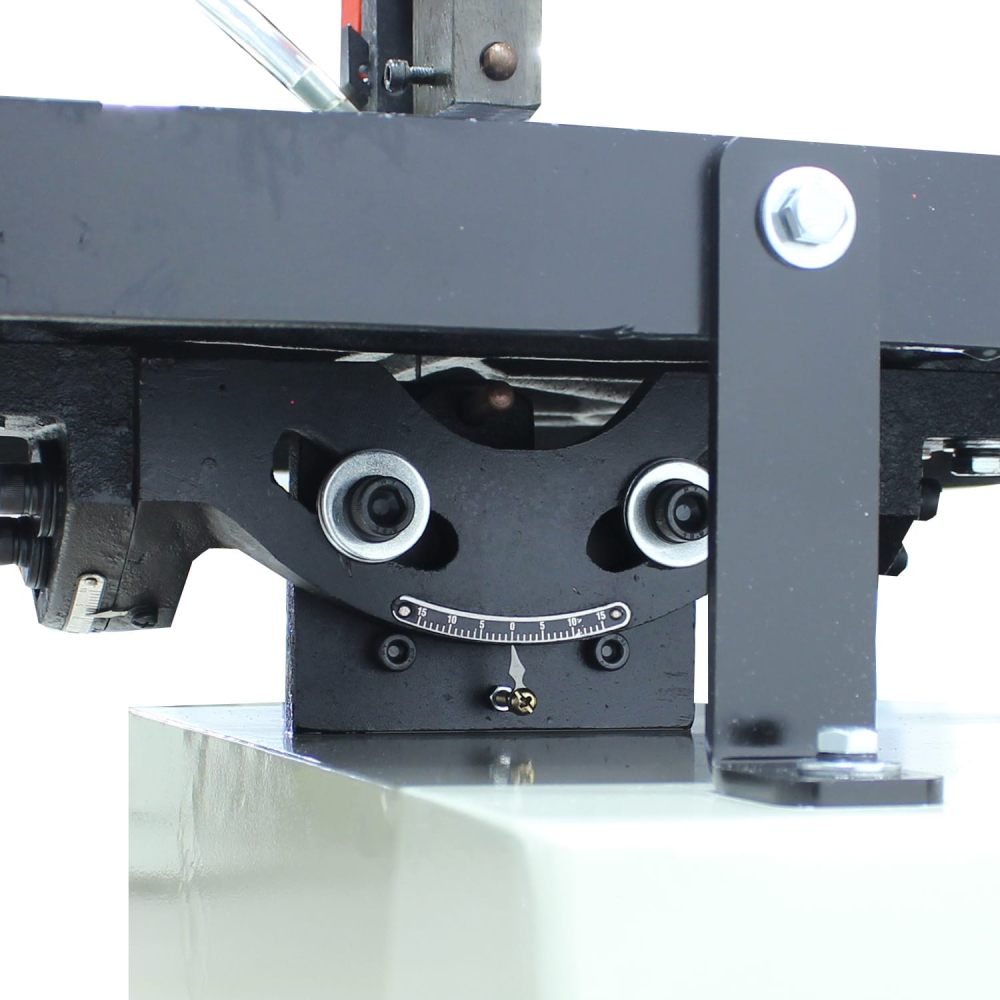

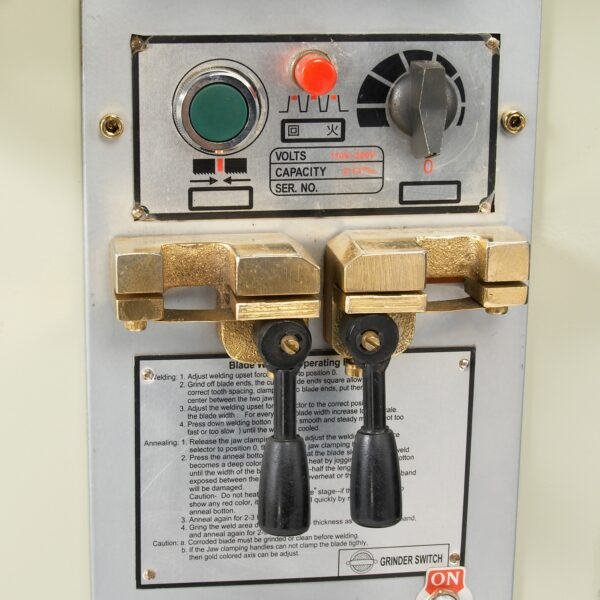

Baileigh Industrial designed the BSV-24 to accept most of the popular blade widths ranging from 6mm to 19mm, and included a blade welder for when you need to get to the middle of a cut on a project. The BSV-24 vertical bandsaw features a 582mm throat depth and a 337mm material opening. The 610mm x 559mm oversized table also pivots 10° front to back and 15° left to right. Other nice features of the BSV-24 are its easy access front panels for blade alignment, fully sealed ball bearing guides, and its bright worklight to see exactly where the cut is.

6mm – 19mm blade width
336mm maximum thickness
581mm throat depth

Specifications

Item Number BSV-24
Country of Manufacture Taiwan
Table Size 620 mm x 579 mm
Butt-Welder Capacity (Blade Width) 17147
Welder Capacity .74″
Slant of Table 10° F x Rear
Motor 3 hp
Maximum Thickness 336 mm
Throat Depth 581 mm
Blade Length 4260 mm
Blade Speed 81 318 rpm
Blade Thickness .8 mm
Power 220V
Shipping Weight 650 kgs.
Shipping Dimensions (Inches) 1345 x 940 x 2083 mm

Specifications

MPN	BSV-24
BRAND	Baileigh
WEIGHT	650kgs
Condition	New
