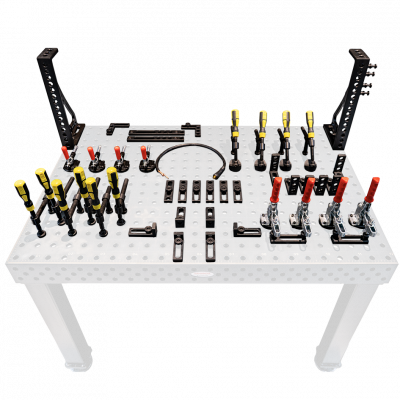

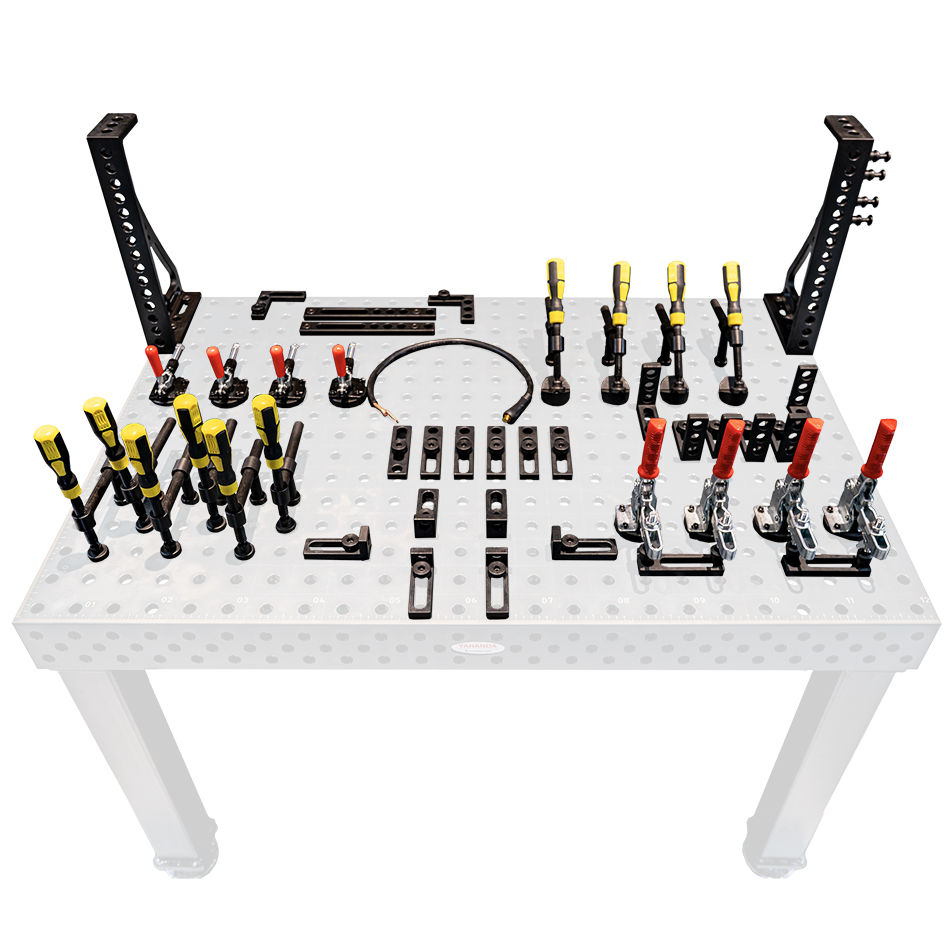

YAHANDA D16 Welding Table Accessory Package 81-Piece (Kit 2)

Stock Code: WTYD16KIT2
MPN: D16KIT2

Descriptions

The YAHANDA D16 Welding Table Accessory Package (Kit 2) from Wasp Supplies store is an 81-piece set of modular fixturing parts for D16 system welding tables, which use 16 mm holes. It includes supporting angles, locating angles and bars, V-blocks, squares, clamps and locking bolts for building and holding fixtures on the table.

The parts in this kit are for D16 (16 mm) system tables. For D28 tables, choose the D28 version of this kit.

Kit contents (81 pieces)

1 × Supporting Angle (Left)
1 × Supporting Angle (Right)
6 × Type B Locating Angle
6 × Type C Locating Angle
8 × Type C Locating Bar
2 × Type F Locating Bar
4 × Type A V-Block
6 × Type A Telescopic Clamp
4 × Type A 45° Inclinable Clamp
2 × Type A Plain Square
4 × Type A Horizontal Toggle Clamp
4 × Type A Vertical Toggle Clamp
20 × Type A Quick Locking Bolt
8 × Type A Countersunk Locking Bolt
4 × Type A Magnetic Locking Bolt
1 × Ground Connector

Q: What exactly is the Yahanda D16 Kit 2?
A: It is a comprehensive 81-piece precision-engineered modular fixturing and accessory kit designed to complement D16 welding table systems.

Q: What material are the Yahanda welding tables produced from ?

A: They are produced from 2311 tool steel that has a Plasma Nitride finish and a Hardness of HV450-550 (Vickers Hardness Scale)

Q: How can you protect a Yahanda Welding table from getting damaged

A: The plasma nitride surface finish is designed to protect the table against wear, corrosion, abrasion and scratching while reducing weld spatter adhesion.

Q: Does this package include the actual welding table?
A: No. It is an accessory/fixture kit only; the welding table itself is sold separately.

Q: What specific hole size and grid dimensions is it compatible with?
A: It is strictly designed for modular welding tables utilizing a 16 mm hole grid with a 50 x 50 mm hole spacing.

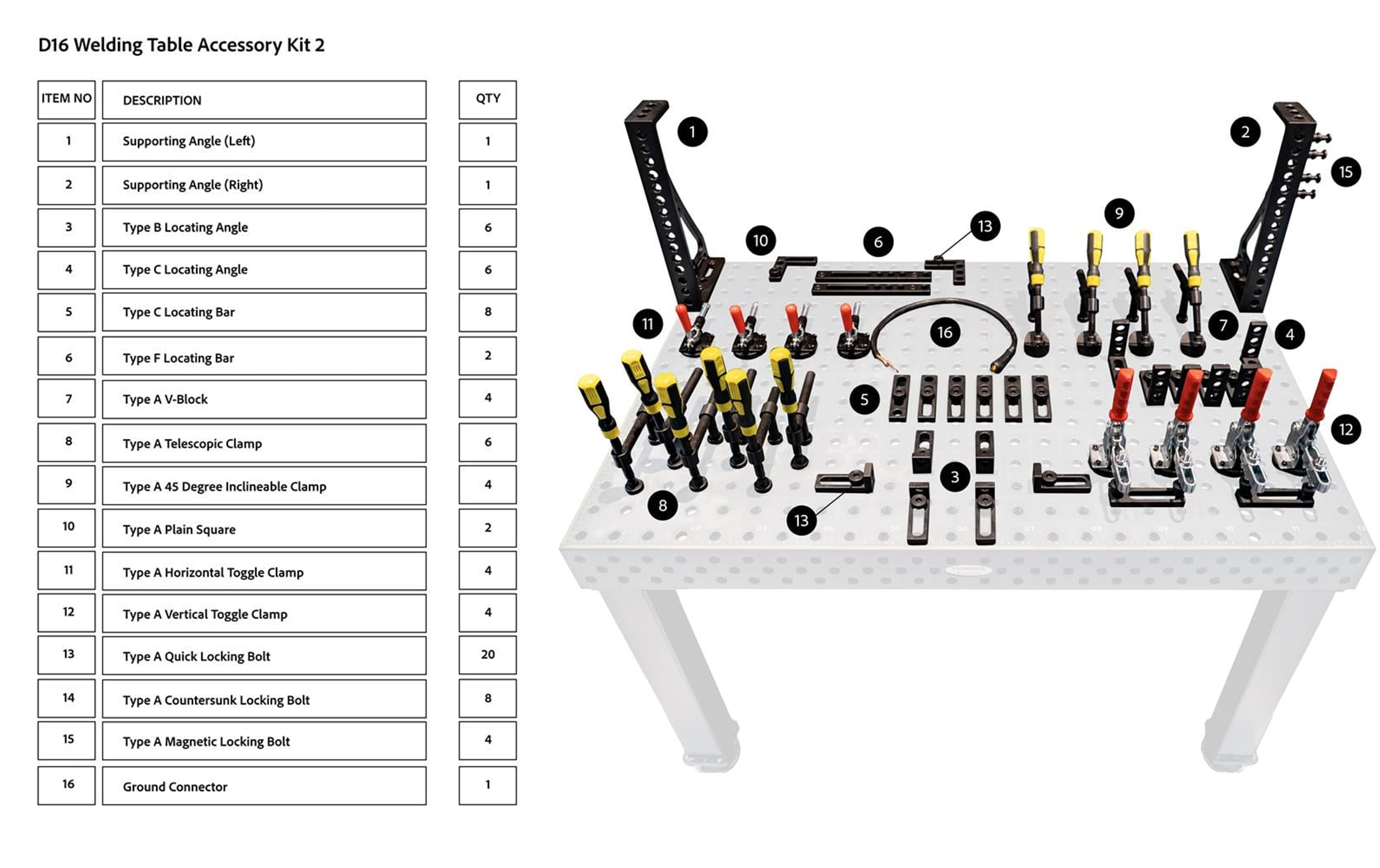

Q: What items are included in the 81-piece kit?
A: The breakdown of components consists of the following: [1]

Supporting Angles: 1 x Left, 1 x Right
Locating Angles: 6 x Type B, 6 x Type C
Locating Bars: 8 x Type C, 2 x Type F
V-Blocks: 4 x Type A
Clamps: 6 x Type A Telescopic, 4 x Type A 45° Inclinable
Toggle Clamps: 4 x Type A Horizontal, 4 x Type A Vertical
Plain Squares: 2 x Type A
Locking Bolts: 20 x Type A Quick Locking, 8 x Type A Countersunk, 4 x Type A Magnetic
Connectors: 1 x Ground Connector

Q: What are the primary applications for this kit?
A: It is engineered for industrial and professional workshop setups to handle MIG/MAG and TIG welding workflows. It assists in multi-angle steel fabrication, metal frame alignment, and setting up highly repeatable fixtures for batch production.

Q: Where can I buy this Kit Online ?

A: Yahanda Welding Tables and Yahanda table accessories can be purchased from the Wasp Supplies Online store.
