YAHANDA D16-3D Welding Table 1200mm x 800mm x 100mm

Stock Code: WTYD163D1200X800
MPN: YHD16S1208N

Descriptions

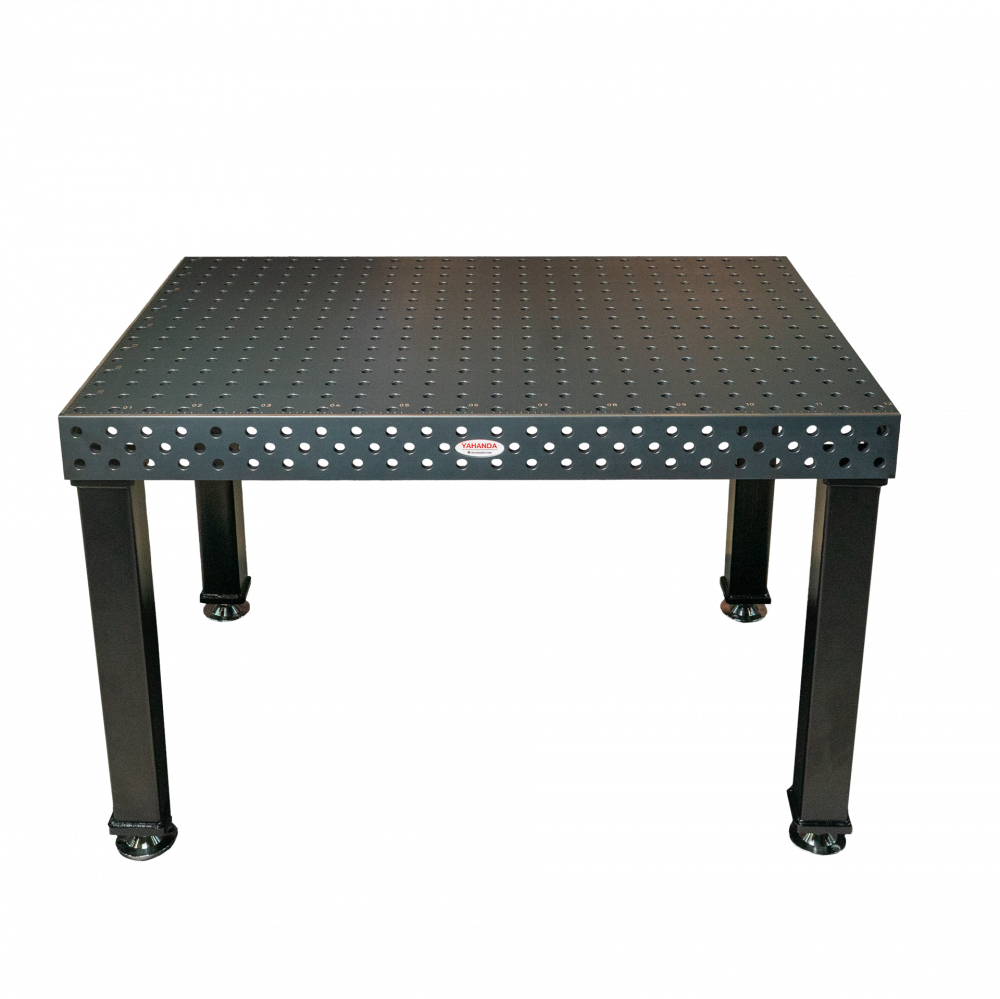

YAHANDA Precision Machined 3D Welding Table Fixture 1200 x 800 x 100mm with 16mm hole pattern.

Enhance precision, efficiency, and repeatability in every welding and fabrication task with our advanced 3D Welding Table Fixture. Designed for professional metalworking and heavy-duty fabrication, this table provides maximum versatility with five fully usable surfaces — one top and four sides — allowing complete freedom for complex setups and multi-angle operations.

Key Features

Five precision working surfaces (1 top + 4 sides) for 3D clamping and positioning versatility
D16 modular system suitable for small and large welding fixtures
Constructed from 2311 tool steel for superior strength and dimensional stability
Plasma nitride surface coating provides exceptional resistance to wear, corrosion, abrasion, and scratching
Hardness rating: HV450–550 (Vickers) for long-lasting durability
Table thickness: 13 mm solid precision-ground plate
Reinforced internal rib design ensures high rigidity and load capacity
Chamfered edges, corners, and boreholes for smooth handling and safety

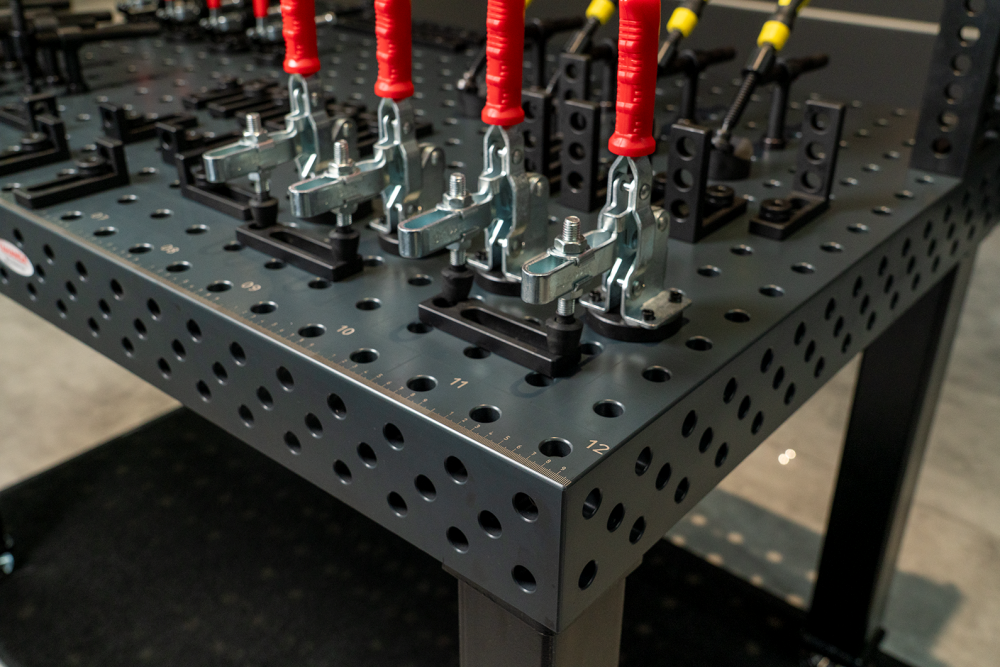

Integrated millimeter measurement scales on two sides for accurate positioning and alignment
D15 grid pattern (50 x 50 mm) — compatible with a wide range of modular accessories
Extensive accessory range for clamps, stops, angles, and locating tools
Available from UK stock (selected sizes only)

Q: What exactly is the Yahanda D16 3D Welding Table 1200 x 800 x 100 mm
A: It is a Hardened steel table for batch production with a length of 1200mm, width 800mm and sides of 100mm

Q: What material are the Yahanda welding tables produced from ?

A: They are produced from 2311 tool steel that has a Plasma Nitride finish and a Hardness of HV450-550 (Vickers Hardness Scale)

Q: How can you protect a Yahanda Welding table from getting damaged

A: The plasma nitride surface finish is designed to protect the table against wear, corrosion, abrasion and scratching while reducing weld spatter adhesion.

Q: Does this package include the actual welding table and accessories ?
A: No the package welding table itself the accessory/fixture kit is sold separately. 81 piece Kit , 111 piece kit

Q: What specific hole size and grid dimensions is it compatible with?
A: It is strictly designed for modular welding tables utilizing a 16 mm hole grid with a 50 x 50 mm hole spacing.

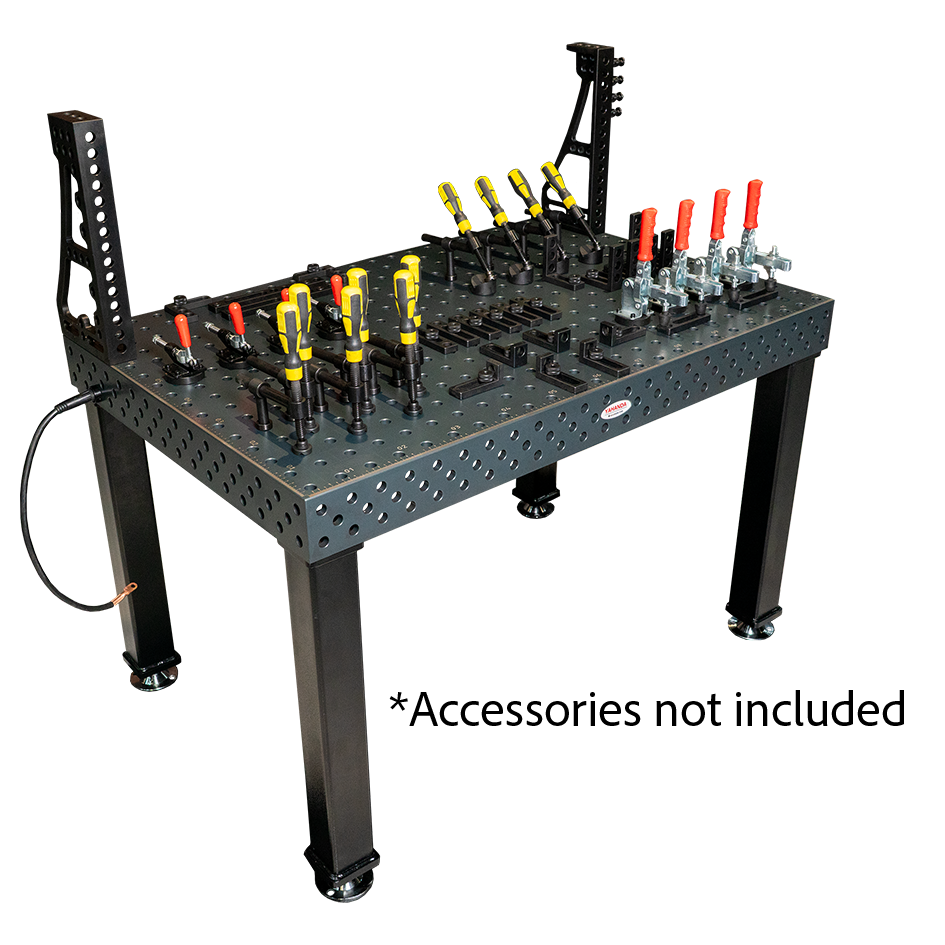

Q: What items are included in the 81-piece kit?
A: The breakdown of components consists of the following:

Supporting Angles: 1 x Left, 1 x Right
Locating Angles: 6 x Type B, 6 x Type C
Locating Bars: 8 x Type C, 2 x Type F
V-Blocks: 4 x Type A
Clamps: 6 x Type A Telescopic, 4 x Type A 45° Inclinable
Toggle Clamps: 4 x Type A Horizontal, 4 x Type A Vertical
Plain Squares: 2 x Type A
Locking Bolts: 20 x Type A Quick Locking, 8 x Type A Countersunk, 4 x Type A Magnetic
Connectors: 1 x Ground Connector

Q: What items are included in the 111-piece Kit

A: The breakdown of components consist of the following:-

1 × Supporting Angle 400 mm (Left)
1 × Supporting Angle 400 mm (Right)
2 × Supporting Angle 200 mm (Left and Right)
8 × Type B Locating Angle
8 × Type C Locating Angle
10 × Type C Locating Bar
2 × Type F Locating Bar
4 × Type A V-Block
10 × Type A Telescopic Clamp
8 × Type A 45° Inclinable Clamp
4 × Type A Plain Square
4 × Type A Horizontal Toggle Clamp
4 × Type A Vertical Toggle Clamp
28 × Type A Quick Locking Bolt
8 × Type A Countersunk Locking Bolt
8 × Type A Magnetic Locking Bolt
1 × Ground Connector

Q: What are the primary applications for this kit?
A: It is engineered for industrial and professional workshop setups to handle MIG/MAG and TIG welding workflows. It assists in multi-angle steel fabrication, metal frame alignment, and setting up highly repeatable fixtures for batch production.

Q: Where can I buy this Kit Online ?

A: Yahanda Welding Tables and Yahanda table accessories can be purchased from the Wasp Supplies Online store.
