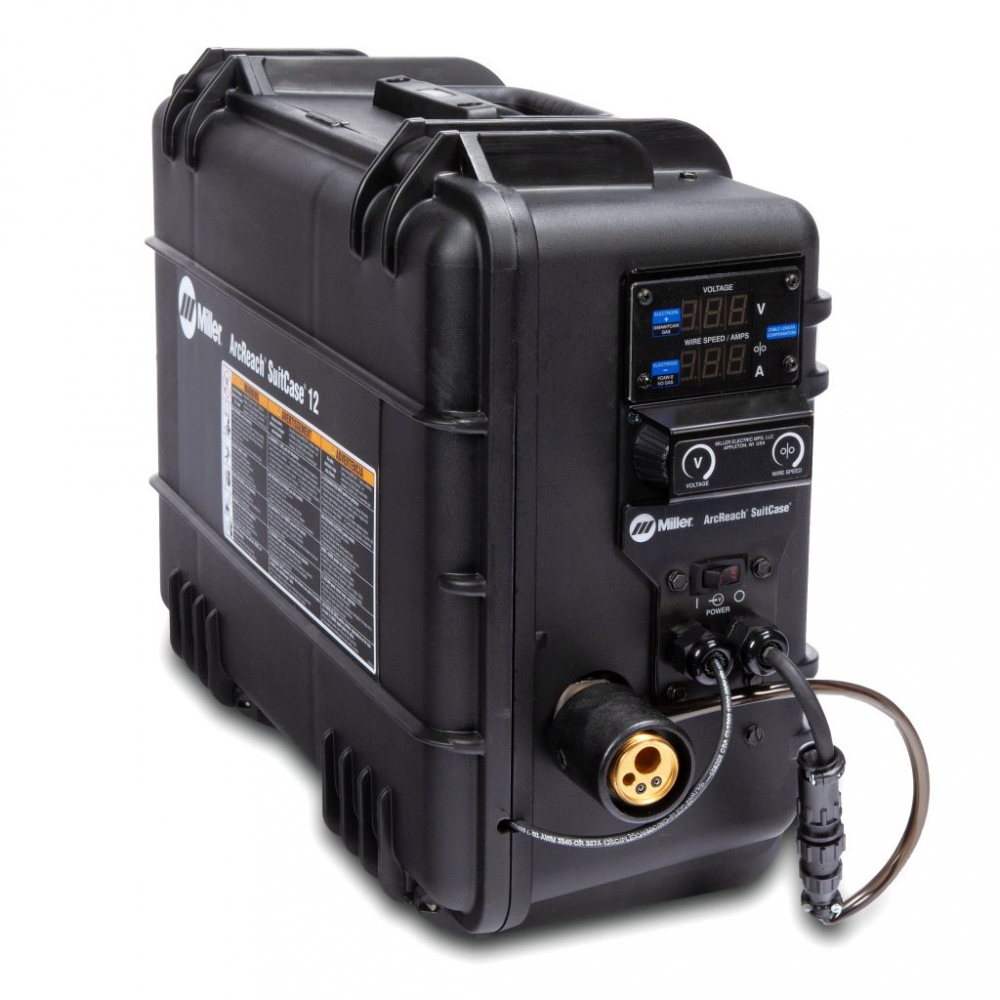

Miller ArcReach Suitcase 12 Feeder 300mm

Stock Code: WPM301456
MPN: 301456

Descriptions

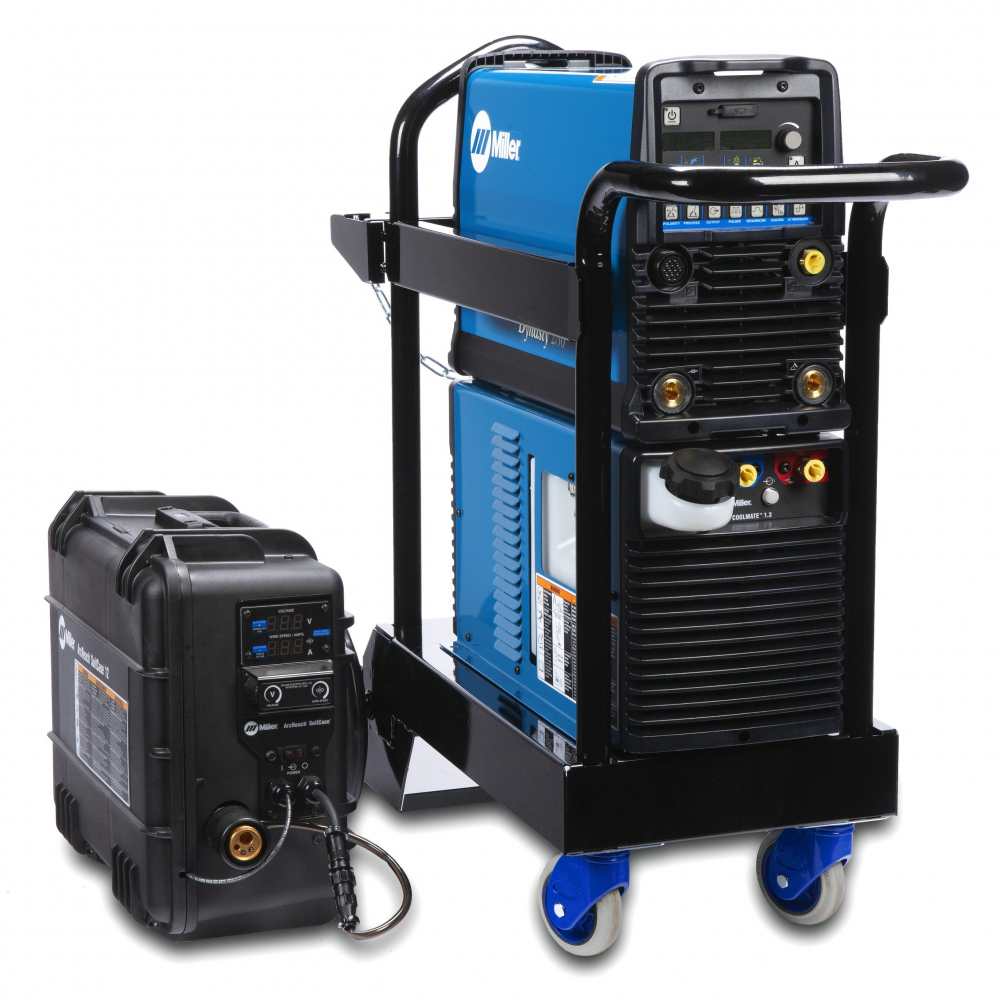

Portable feeder designed to run off of arc voltage. When paired with an ArcReach® power source, provides remote control of the power source without a control cord — saving time and money.

Features:

Ultra-low drag inlet guide pins

Make loading the wire easy and do not deform the wire on the way into the drive rolls. Simply thread the wire through the pins and into drive rolls. There are two ways to advance the wire through the drive roll and into the gun. Either open the pressure arm and thread the wire into the grooves in the drive roll and on into the gun inlet or place the wire between the pins and use the jog/purge switch to advance the wire through the drive roll.

Scaled wire pressure knob

Provides easy adjustment and consistent pressure on the drive rolls and wire.

Wire drive and motor assembly

Is specifically designed for mobile welding applications to provide smooth and consistent wire delivery. Improved motor torque and drive roll system are designed to feed smalldiameter solid wire (.023 inch) to large-diameter cored wire (5/64 inch).The Suitcase 12 Heavy Duty model has a lower gear ratio which extends the wire diameter range to include 3/32-inch cored wire.

Gun locking tab

Works with guns having corresponding locking grooves to prevent gun from being pulled out if the feeder is dragged by the gun.

Electronic wire feed speed control with integrated tachometer

Ensures wire feed speed accuracy and consistency that rivals the best benchtop feeders — making it easier to produce quality welds.

Potted and trayed main printed circuit board

For the harshest environments adds exceptional reliability. Board has full-trigger isolation so a shorted gun trigger will not affect feeder operation.

Digital meters with SunVision™ technology

Can display voltage and wire speed, and also amperage if desired. Meters can be seen clearly even in direct sunlight.

Polypropylene case with built-in slide rails

And the ability to open the door to change wire with feeder in vertical position.

Wire speed dual schedule

Reduces wire speed to 87.5 percent of standard speed. Requires a dual schedule gun or dual schedule switch (sold separately).

Gas inlet

Recessed into back of case is protected from incidental contact by the weld cable, ensuring consistent and contaminant-free shielding gas delivery to the gun.

Double-filtered gas valve

Helps keep dirt from clogging and affecting gas flow.

Title	ArcReach® SuitCase® 12
Applications	Shipbuilding Construction Heavy manufacturing Rental
Input Power	14–48 VDC/ 110 max. OCV
Input Welding Circuit Rating	425 A at 60% duty cycle
Wire Feed Speed	50–780 ipm (1.3–19.8 m/min.)
Wire Type and Diameter Capacity	Solid wire: .023– .052 in. (0.6–1.4 mm) Flux-cored: .030– 5/64 in. (0.8–2.0 mm)
Max. Spool Size Capacity	12 in. (305 mm) 45 lb. (20 kg)
Dimensions	H: 15.5 in. (394 mm) W: 9 in. (229 mm) D: 21 in. (533 mm)
Weight	15.9 kg
