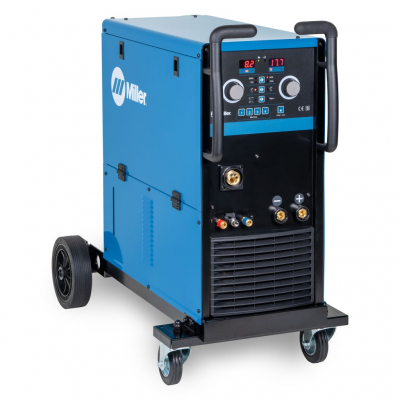

Miller BlueFab C350i Water Cooled Mig 3PH 400v

Stock Code: WPMC350IWC
MPN: 3300000002

Descriptions

The robust and reliable BlueFab® series of products is the perfect combination of industrial performance and simplicity. With the energy efficiency achieved through the latest inverter technology, the system offers considerable cost savings compared to traditional welding equipment.

Features:

Easy to operate

Why compromise? – Welders appreciate simplicity and easy access to the parameters that matters. At the same time, finer adjustments can be needed to achieve the highest quality welds. The BlueFab offer the perfect combination of pre-set values and synergic programs with a clean and crisp user interface.

Mobility and portability

The BlueFab wire feeder, equipped with an industrial grade 4-wheel drive mechanism is both compact and light weight. The connections are covered and protected to ensure reliability and reduced down-time. The metal casing can take a beating and survive the toughest work environment.

Direct access to stored programs

The operator has access to 4 pre-programmed or customized programs from the front panel of the wire feeder. The trigger select functionality improves productivity when different programs can be selected from the torch trigger – no need to go back to the wire feeder.

Prepared with synergic programs

Miller have prepared and equipped the BlueFab with multiple synergic lines for the most common material, wire and gas combinations. The Wire feed speed can be presented as meters per minute or as a predicted amperage value.

Multi-Process capabilities

Full MMA and LiftTIG capability can be accessed from the front panel of the power source.

Flexibility

The running gear with the integrated gas bottle shelf comes with the power source. The optional water cooler can be easily installed, no service technician required. The wire feeder can easily be removed from the power source and the optional wheel kit can be attached at all times.

MIG/MAG
Synergic MIG/MAG
DC MMA
DC TIG Lift

Industries Interests	Maintenance repair Manufacturing General ship building Mild steel applications General Construction
Material Thickness
Weldable Metals	Thin to thick, All materials, 0,6-1,6 mm solid, Cored wires
Input Voltage	400 V
Input Phase	3 phases
Input Hz	50/60 Hz
Amperage Range	30 A – 350 A
Max. Output Amperage	320 A @ 60%
Current Type
Rated Output	320 A / 30 V @ 60% duty cycle
Max Open Circuit Voltage	45 VDC

Net Width	487 mm
Net Height	857 mm
Net Depth	990 mm
Net Weight	56,6 kg
Warranty	3 Years Miller’s True Blue Warranty
