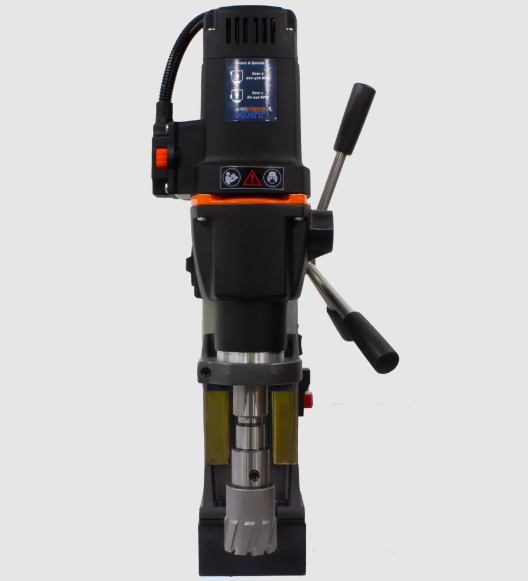

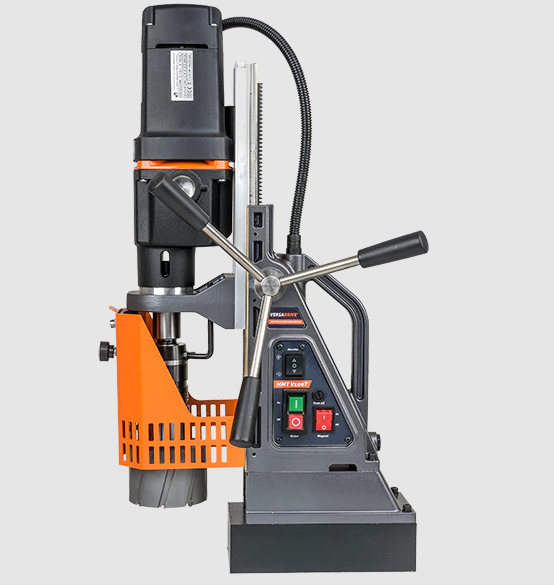

HMT V100T VERSADRIVE Magnetic Drill 230V

Stock Code: HMT850100-P-230
MPN: 850100-P-230
EAN / GTIN: 5060451527841

Descriptions

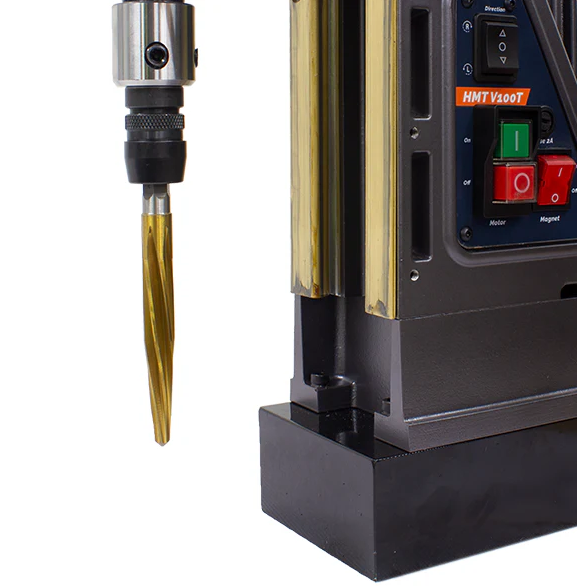

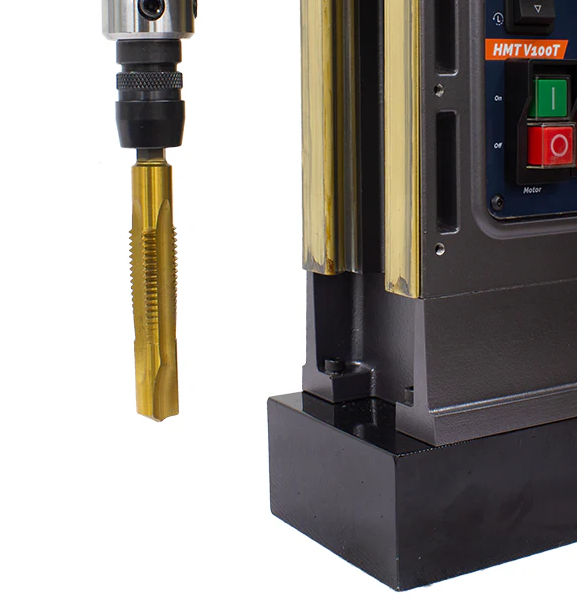

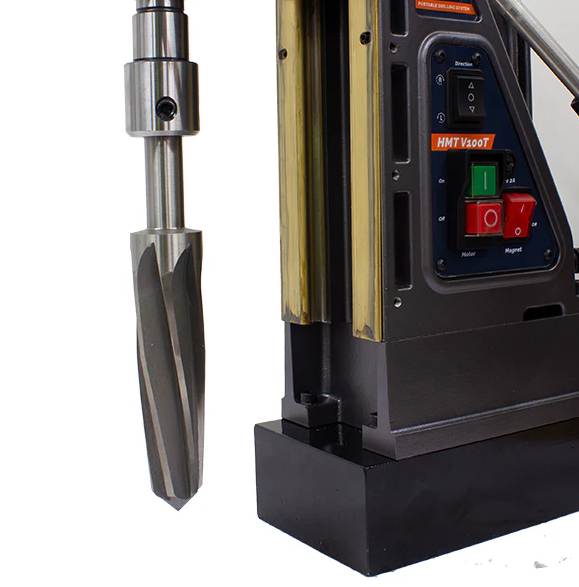

The HMT VersaDrive® V100T is the first UK Built portable drilling machine range designed for the 21st century, designed to meet a need in the market for a high-performance, low-maintenance, industrial quality portable drilling unit and to deliver constant performance in the most challenging drilling environments and fabrication conditions. Combining light weight and portability with a high power all-day broaching capability up to 100mm diameter is combined with a forward reverse, variable speed motor that will tap holes up to M30 diameter. Fully rated for reaming, countersinking, and tapping. Advanced British electromagnets provide enhanced magnet hold for exceptional safety and stability. In addition to standard through-hole tapping, the V100T can also be used with the VersaDrive® blind hole tapping system up to M30 diameter.

Features & Benefits:

• All-day broaching capability up to 100mm diameter • Forward and reverse • Variable speed motor • Variable Torque control

Specification:

CUTTER SIZE RANGE- 12-100mm MAX CUTTER CAPACITY – 100mm TCT TWIST DRILL CAPACITY - 32mm MAX TAP CAPACITY – M30 LENGTH- 345mm WIDTH- 240mm HEIGHT- 450-730mm STROKE- 280mm WEIGHT- 24.5Kg MAGNET SIZE- 220x115mm MAGNETIC FORCE- 2200 Kg MOTOR POWER- 1800 W SPEED/s (RPM)- 1) 60-140 2) 200-470 RPM SPINDLE- MT3 ARBOR- 19.05mm (3/4”) Weldon TAKES CHUCK- Yes COOLANT SYSTEM – Gravity Oil Fed
