Weldturn BY10 welding Turntable 230v c/w 65mm chuck

Stock Code: ZZWEL006
MPN: CAP0500

Descriptions

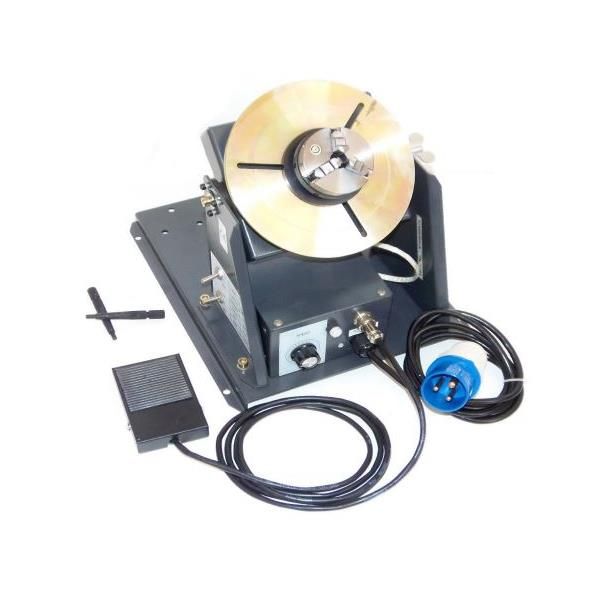

The WELDTURN BY10 is a 10Kg light duty welding turntable and positioner designed for lighter work pieces. The rotation is driven by a DC motor with a switch for clockwise & anti-clockwise rotation with stepless speed regulation. This machines comes complete with a 65mm quick release chuck and foot control pedal.

The machine has a capacity of 10Kg in the vertical position and 5Kg in the Horizontal position, the speed range is 2-10 Rpm and can be used in clockwise or counter clockwise direction. Supplied with 65mm chuck and foot pedal to start/stop rotation.

BY10 Technical Specifications

Rotation Speed 2 - 10 RPM

Capacity (Horizontal) 10 Kg Capacity (Vertical) 5 Kg

Tilt Angle 0 - 90°

Tilt Mode Manual

Foot Pedal Stop / Start

Table Diameter 180 mm Height, Width,

Length 370 x 270 x 215mm

Chuck (CAP0511) 65mm Chuck included
