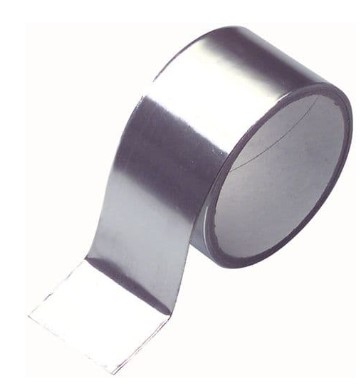

Inoxitape 5m x 40mm Stainless Steel Sticky Shim Tape

Stock Code: ASST
MPN: MHIT//

Descriptions

Cibo Inoxitape: Self-Adhesive Stainless Steel Shim Tape

One of the simplest and most innovative ideas for re-creating a simple clean mitre corner finish after welding.

Simply cut a length of Inoxitape, stick it onto the surface of the stainless steel surface and brush over with the Cibo Tex or Combination flap brushes to create a clean and pin-sharp mitre corner finish.

Keep the surface cool and Inoxitape can be re-used mitre after mitre.

Material: 316L stainless steelLength: 5 roll rollWidth: 40mm widthThickness: 0.15mm shim stainless: Adhesive backing

Use: For protecting certain parts of a workpiece during the sanding process.

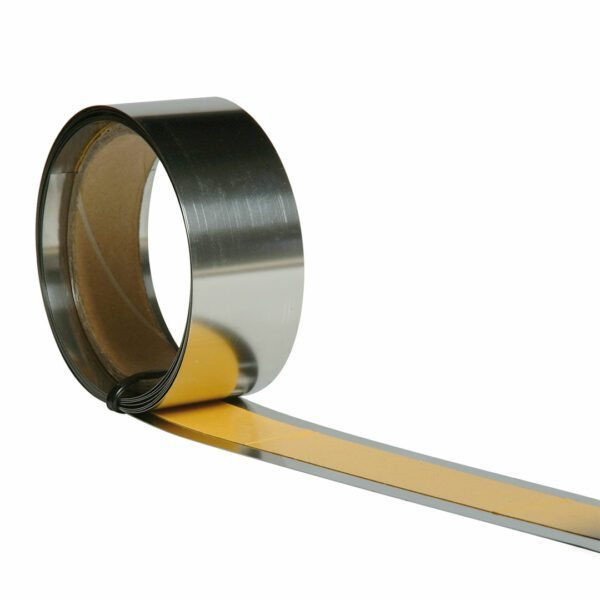

Description: Supplied in a useful dispensing box, Inoxitape is a 5m self-adhesive stainless steel shim tape that protects the workpiece whilst sanding and brush finishing stainless steel.

Properties:

– Self Adhesive

– Packed in a handy dispenser box

– Reusable

Application:

Tips & Tricks: Brush the weld seam in mitre.

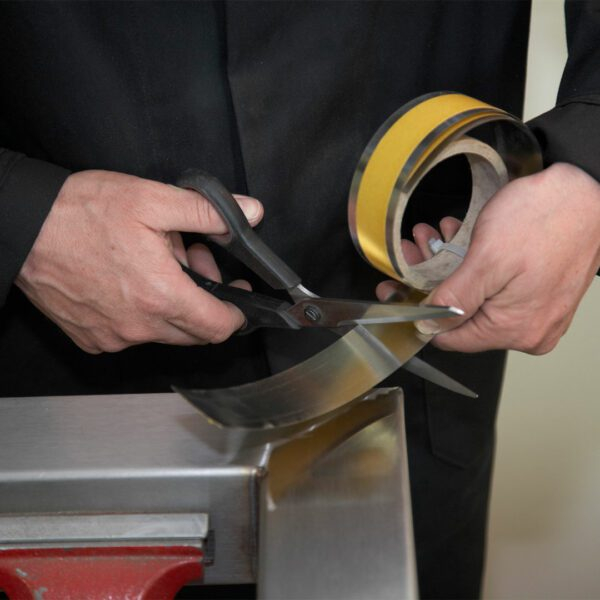

Step 1: Cut the Inoxitape to required length with scissors.

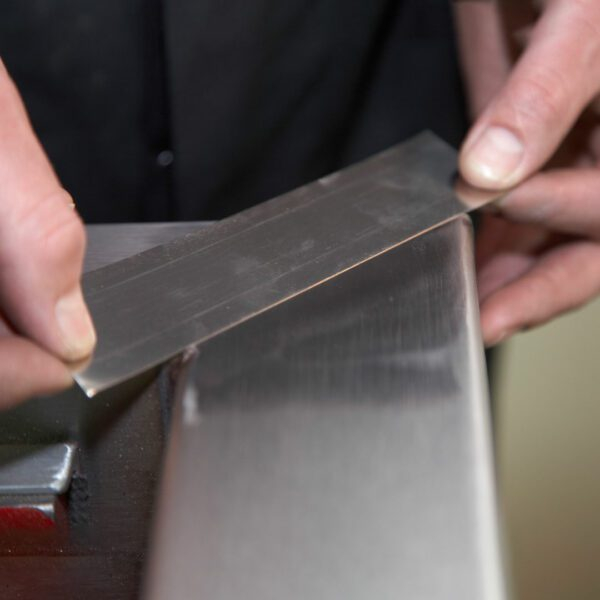

Step 2: Remove the self adhesive backing and apply to the metal surface (ensure the workpiece is cooled prior to applying). Align the edge of the tape precisely where you would like the mitre joint line to appear. Press the Inoxitape firmly onto the work-piece.
Step 3: Sand lengthwise along the structure (using a tex or combi brush) up to the Stainless Steel Shim / Inoxitape. Use your wheel to brush along the tape to make sure the structure is correctly positioned along the entire cutting line. That way you can work close to the tape, without crossing the side of the finishing wheel.

Step 4: Turn the work piece and stick the Inoxitape to the other side of the mitre. Repeat the previous step on this side.

Step 5: Remove the Inoxitape to leave a perfect mitre finish on your stainless steel. Inoxitape can be re-used multiple times. To ensure optimum life ensure the stainless steel surface is cold and work at a low pressure when sanding the workpiece.

To finish we recommend you give a final surface clean with the SPIC Inoxiclean protection spray and wipe with a soft cloth. This will remove any remnant sanding residue and glue and protect it against fingerprints and grease stains.
