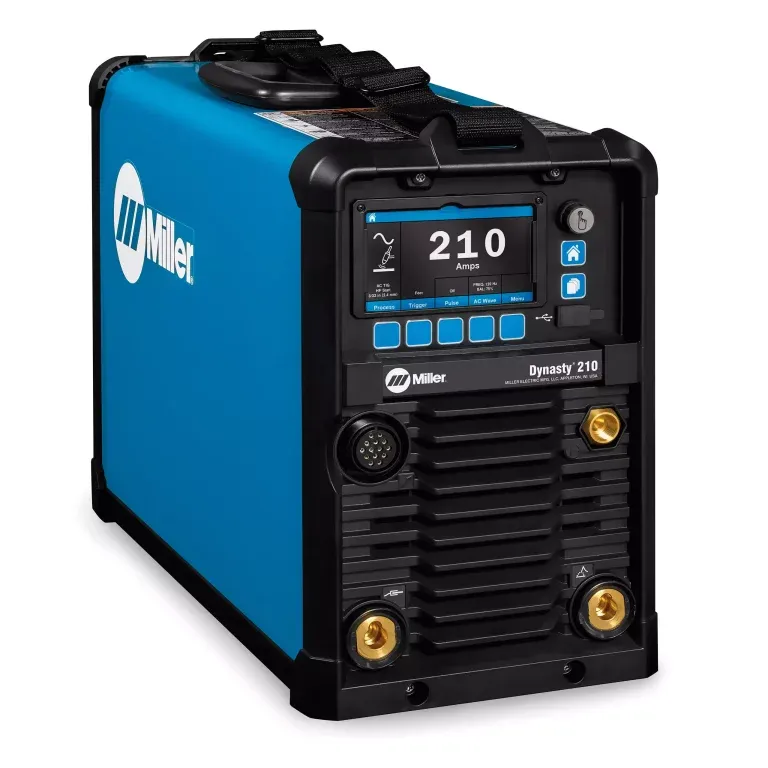

Miller Dynasty 210 AC/DC Tig welder

Stock Code: WPMDYN200
MPN: 907816003

Descriptions

The new Miller Dynasty 210 AC/DC tig welder 2023 version is the very latest in technology from Miller welders. True Professional 210 amp AC/DC tig welder, with huge 60% duty cycle @ 210 amps.

This package includes The Miller Dynasty 210 AC/DC power source, WP 26-12 Tig Torch, earth Lead and gas input hose optional pedal available, see related items.

AC TIG Features

Balance control provides adjustable oxide removal which is essential for creating the highest quality aluminum welds Frequency controls the width of the arc cone and can improve directional control of the arc. AC Waveforms

Advanced square provides a fast freezing puddle, deep penetration and fast travel speeds.
Soft square for a soft buttery arc with maximum puddle control and good wetting action.
Sine for customers that like a traditional arc. Quiet with good wetting.
Triangular reduces the heat input and is good on thin aluminum. Fast travel speeds.

Independent amplitude/amperage control allows EP and EN amperages to be set independently to precisely control heat input to the work and electrode.

DC TIG Features

Exceptionally smooth and precise arc for welding exotic materials. Pulse Waveforms

Square provides a fast freezing puddle for ultimate arc control.
Sine produces a reduced audible sound and provides a more fluid puddle that is good for overlaying applications.
Triangular provides a quick-forming puddle while further reducing heat for thin materials.

Easy-to-understand interface with 4.5-inch LCD display

Ensures proper machine setup and parameter selection. Informative on-screen explanations and dynamic images enhance the parameter selection process.

Program memory

Allows easy naming, saving and recalling of favorite weld settings. Deliver more productivity by eliminating the need to manually set the parameters. Deliver consistent quality by welders of all skills

Pro-Set™

Eliminates the guesswork when setting weld parameters.

Locks and limits.

Provides control of weld parameter ranges minimizing deviation from the welding procedure specification (WPS).

Auto-Line™

Allows for any input voltage hookup (120–480 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.

Blue Lightning™

Provides more consistent high‑frequency (HF) arc starts and greater reliability compared to traditional arc starters.

Cooler Power Supply (CPS)

Is an integrated 120-volt dedicated-use receptacle for the Coolmate™ 1.3.

Technical Specifications

Specification	Detail
Processes	AC/DC TIG (GTAW), Pulsed TIG (GTAW-P), Stick (SMAW)
Amperage Range	1–210A (DC), 2–210A (AC)
Max Weld Thickness	Aluminum: 6.4mm (1/4 in); Steel: 6.4mm (1/4 in)
Input Power	120–480 V, 1- or 3-Phase with Auto-Line™
Weight	~21.3 kg (47 lb)
Dimensions (H x W x D)	~352 x 216 x 555 mm (13.88 x 8.5 x 21.88 in)
Features	USB port, Blue Lightning™ HF arc starter, Cooler-On-Demand™The small footprint and integrated cooler options are fantastic. I'm especially in love with the wireless foot pedal.
