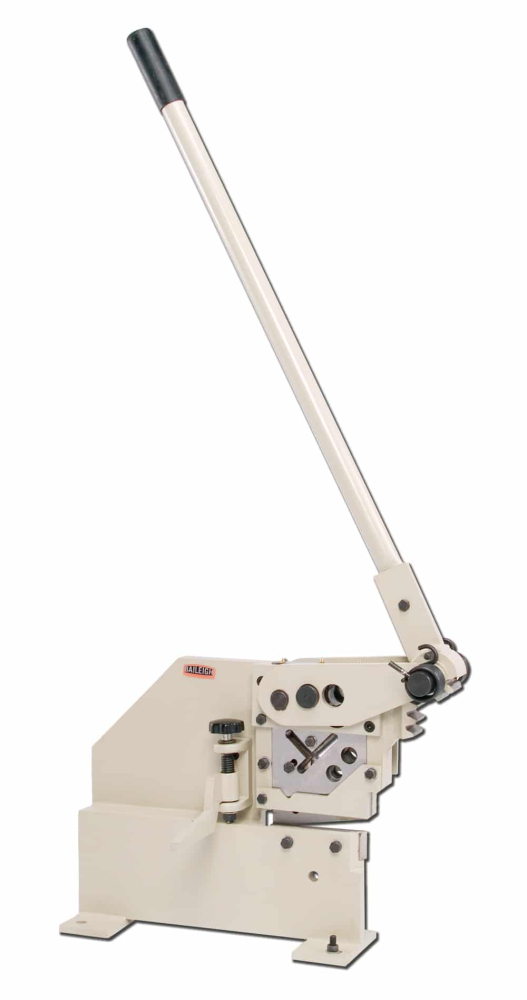

Baileigh SW-22M Manual Steelworker

Stock Code: SW-22M
MPN: SW-22M

Descriptions

Have the need to do shearing of stock but don't have the budget for a full, fledged hydraulic ironworker, then look at the SW-22 from Baileigh Industrial. The SW-22M manual ironworker is a great addition to the small fabrication shop that would like a lot of the same features as a fully equipped hydraulic ironworker, but at a fraction of the price and foot print.

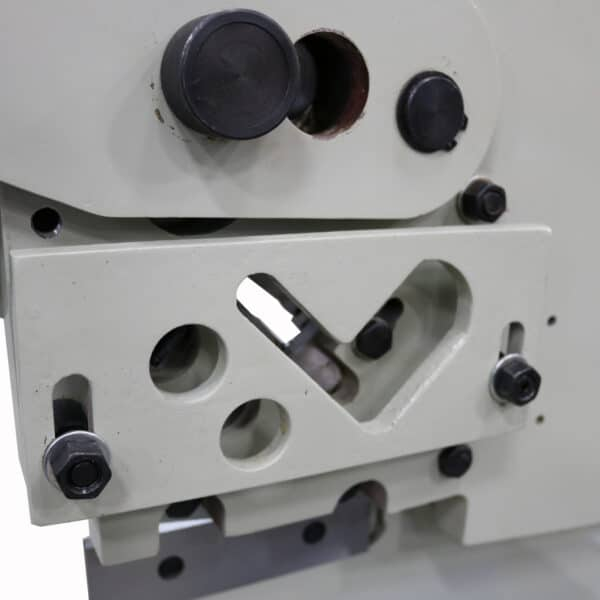

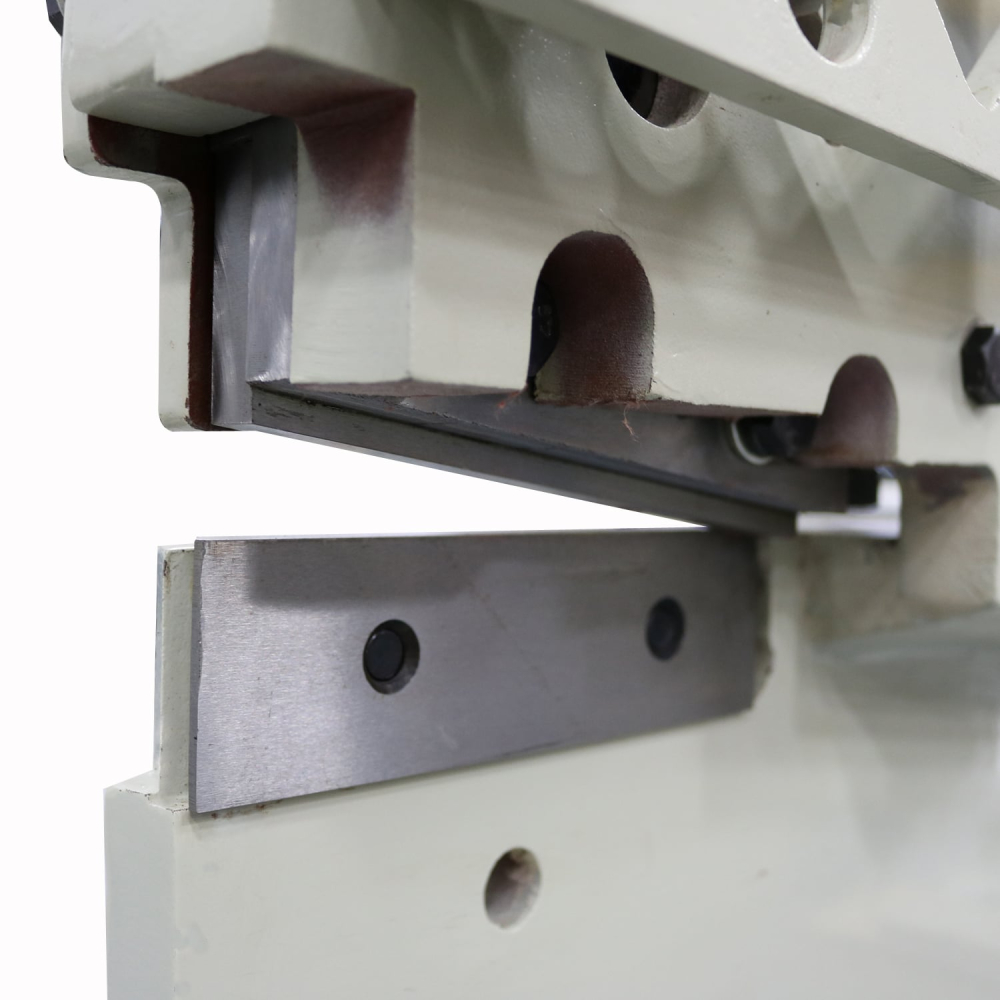

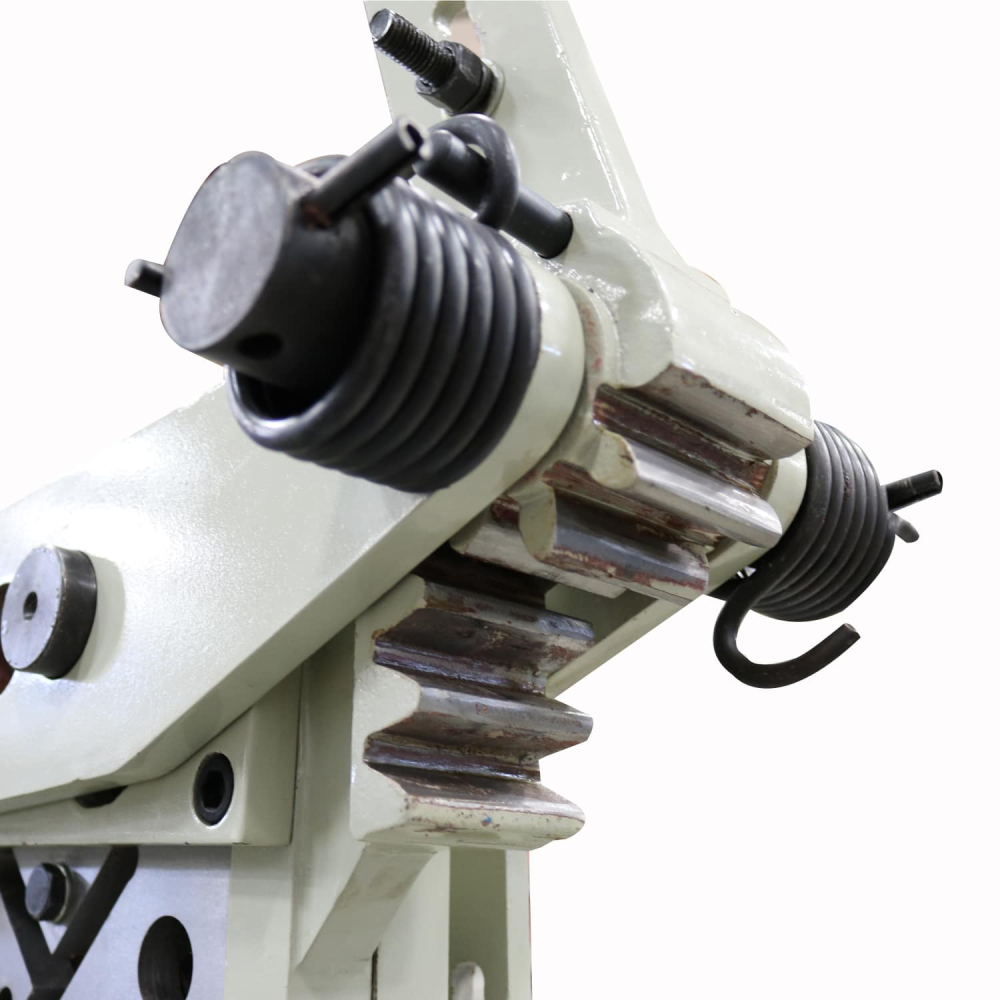

Made from fully welded plate steel, the SW-22M manual ironworker from Baileigh Industrial allows the operator to shear; solid square, solid round, flat bar and angle iron of varying thicknesses. The SW-22M uses a gear to transfer the power from your arm to the blades via a heavy duty handle. A material back stop is also included for light production work.

*Capacities subject to type and hardness of material

12mm round shear capacity
100mm x 6mm flat bar capacity
Manually operated

Specifications

Item Number SW-22M
Shear Capacity Angle Iron 60 mm x 4 mm
Shear Capacity Flat Bar 4″x3/8″ (100x8mm)
Shear Capacity Plate 3/8″ (8mm)
Shear Capacity Round 5/8″ (16mm)
Shear Capacity Square 5/8″ (16mm)
Shear Capacity T Bar 2″x1/8″ (50x3mm)
Power Manual
Shipping Weight 115 kgs.
Shipping Dimensions 990mm x 405mm x 660mm
