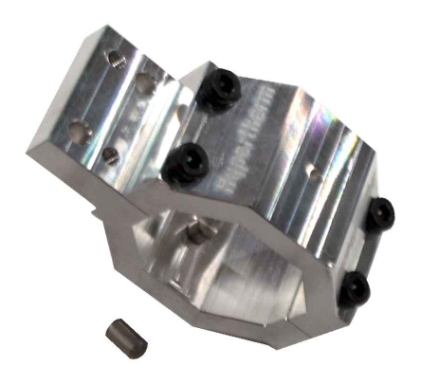

Hypertherm Robotic plasma torch clamp

Stock Code: WHY228806
MPN: 228806
EAN / GTIN: 00662310330040

Descriptions

The Hypertherm plasma torch mount can be used to accurately hold either a Duramax robotic plasma torch or a Duramax Hyamp robotic cutting torch.

The torch mount can be used with all torch head angles, 45, 90 and 180 degree. Each robotic torch has 3 mounting points on the torch body where dowels fitted to the torch mount can be used for precise location. Alternatively the dowels can be removed and the mount can be fitted anywhere along the torch body. Anti rotational tabs fit into the anti rotational slot on the torch body.

Each robotic torch has incremental markings on each side of the torch body, one side in inches the other side in centimetres. The torch mount is attached to the robot using 2 x M4 threaded holes, and 2 x 0.45mm through holes.
