Powermax125 -400v CPC port, 85° Torch - 7.6m, 180° Torch - 15.2m W/Consumables Remote
Powermax125 -400v CPC port, 85° Torch - 7.6m, 180° Torch - 15.2m W/Consumables Remote

Powermax125 -400v CPC port, 85° Torch - 7.6m, 180° Torch - 15.2m W/Consumables Remote

Stock Code: WHY059529
MPN: 059529
EAN / GTIN: 00662310342845
£8,050.00 (exc VAT) per 1
£9,660.00 (inc VAT)
Quantity: - +

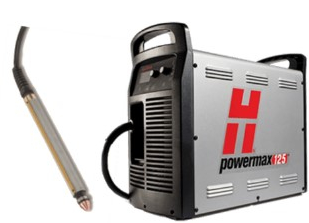

The Hypertherm powermax 125 is a 125 amp plasma cutter that can be used in either Hand or Mechanised cutting operations. Both the plasma power source and the vast array of Duramax Hyamp cutting torches are 100% rated for continued use  to cope with the most demanding applications.

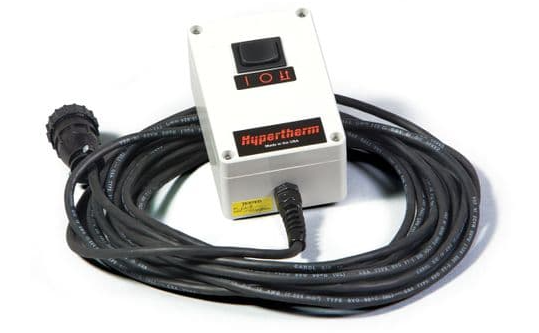

This  Hypertherm package has a part number 059529 which comprises of the Power source and mains lead,  work return lead (earth), CPC remote port, voltage divider card,  and 15.2 metre 180 degree machine cutting torch and 7.6 metre 85 degree hand cutting torch, remote on/off switch.

This plasma cutter has a maximum cutting capacity of 57mm and a recommended cutting capacity of 44mm when edge cutting or 25mm capacity when piercing  using a mechanised XY table, which gives a superb finish on 25mm plate.

New Duramax Hyamp torch styles provide versatility for hand cutting, portable automation, x-y table cutting, and robotic cutting and gouging. Smart Sense technology automatically adjusts the gas pressure according to cutting mode and torch lead length. It also detects electrode end-of-life, automatically turning off power to the torch to prevent potential damage to other parts or the workpiece.

Specifications

Input voltages CSA 480/600 V, 3-PH, 50/60 Hz

CE 400 V, 3-PH, 50/60 Hz

CCC 380 V, 3-PH, 50/60 Hz

Input current @ 21.9 kW 300/400/480/600 V, 38/36/31/24 A

Output current 30 - 125 A

Rated output voltage 175 VDC

Duty cycle @ 40°C (104°F) 100% @ 125 A

Open circuit voltage (OCV)

400/600 CSA

380 V CCC

400 V CE

320 VDC

290 VDC

305 VDC

Dimensions with handles 592 mm D; 274 mm W; 508 mm H (23.3" D; 10.8" W; 20.0" H)

Weight with 7.6 m (25') torch 480 V   47,9 kg (105.7 lbs)

600 V   47,5 kg (104.7 lbs)

380 V   45,2 kg (99.6 lbs)

400 V   48,9 kg (107.8 lbs)

Gas Supply Clean, dry, oil-free air or nitrogen

Recommended gas inlet

flow rate / pressure Cutting: 260 l/min (550 scfh) @ 5.9 bar (85 psi)

Gouging: 212 l/min (450 scfh) @ 4.1 bar (60 psi)

Input power cable length 3 m (10')*

Power supply type Inverter - IGBT

Engine drive requirement 40 kW for full 125 A output

Certifications CSA-certified for use in the Americas and Asia, except China.

CE, C-Tick, CU/GOST, Ukr, and Serbian for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.

CCC for use in China.

Warranty Power supplies have a 3-year warranty and torches a 1-year warranty.




EAN / GTIN00662310342845
MPN059529
BRANDHypertherm
ConditionNew

There are no downloads for this product.

There are no reviews for this product yet. Be the first to add one!
