Hypertherm 059527 Powermax125- 400v CPC Port, 85° Handheld Torch W/Consumables - 15.2m
Hypertherm 059527 Powermax125- 400v CPC Port, 85° Handheld Torch W/Consumables - 15.2m
Hypertherm 059527 Powermax125- 400v CPC Port, 85° Handheld Torch W/Consumables - 15.2m
Hypertherm 059527 Powermax125- 400v CPC Port, 85° Handheld Torch W/Consumables - 15.2m
Hypertherm 059527 Powermax125- 400v CPC Port, 85° Handheld Torch W/Consumables - 15.2m

Hypertherm 059527 Powermax125- 400v CPC Port, 85° Handheld Torch W/Consumables - 15.2m

Stock Code: WHY059527
MPN: 059527
EAN / GTIN: 00662310342821
£7,490.00 (exc VAT) per 1
£8,988.00 (inc VAT)
Quantity: - +

Hypertherm 059527 Powermax125- 400v CPC Port, 85° Handheld Torch W/Consumables - 15.2m

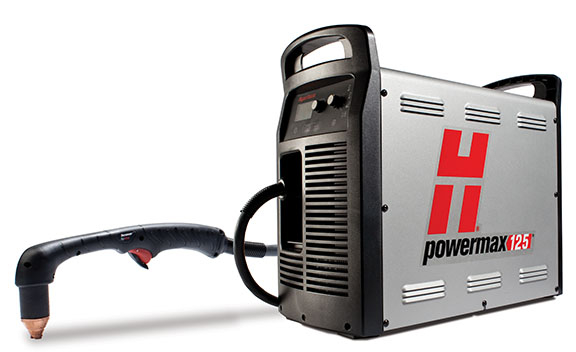

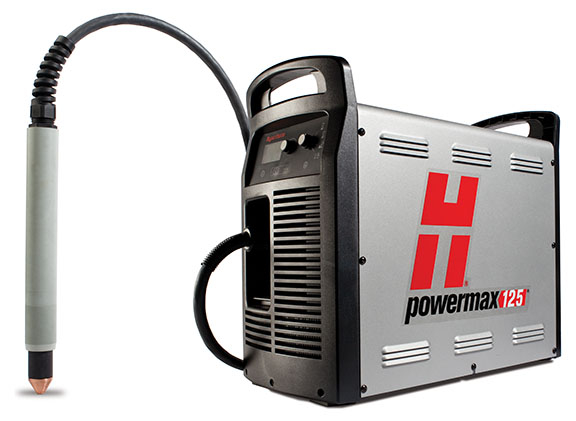

059527 Hypertherm Powermax125 CE 400V Hand System c/w CPC Port 85 degree hand torch 15.2 m (50 ft) long, 57mm capacity, 3 year warranty.

100% duty cycle with auto gas managemnt, 57mm severence capacity, 25mm pierce capacity, hand cutting, machine cutting, gouging and demolition applications. .

With the maximum power and performance for air plasma in our line, the Powermax125 severs 57 mm (2-1/4") thick metals at 125 mm/min (5 ipm). With 100% duty cycle and Powermax reliability, it is ready for the most demanding cutting and gouging jobs hand and mechanised.

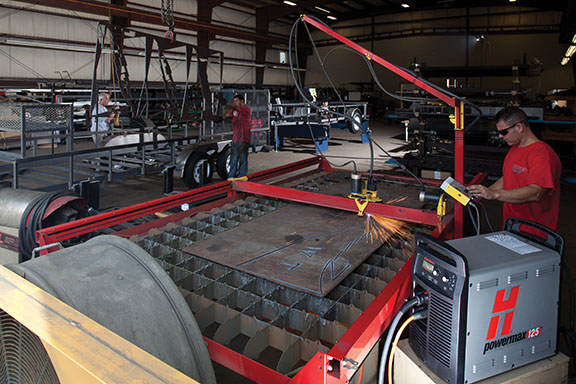

New Duramax Hyamp torch styles provide versatility for hand cutting, portable automation, x-y table cutting, and robotic cutting and gouging. Smart Sense technology automatically adjusts the gas pressure according to cutting mode and torch lead length. It also detects electrode end-of-life, automatically turning off power to the torch to prevent potential damage to other parts or the workpiece.

Specifications


Input voltages CSA 480/600 V, 3-PH, 50/60 Hz

CE 400 V, 3-PH, 50/60 Hz

CCC 380 V, 3-PH, 50/60 Hz

Input current @ 21.9 kW 300/400/480/600 V, 38/36/31/24 A

Output current 30 - 125 A

Rated output voltage 175 VDC

Duty cycle @ 40°C (104°F) 100% @ 125 A

Open circuit voltage (OCV)

400/600 CSA 320 VDC

380 V CCC 290 VDC

400 V CE 305 VDC

Dimensions with handles 592 mm D; 274 mm W; 508 mm H (23.3" D; 10.8" W; 20.0" H)

Weight with 7.6 m (25') torch 480 V   47,9 kg (105.7 lbs)

600 V   47,5 kg (104.7 lbs)

380 V   45,2 kg (99.6 lbs)

400 V   48,9 kg (107.8 lbs)

Gas Supply Clean, dry, oil-free air or nitrogen

Recommended gas inlet

flow rate / pressure Cutting: 260 l/min (550 scfh) @ 5.9 bar (85 psi)

Gouging: 212 l/min (450 scfh) @ 4.1 bar (60 psi)

Input power cable length 3 m (10')*

Power supply type Inverter - IGBT

Engine drive requirement 40 kW for full 125 A output

Certifications CSA-certified for use in the Americas and Asia, except China.

CE, C-Tick, CU/GOST, Ukr, and Serbian for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.

CCC for use in China.

Warranty Power supplies have a 3-year warranty and torches a 1-year warranty.


EAN / GTIN00662310342821
MPN59527
BRANDHYPERTHERM
ConditionNew
