059526 Hypertherm Powermax125- 400v CPC Port, 85° Handheld Torch W/Consumable - 7.6m

Stock Code: WHY059526
MPN: 059526
EAN / GTIN: 00662310342814

Descriptions

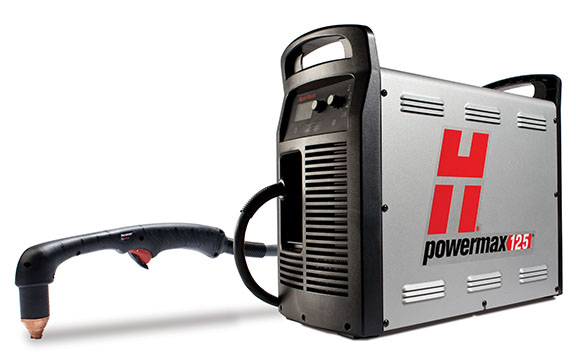

059526 Powermax125 CE 400V Hand System with CPC Port and 7.6 m (25 ft) 85 degree hand torch

Automatically added to your order

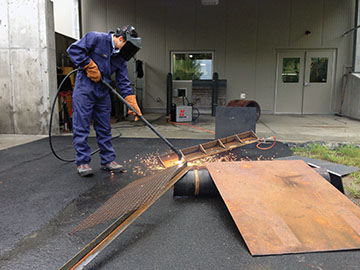

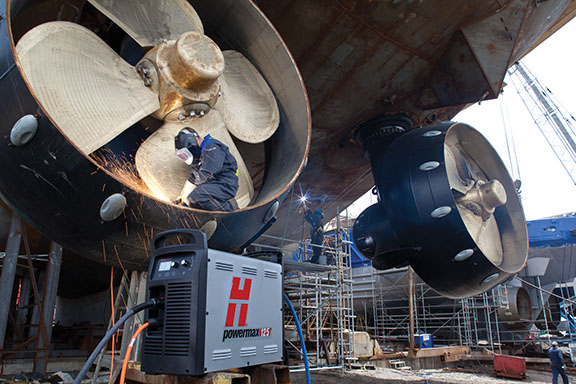

Quick fit torch, auto gas control, 57mm severence and 25mm pierce capacity, hand cutting, machine cutting, gouging and demolition applications. .

With the maximum power and performance for air plasma in our line, the Hypertherm Powermax125 severs 57 mm (2-1/4") thick metals at 125 mm/min (5 ipm). With 100% duty cycle and Powermax reliability, it is ready for the most demanding cutting and gouging jobs.

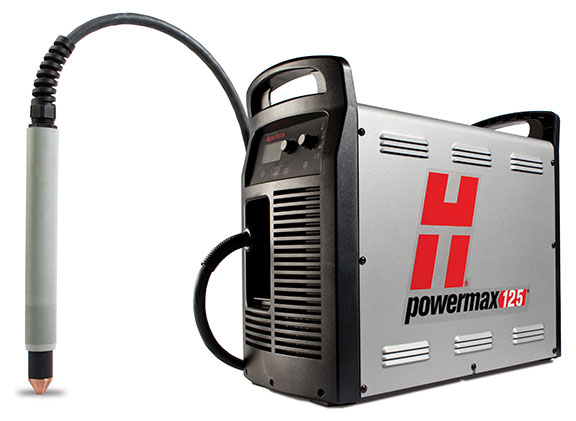

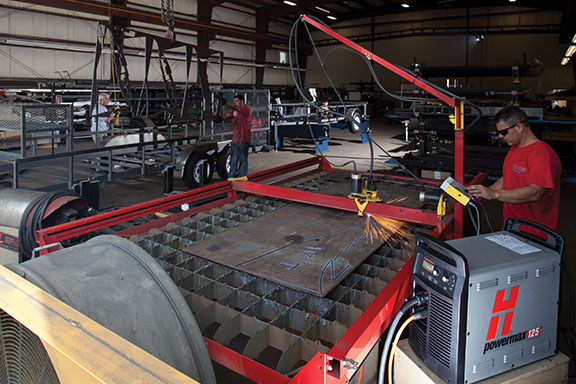

New Duramax Hyamp torch styles provide versatility for hand cutting, portable automation, x-y table cutting, and robotic cutting and gouging. Smart Sense technology automatically adjusts the gas pressure according to cutting mode and torch lead length. It also detects electrode end-of-life, automatically turning off power to the torch to prevent potential damage to other parts or the workpiece.

Input voltages CSA 480/600 V, 3-PH, 50/60 Hz

CE 400 V, 3-PH, 50/60 Hz

CCC 380 V, 3-PH, 50/60 Hz

Input current @ 21.9 kW 300/400/480/600 V, 38/36/31/24 A

Output current 30 - 125 A

Rated output voltage 175 VDC

Duty cycle @ 40°C (104°F) 100% @ 125 A

Open circuit voltage (OCV) 400/600 CSA380 V CCC400 V CE320 VDC290 VDC305 VDC

Dimensions with handles 592 mm D; 274 mm W; 508 mm H (23.3" D; 10.8" W; 20.0" H)

Weight with 7.6 m (25') torch 480 V 47,9 kg (105.7 lbs) 600 V 47,5 kg (104.7 lbs) 380 V 45,2 kg (99.6 lbs) 400 V 48,9 kg (107.8 lbs)

Gas Supply Clean, dry, oil-free air or nitrogen

Recommended gas inlet flow rate / pressure Cutting: 260 l/min (550 scfh) @ 5.9 bar (85 psi) Gouging: 212 l/min (450 scfh) @ 4.1 bar (60 psi)

Input power cable length 3 m (10')*

Power supply type Inverter - IGBT

Engine drive requirement 40 kW for full 125 A output

Certifications CSA-certified for use in the Americas and Asia, except China. CE, C-Tick, CU/GOST, Ukr, and Serbian for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted. CCC for use in China.

Warranty Power supplies have a 3-year warranty and torches a 1-year warranty.
