Hypertherm Duramax Hyamp 180 degree robotic torch 15.2m lead

Stock Code: WHY059672
MPN: 059672

Descriptions

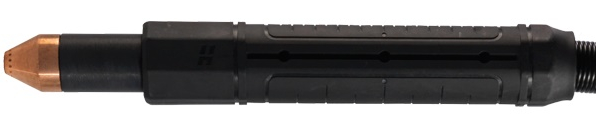

Hypertherm 059672 Duramax Hyamp 180 degree robotic plasma cutting torch with 15.2m leads.

Designed for durability and reliability with Spring Start technology, Duramax Hyamp® torches are available for handheld and machine cutting and gouging, and robotic cutting. These robotic torches use the same mechanised consumables found in handheld and mechanised Duramax Hyamp torches.

Available in 3 head styles 180, 90 and 45 degree heads in 2 lengths 7.6 and 15.2 metre. With quick fit connector to the power source.

Duramax Hyamp robotic torches where designed to be used in conjunction with the high output of the Hypertherm Powermax 125 plasma cutter but can be used with Hypertherm Powermax 65, 85, 105 plasma cutting power sources.

Duramax Hyamp Robotic torches have a precise mounting system, for complete accuracy and repeatability even if the torch is removed from the robot arm or replaced altogether. Used in conjunction with torch mount 228806 the torch can be located using dowels or incremental markings on the torch body, one side imperial and one side metric. If dowels are not used ant rotational grooves stop the torch from twisting.
