Exact 220E Pipe Cutting System - 110V
Exact 220E Pipe Cutting System - 110V
Exact 220E Pipe Cutting System - 110V
Exact 220E Pipe Cutting System - 110V

Exact 220E Pipe Cutting System - 110V

Stock Code: EXACT220110
MPN: 7010437-110
£1,388.05 (exc VAT) per 1
£1,665.66 (inc VAT)
Quantity: - +

Power plus a wide cutting capacity with PipeCut 220E. It can be used for cutting both metal and plastic pipes; the machine has adjustable motor speed and contant torque. Because of its robust design it is ideal for use in both the workshop or on site for a multitude of different pipe applications.

Includes

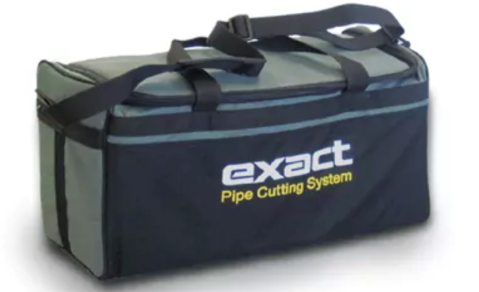

PipeCut Bag 3

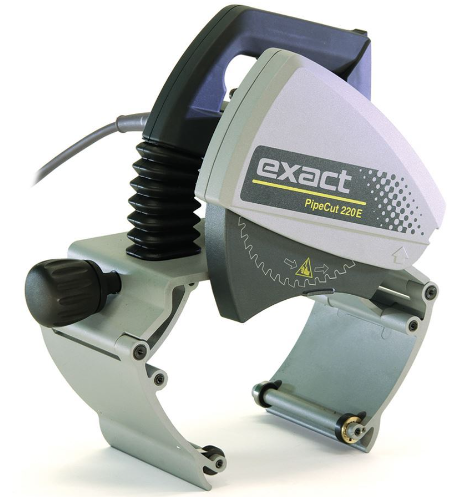

Exact PipeCut 220E pipe saw

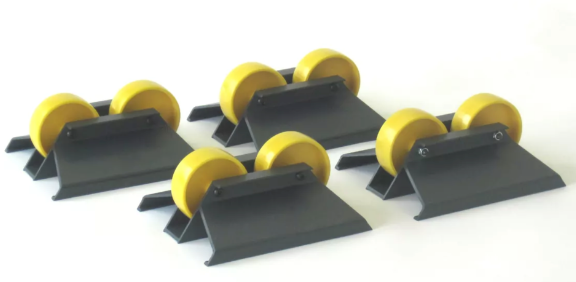

Pipe Support 280, 4pcs

Operating instructions

Hex socket key 5 mm and 2 mm fitted to the machine

TCT 140 blade fitted to the machine

Techinal Data

Pipe material Acid-resistant steel, Cast iron, Copper, Multi-layered materials, Plastic, Stainless steel, Steel

Pipe OD 15mm – 220mm (0.6”- 8.6”)

Max. wall thickness 8 mm (0.31“) steel, 14 mm (0.55“) plastic

Voltage / Power 230V / 1200W

Voltage / Current 110V, 120V / 9.2A

No-Load speed 1600 – 3500 r/min

Blade diameter 140mm (5.51”)

Mounting bore 62mm (2.44”)

Weight 6,0kg (13 lbs)

Electronical unit Blade speed preselection, automatic fuse, soft start, torque control

Speed preselection 4= Stainless steel and acid-resistant steel, 5= steel, 6= all other materials

Loading capacity of supports 314 kg , 692 lb (4 supports)

MPN7010437-110
BRANDEXACT
ConditionNew
