Slip Roll PR-1316

Stock Code: PR-1316
MPN: PR-1316
£3,707.81 (exc VAT) per 1
£4,449.38 (inc VAT)
Quantity: - +

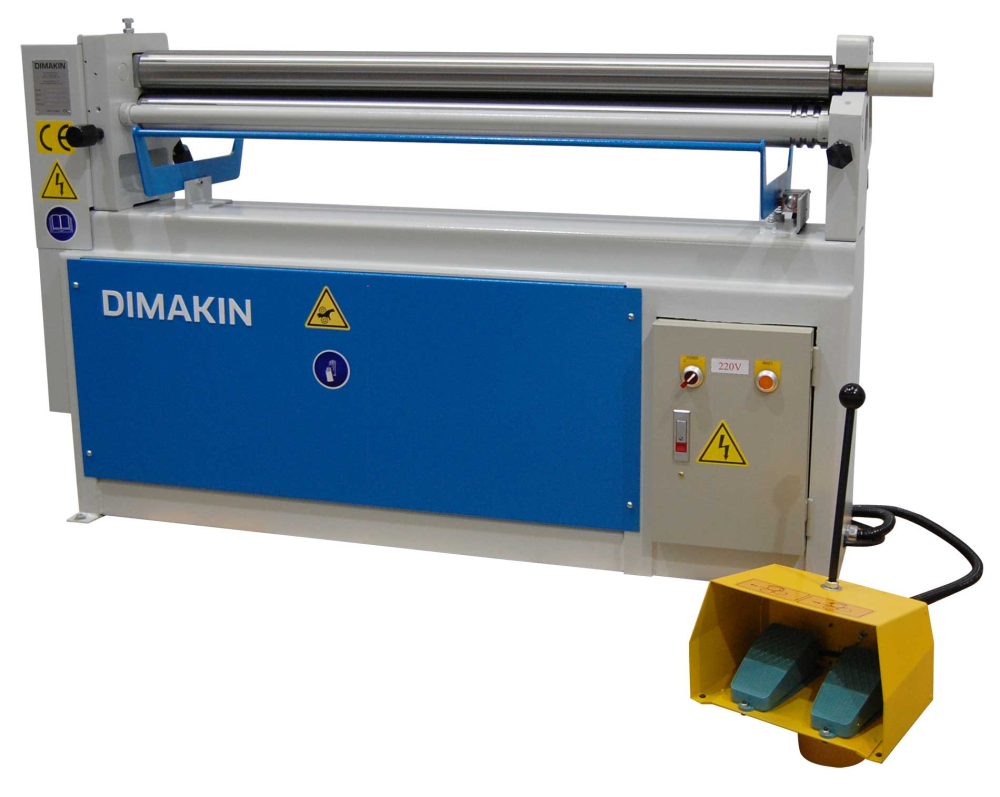

The Powered Slip Roll PR-1316 is the motor-powered version of its smaller counterpart, the Slip Roller PR-1316-M, and a more industrial solution to rolling sheet metal. It can also roll 1.6mm mild steel over its full length of 1270mm (50”). This machine can do exactly what its manual counterpart can do, but without the sweat. This metal sheet slip roller also has three polished carbon steel rolls, two of which are powered. This makes for years of quality fabricating. However, unlike the Slip Roller PR-1316-M, two rolls are powered by a motor, controlled with a fully manoeuvrable foot pedal. This movement gives the user maximum flexibility around the machine when rolling and forming sheet metal.

In addition to the high-carbon metallurgy of the rolls, they also come standard with three wire grooves for solid rods.

In conclusion, this machine has all the benefits of the Slip Roll PR-1316-M. However, unlike that machine, it comes with with less of the labour, making light work out of bending sheet metal for many years to come.

Slip Roll PR-1316 FEATURES:

  • Motor operated
  • Manoeuvrable foot pedal
  • Forwards and backwards controls
  • Three wire grooves for solid rod
  • High quality rolls
  • CE compliant

Specifications

Rolling length 1270mm

Rolling capacity (mild steel) 1.6mm

Roll diameter 75mm

Wire grooves 3

Minimum forming radius 50mm

Gear ratio N/A

Roll speed 38 rpm

Motor 0.5hp

Shipping dimensions 5700mm x 1770mm x 1090mm

Shipping weight 300kgs

MPNPR-1316
BRANDDimakin
WEIGHT300kgs
ConditionNew
