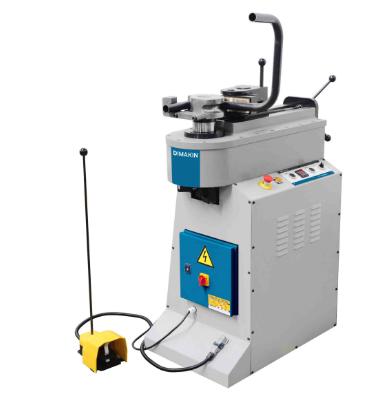

Tube Bender RDB-76

Tube Bender RDB-76

Stock Code: RDB-76
MPN: RDB-76
£8,498.44 (exc VAT) per 1
£10,198.13 (inc VAT)
Quantity: - +

DIMAKIN creates Tube Benders to cover the needs of those bending larger radii with thicker walls, and in smaller batches.

Firstly, the machine is portable and simple to use. It has the ability for quick tool changes to allow anyone to use these machines, even first time around. The Tube Bender RDB-76 is mid-sized in the standard range of rotary draw benders, with a mid-sized capacity to match, that being said, the machine still has a very modest footprint.

Furthermore, all rotary draw bending machines from DIMAKIN can bend to an accuracy of ± 0.05° for great repeatability. Bend after bend.

Built in Portugal to EU quality standards, DIMAKIN’s tube and pipe bending ranges are among the best in the world.

In summary, the Tube Bender RDB-76 is the ideal balance between affordability and capacity.

Tube Bender RDB-76 FEATURES:

  • Digital read-out
  • Compact footprint
  • Foot pedestal operated
  • Wheel base
  • Universal tooling bed
  • Quick tool change
  • Emergency stop
  • Thousands of tooling options
  • Custom tooling available

Specifications

Maximum capacity Ø76 x 4mm

Y axis accuracy ± 0.5°

Maximum bending raius 300mm

Power 400v 3-phase

Shipping dimensions 400kg 1200mm x 800mm x 1500mm

MPNRDB-76
BRANDDimakin
WEIGHT400kgs
ConditionNew
