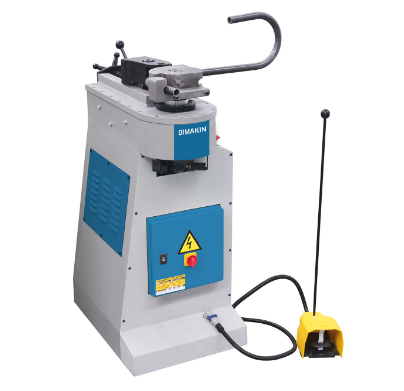

Tube Bender RDB-42

Tube Bender RDB-42

Stock Code: RDB-42
MPN: RDB-42
£7,650.00 (exc VAT) per 1
£9,180.00 (inc VAT)
Quantity: - +

DIMAKIN’s Tube Bender Machines cover the needs of those bending large radii with thick walls in very small batches. Portability and simplicity combines with quick tool changes in order to allow these machines to be used by any operator. Even on a first-time basis.

Firstly, despite being the smallest in the range, the Tube Bender RDB-42 still has an impressive maximum capacity for its tiny footprint. Furthermore, as with all rotary-draw bending machines from DIMAKIN, it can bend with accuracy of ± 0.05° for reliable repeatability.

Built in Portugal to EU quality standards, DIMAKIN’s tube and pipe bending ranges are among the best in the world.

To sum up, the Tube Bender RDB-42 is the perfect entry-level machine for rotary draw tube and pipe bending.

FEATURES:
  • Digital read-out
  • Foot pedestal operated
  • Universal tooling bed
  • Quick tool change
  • Emergency stop
  • Thousands of tooling options
  • Custom tooling available

Specifications

Maximum capacity Ø42 x 3mm

Y axis accuracy ± 0.5°

Maximum bending raius 260mm

Power 240v 1-phase

Shipping dimensions 360kg 700mm x 900mm x 1300mm

MPNRDB-42
BRANDDimakin
WEIGHT360kgs
ConditionNew
