Coldsaw CS-275-DM

Coldsaw CS-275-DM

Stock Code: CS-275-DM
MPN: CS-275-DM
£2,043.75 (exc VAT) per 1
£2,452.50 (inc VAT)
Quantity: - +

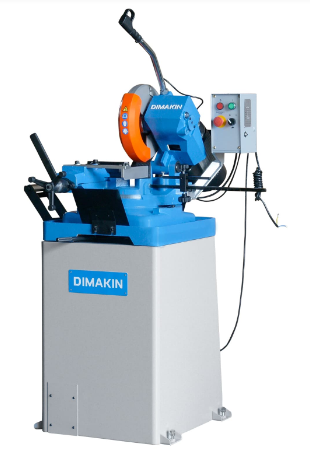

The CS-275-DM Coldsaw is a dual mitering, manual descent, industrial metal cutting coldsaw suitable for small to medium fabrication facilities. This machine has a little extra capacity than its smaller counterpart, the Coldsaw CS-250-DM. Firstly, as with all DIMAKIN coldsaws, it can mitre both ways up to 45°.

This model is capable of taking a 275mm (11”) x 2.5mm wide HSS blade of all TPI tooth counts. DIMAKIN can help you find the perfect coldsaw blade for your application. They are designed to produce a burr free finish (sold separately).

Similarly to all other models, the single phase motor of this coldsaw also enables the machine to be run in most facilities. This removes the need for three phase plug installation. Again, the CS-275-DM Coldsaw  has a cam locking vice, which enables you to quickly load and unload material from the vice with ease.

Lastly, a self-contained coolant system as a standard feature prolongs the life length of your blade and ensures a lifetime of quality cutting.

Coldsaw CS-275-DM FEATURES:
  • Compact and economical size
  • Dual mitres 45° in both directions
  • Accepts a 275mm (11” blade)
  • Burr-free finish cuts
  • Coolant system as standard to extend blade life
  • Cam-locking vice for quick loading/unloading
  • Scaled material stop
  • Single speed blade (45rpm) suitable for most common metals
  • Single phase

For more capacity than this machine, check out the next model up, the Coldsaw CS-315-DM

Specifications

Solid round cutting capacity 90°/45° 50mm/50mm

Round tube cutting capacity 90°/45° 100mm/90mm

Square tube cutting capacity 90°/45° 82mm/80mm

Rectangle tube cutting capacity 90°/45° 110mm x 70mm/85mm x 70mm

Mitre Dual (45°L/45°R)

Blade width 275mm Ø (11')

Blade speed 45 RPM

Vice opening 120mm

Descent Manual

Return Manual

Coolant system Yes

Weight 160kgs

Motor 0.75Kw(1hp)

Power Single phase

Shipping dimensions 150kg 730 x 600 x 1080mm

MPNCS-275-DM
BRANDDimakin
WEIGHT160kgs
ConditionNew
