Coldsaw CS-250-DM

Coldsaw CS-250-DM

Stock Code: CS-250-DM
MPN: CS-250-DM
£1,992.19 (exc VAT) per 1
£2,390.63 (inc VAT)
Quantity: - +

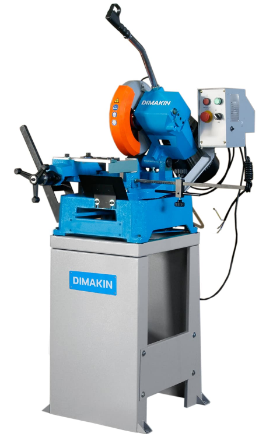

The Coldsaw CS-250-DM is a dual mitering, manual descent, industrial metal cutting coldsaw suitable for small to medium fabrication facilities, and the smallest of the standard range.

Firstly, as with all DIMAKIN coldsaws, it can mitre both ways up to 45°. In addition, this model is capable of taking a 250mm (10”) x 2mm wide HSS blade of any TPI counts.

Depending on the material being cut, DIMAKIN can supply these blades, which provides a great, burr free finish (not included). The single-phase power of this coldsaw allows it to run in most facilities without needing a three-phase plug installation.

Another feature of the Coldsaw CS-250-DM is a cam locking vice, which enables you to quickly load and unload material from the vice with ease. Lastly, a self-contained coolant system as a standard feature prolongs the life length of your blade and ensures a lifetime of quality cutting.

Altogether, the Coldsaw CS-250-DM is the perfect piece of equipment for any medium/small fabrication space.

Coldsaw CS-250-DM FEATURES:

  • Compact and economical size
  • Dual mitres 45° in both directions
  • Accepts a 250mm (10” blade)
  • Burr-free finish cuts
  • Coolant system as standard to extend blade life
  • Cam-locking vice for quick loading/unloading
  • Scaled material stop
  • Single speed blade (45rpm) suitable for most common metals
  • Single phase

For more capacity than this machine, check out the next model up, the Coldsaw CS-275-DM

Specifications

Solid round cutting capacity 90°/45° 30mm/30mm

Round tube cutting capacity 90°/45° 75mm/65mm

Square tube cutting capacity 90°/45° 65mm/55mm

Rectangle tube cutting capacity 90°/45° 90mm x 50mm/60mm x 50mm

Mitre Dual (45°L/45°R)

Blade width 250mm Ø (10')

Blade speed 45 RPM

Vice opening 100mm

Descent Manual

Return Manual

Coolant system Yes

Weight 115kgs

Motor 0.75Kw(1hp)

Power Single phase

Shipping dimensions 157kg 570 x 890 x 780mm (2pc)

MPNCS-250-DM
BRANDDimakin
WEIGHT115kgs
ConditionNew
