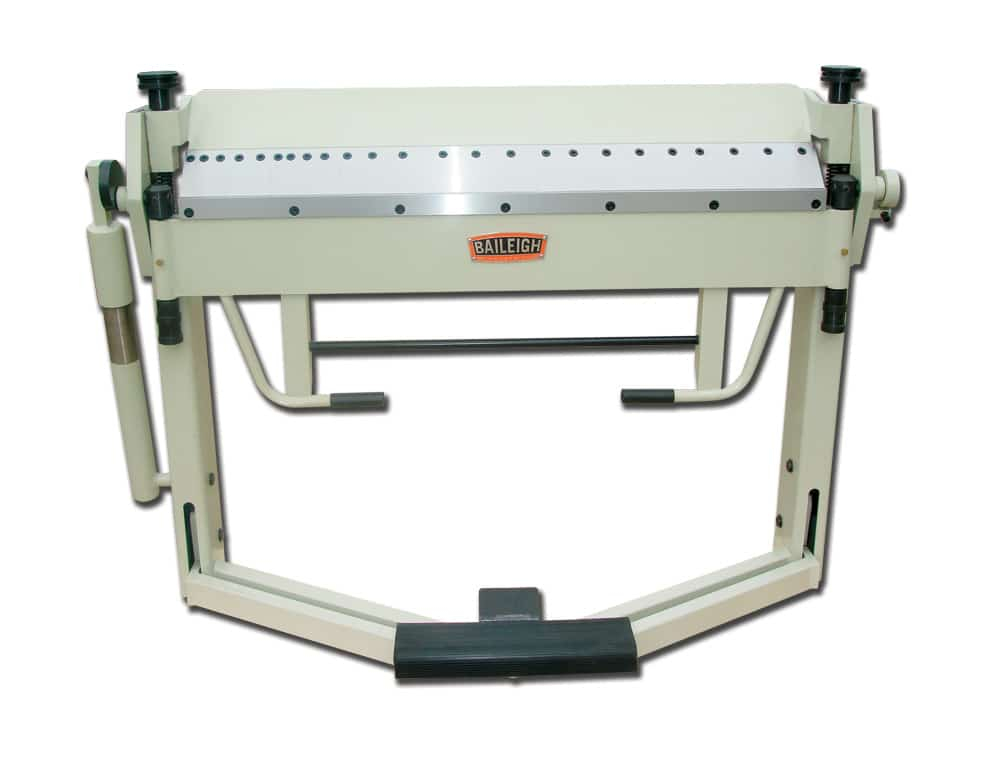

Baileigh BB-5014F Box & Pan Folder

Stock Code: BB-5014F
MPN: BB-5014F

Descriptions

Doing a full width sheet metal bend on a standard box and pan brake can be difficult if you are by yourself, ever wish you had an extra hand to help?

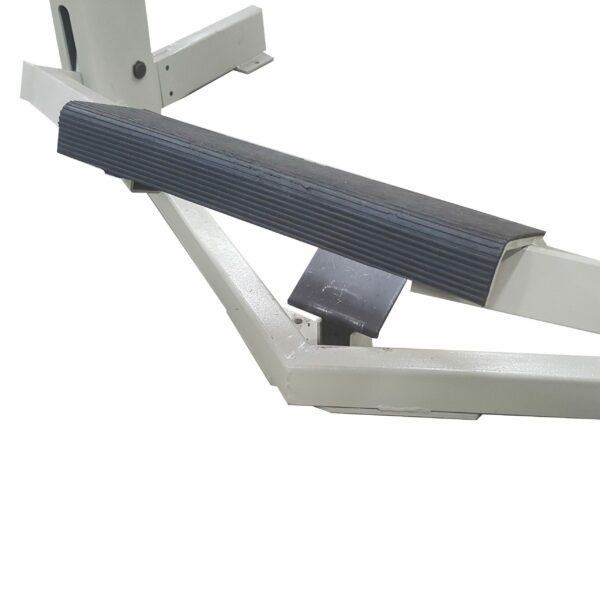

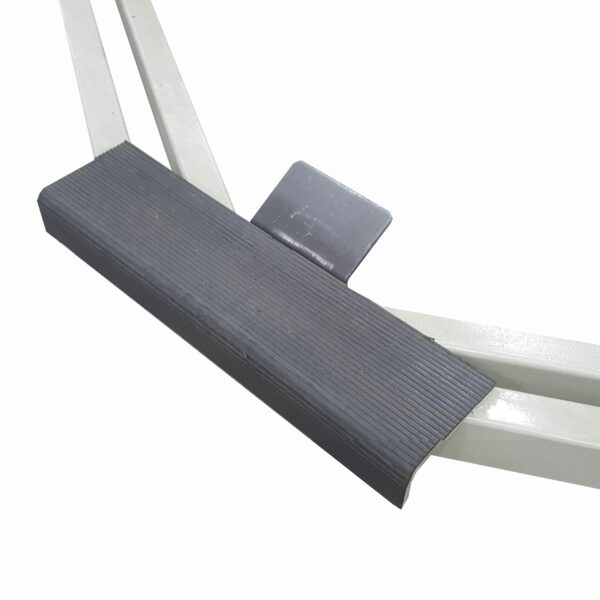

Baileigh Industrial's BB-5014F finger brake allows the operator to clamp the material with his/her foot, so both hands are free for perfect positioning of the sheet metal before clamping the material in place.

The BB-5014F finger brake model comes with an assortment of different width fingers to accommodate bending various sizes and shapes of tanks, pans, boxes and much more.

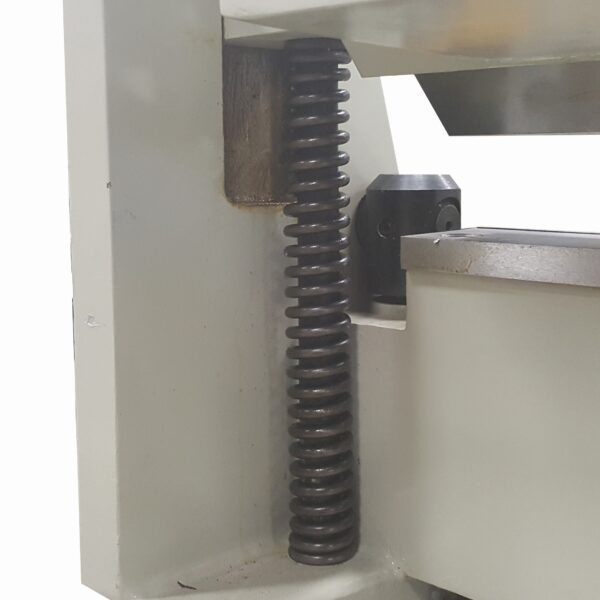

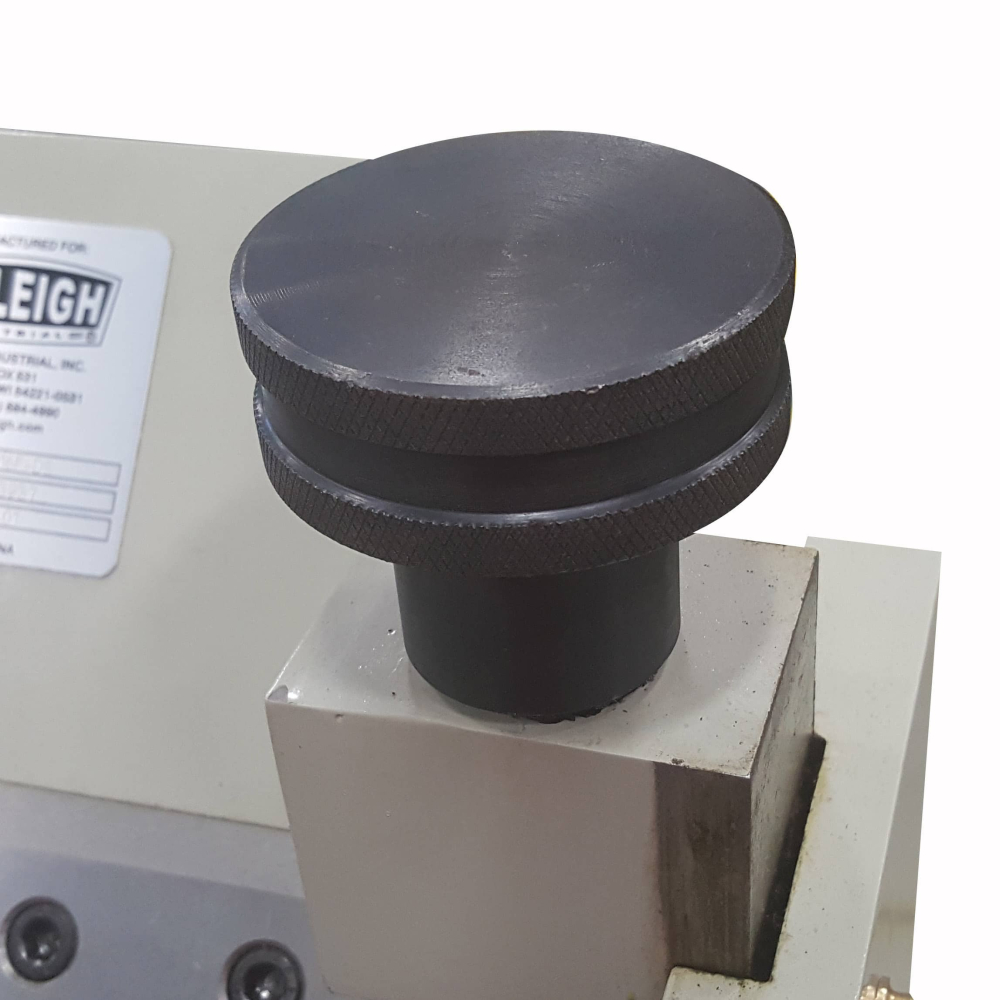

Also included with the BB-5014F is an easy to adjust gap adjustment for various gauges of sheet metal. A spring loaded cylinder assists lifting the apron which gives assistance to the operator when bending at full capacity, which is an impressive 14 gauge at a full 50 inches.

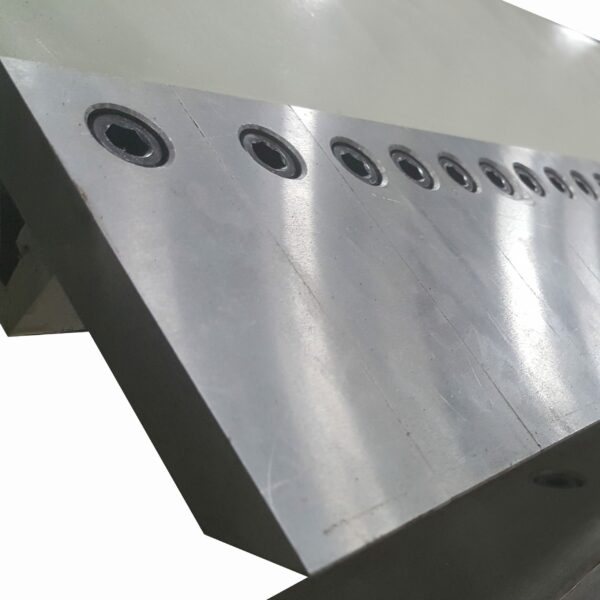

The BB-5014F sheet metal brake also features hardened fingers and bending die for long life and years for use.

An adjustable stop rod completes the list of features for the BB-5014F.

2mm mild capacity
1.3mm stainless capacity
1270mm folder length
0° – 135° bend angle

Specifications
Item Number BB-5014F
Thickness (SS) 14 ga. (18 ga.)
Box Depth 64 mm
Max. Clamping Bar Lift Foot Operated 47 mm
Shipping Weight 364 kgs.
Length 1270 mm
Shipping Dimensions (Inches) 1702 x 711 x 1207 mm
