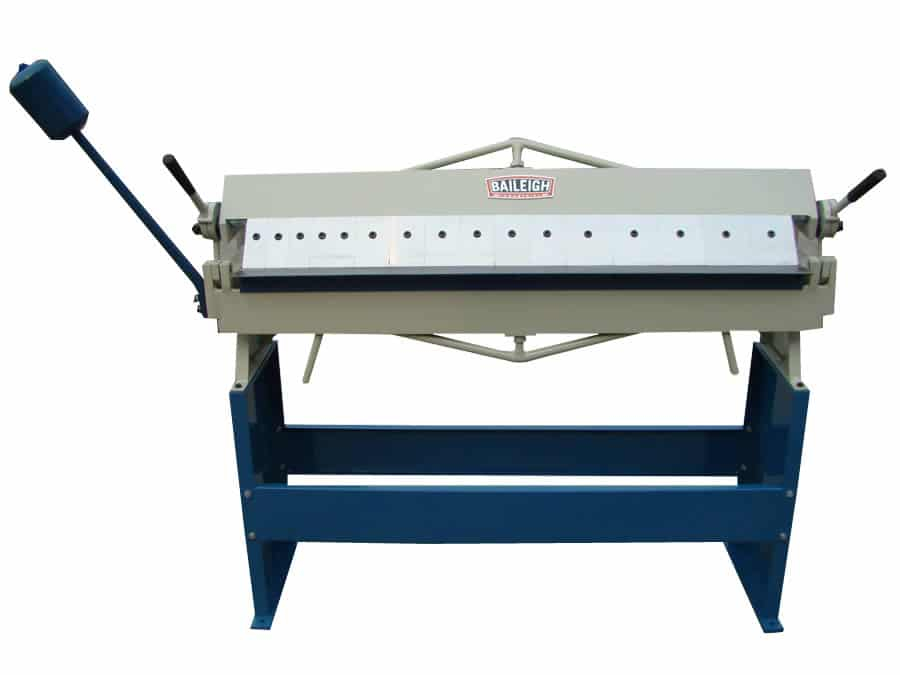

Baileigh BB-4816E Box & Pan Folder

Stock Code: BB-4816E
MPN: BB-4816E

Descriptions

The BB-4816E sheet metal brake is a great machine for the sheet metal fabricator who is a hobbyist, light fabricator, or local educational institution. This brake is perfect for fabricators on a budget, but do not what to sacrifice quality in the bend just because of the lower price. The BB-4816E is made to only the standards Baileigh Industrial accept, and will provide years of trouble free use. For added rigidity the framework on the BB-4816E is made from fully welded steel plate.

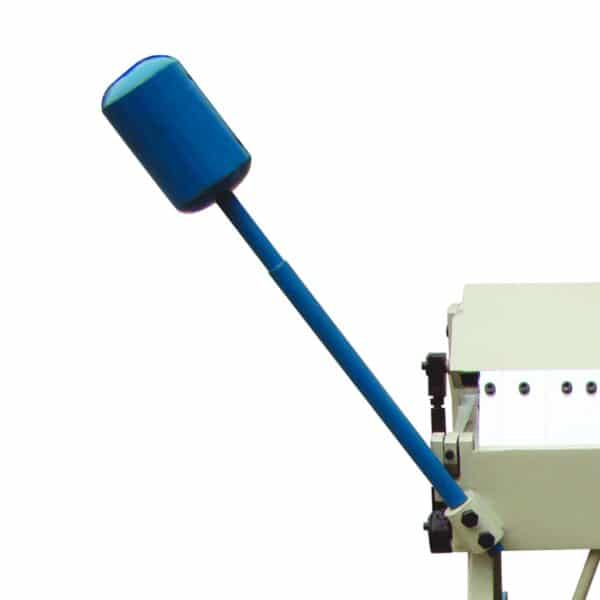

At maximum capacity this box and pan brake can bend up to 16 gauge mild steel sheet metal up to 48″ wide. A counter weight apron lift assist gives the operator a break when bending at full capacity. The BB-4816E sheet metal brake also comes standard with a gap adjustment, 16 hardened fingers of varying lengths and a sturdy floor stand.

1.6mm mild capacity
1mm stainless capacity
1219mm folder length
0° – 135° bend angle

Specifications
Item Number BB-4816E
Thickness (SS) 16 ga. (20 ga.)
Stand Yes
Bend Angle 0 135°
Shipping Weight 164 kgs.
Length 1220 mm
Shipping Dimensions (Inches) 1168 x 483 x 686 mm
