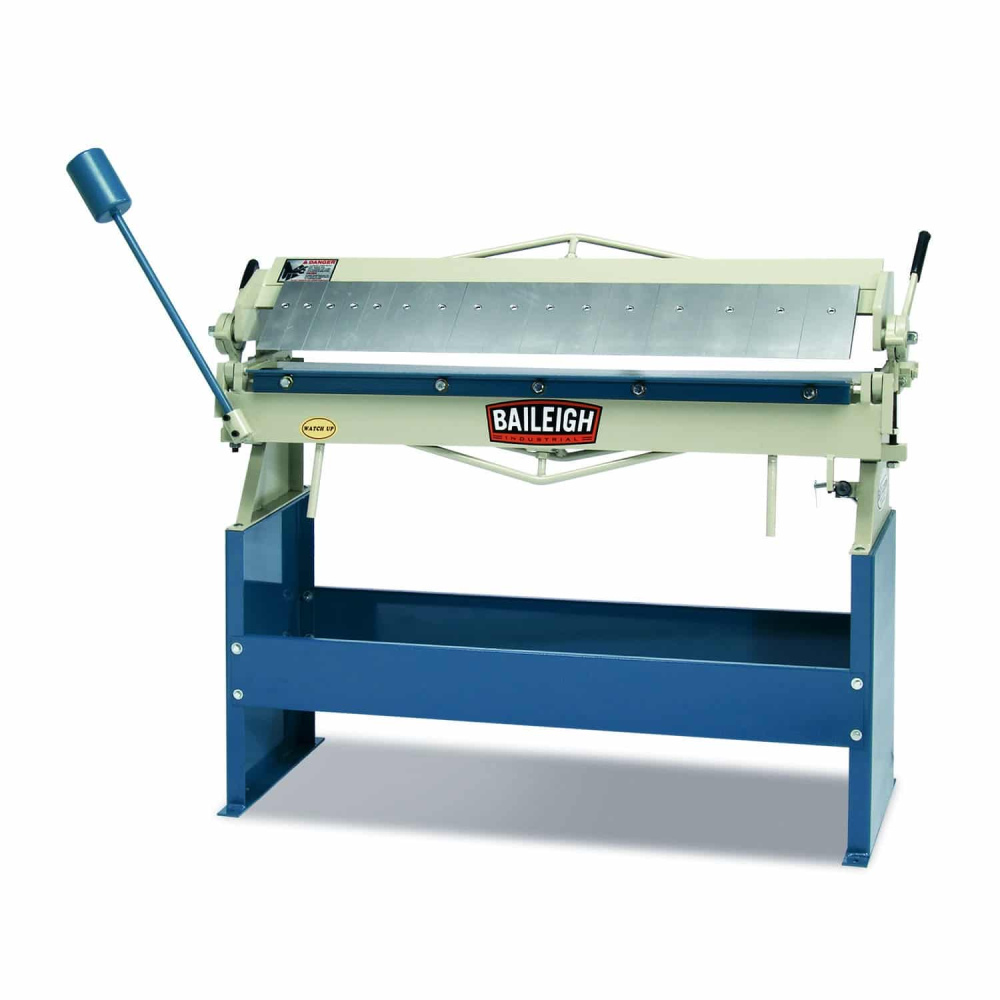

Baileigh BB-4816 Box & Pan Folder

Stock Code: BB-4816
MPN: BB-4816

Descriptions

When looking for a high quality 1270mm box and pan brake, look no further than the BB-4816 from Baileigh Industrial. The BB-4816 is the perfect brake for any fabrication shop looking for a top-of-the-line, high-quality light gauge sheet metal brake.

The BB-4816 sheet metal brake uses a fully welded main beam and apron for maximum rigidity, which lessens the chances of deformation to the material being bent. The BB-4816 was designed to accept 48 wide sheets of 16 gauge mild steel, bending to perfect angles every time.

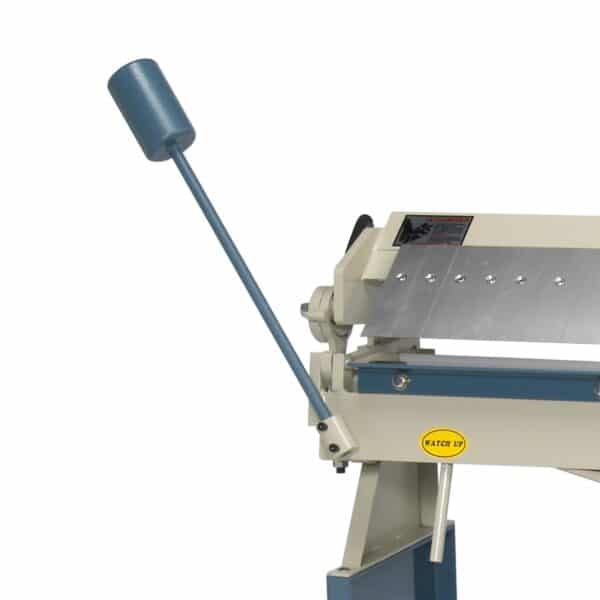

To assist with bending at full capacity, the BB-4816 box and pan brake includes a heavy-duty counter balance weight; this weight will save time and energy for the operator.

The BB-4816 can be bench mounted or can be permanently placed upon the included heavy-duty stand.

16 hardened fingers of different lengths are also included to assist in fabricating as many different sizes of boxes and pans imaginable.

1.6mm mild capacity
1mm stainless capacity
1270mm folder length
0° – 135° bend angle

Specifications
Item Number BB-4816
Country of Manufacture Taiwan
Thickness (SS) 16 ga. (20 ga.)
Stand Yes
Beam Adjustment 16 mm
Beam Lift Max 44 mm
Bend Angle 0 135°
Finger Sizes 2″ 3″ 4″
Shipping Weight 250 kgs.
Length 1270 mm
Shipping Dimensions (Inches) 1626 x 686 x 813 mm
