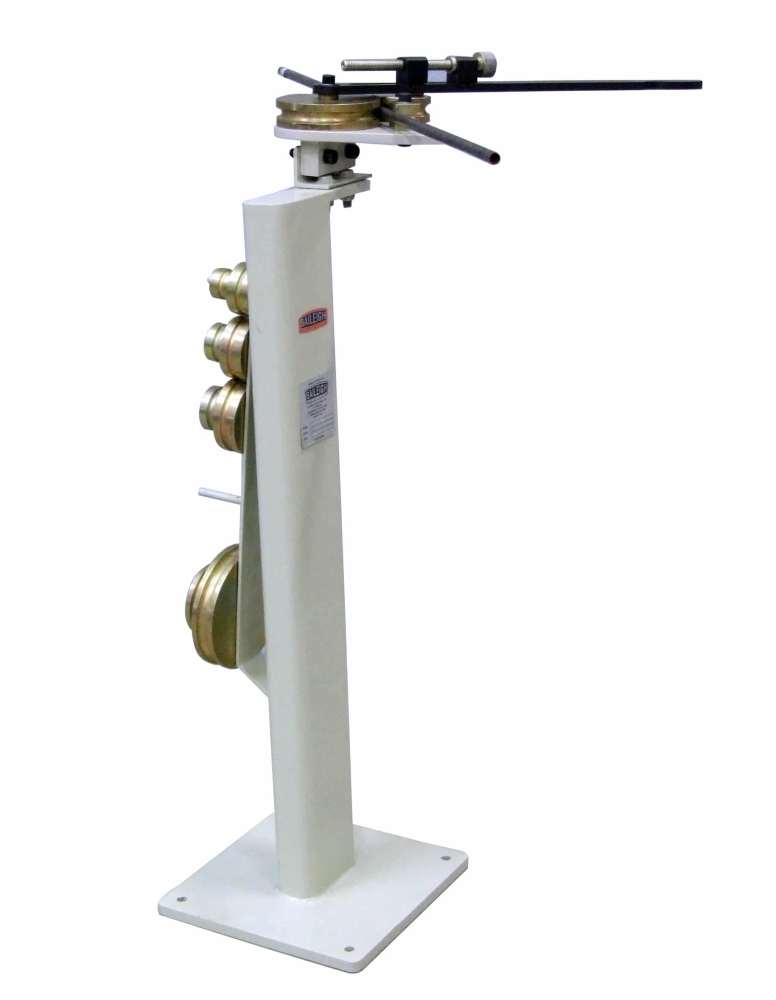

Baileigh RDB-10 Manual Roll Bender

Stock Code: RDB-10
MPN: RDB-10

Descriptions

The RDB-10 manual tube bender from Baileigh Industrial is perfect for bending air lines, brake lines, fuel lines, and general hydraulic lines. If your job entails building or repairing race cars, car and airplane repair or restoration, an automated machinery builder, you know the value of properly bent lines. The RDB-10 manual tube bender will save you time and money from the first moment you use it.

The RDB-10 comes with 10 different size combinations from 1/4″ to 5/8″ OD in either 3 or 5 times the diameter radi. The RDB-10 works great with mild steel, certain coppers and aluminums, as well as stainless steel. Delivered fully built onto a heavy pedestal, with tooling rack.

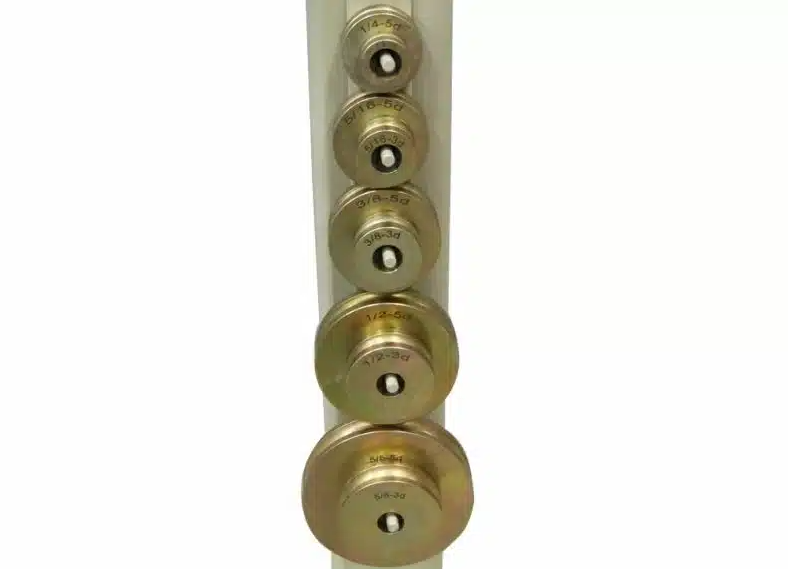

Included Die Sets

1/4 x 3D 6.350 mm x 3D

1/4 x 5D 6.350 mm x 5D

5/16 x 3D 7.938 mm x 3D

5/16 x 5D 7.938 mm x 5D

3/8 x 3D 9.525 mm x 3D

3/8 x 5D 9.525 mm x 5D

1/2 x 3D 12.7 mm x 3D

1/2 x 5D 12.7 mm x 5D

5/8 x 3D 15.875 mm x 3D

5/8 x 5D 15.875 mm x 5D

The RDB-10 is easy to use and can bend tubing up to 180°. Because of the design, it can do serpentine bends with ease at very tight radii (depending on the OD, material, and wall thickness)
