RED by Lorch MIG 210 SYN Multi-process Welder

Stock Code: WPLREDMIG210S
MPN: 442.2001.0

Descriptions

RED by Lorch MIG 210 SYN Welder

Low-cost, compact MIG-MAG welding package available online from Wasp Supplies.

Product Overview

Brand: RED by Lorch
Model: Red Mig 210 SYN
Voltage: 230V
Processes: MIG-MAG (Synergic), MMA (Stick), and DC Lift-TIG
Warranty: 3-Year Manufacturer's Warranty
Availability: Ready-to-weld package available directly via Wasp Supplies.

Key Features

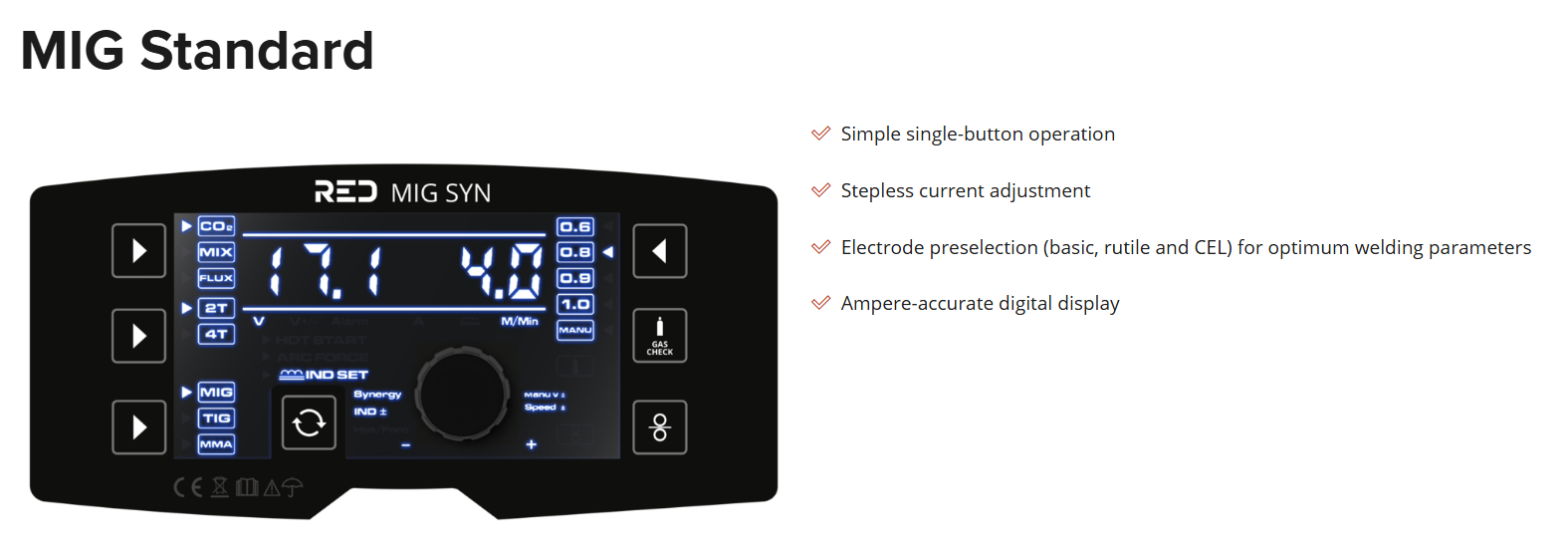

Synergic Control: Automatically matches welding parameters for fast, easy setup.
Multi-Process Versatility: Seamlessly switches between MIG, MMA, and DC Lift-TIG capabilities.
Compact & Portable: Engineered for workshops, maintenance teams, and mobile fabricators.
German Engineering Standards: Backed by RED by Lorch quality with a full 3-year warranty.

Full Package Contents

The official factory-packed RED by Lorch MIG 210 SYN set (MPN: 442.2001.0) includes everything you need to start welding immediately—just add your choice of gas and wire:

Power Source: RED by Lorch MIG 210 SYN 5–200 Amp multi-process inverter with a UK 3-pin plug.
MIG Torch: MB15 AK welding torch (3-metre length), pre-equipped with a 0.8 mm contact tip.
MMA Lead: 3-metre arc welding lead complete with electrode holder (25 mm²).
Earth Lead: 2-metre ground cable fitted with a heavy-duty earth clamp (25 mm²).
Gas Infrastructure: Shielding gas pressure reducer/regulator paired with a 1.5-metre gas hose (W 21.8 × 1/14").
Drive Rollers: Three included wire feed rollers to cover various jobs:
- 0.6 / 0.8 mm V-groove roller
- 0.8 / 1.0 mm V-groove roller
- 0.8 / 0.9 mm Knurled roller (ideal for flux-cored wire)
Spares & Accessories: Additional 0.8 mm and 1.0 mm contact tips.

Compatible Wires & Front-End Consumables

Keep your machine running optimally with genuine replacement parts and wire options stocked directly on the Wasp Supplies E-Commerce Store.

1. Compatible 5kg (200mm) MIG Wire Spools

The internal feed unit accommodates 5kg spools. Ensure you match your wire selection with the corresponding synergic software setting:

Mild Steel: Wasp Supplies Mild Steel Wires (A18 SG2 G3Si1 grade double-deoxidised solid wire in 0.6mm, 0.8mm, or 1.0mm).
Gasless / Flux-Cored: Wasp Supplies 0.8mm Flux-Cored Wire (Self-shielding mild steel wire for outdoor welding without gas cylinders; requires switching the torch to negative polarity).
Stainless Steel: Wasp Supplies Stainless Steel Wires (High-grade corrosion-resistant solid wires for clean, high-strength structural fabrication).
Aluminium: Wasp Supplies Aluminium Wires (Requires a Teflon torch liner swap and matching U-groove drive rollers to avoid bird nesting soft alloy wire).

2. Torch Consumables (MB15 / 15AK Type)

The included 3-metre air-cooled torch relies on standard industrial standard Wasp Supplies MB15 Gas Cooled Front-End Spares:

Contact Tips (M6 Thread): Keep a steady stock of 0.6mm, 0.8mm, and 1.0mm replacement copper tips to preserve arc stability as the bore wears.
Gas Shrouds / Nozzles: Conical slip-on shrouds that securely channel the shielding gas pattern evenly around the weld puddle.
Tip Adaptors / Diffusers: Internal brass components designed to distribute shielding gas evenly while securing the contact tip to the torch neck.
Shroud Springs: Replacement tension springs that hold the slide-on gas nozzles firmly in place on the torch swan neck.

Technical Specifications

The following technical data details the performance capabilities of the machine across all three welding modes:

Specification	MIG-MAG Mode	MMA (Stick) Mode	DC Lift-TIG Mode
Welding Current Range	50 – 200 A	10 – 160 A	10 – 200 A
Duty Cycle at Max Current (40°C)	15% (200 A)	20% (160 A)	20% (200 A)
Current at 60% Duty Cycle (40°C)	115 A	92 A	115 A
Current at 100% Duty Cycle (40°C)	89 A	72 A	89 A
Mains Voltage Requirement	230V ± 10% (Single Phase)	230V ± 10%	230V ± 10%
Compatible Wire Diameters	0.6 / 0.8 / 0.9 / 1.0 mm	/	/
Compatible Electrode Diameters	/	2.5 – 3.25 mm	/
Internal Wire Spool Capacity	5 kg (200mm diameter)	/	/
Net Machine Weight	10 kg	10 kg	10 kg
Weldable Materials	Steel, Stainless Steel	Steel, Stainless Steel	Steel, Stainless Steel

Frequently Asked Questions (FAQ)

Q: What does "Synergic Control" mean on this model?
A: It simplifies the setup process. You select your material type, wire diameter, and shielding gas, and the machine automatically sets the ideal voltage and wire feed speed for you.

Q: Can I run this welder off a standard domestic UK plug?
A: While it runs on a single-phase 230V supply, at top end high-output welding typically requires a 16A blue industrial plug rather than a standard 13A household plug to prevent tripping breakers at maximum power.

Q: Does this package include a TIG torch or MMA leads?
A: It includes the MMA electrode holder and lead. However, a Lift-TIG torch is not included in the standard package and must be purchased separately if you wish to use the TIG process.

Q: What size wire spools does the internal feeder accept?
A: The compact chassis is designed to house standard 5kg (200mm diameter) wire spools, keeping the machine lightweight and highly portable.

Q: How do I claim the 3-year warranty if something goes wrong?
A: The warranty is fully supported by Lorch. If you experience an issue, you can contact Wasp Supplies directly as your authorized dealer to arrange service, repair, or replacement.
