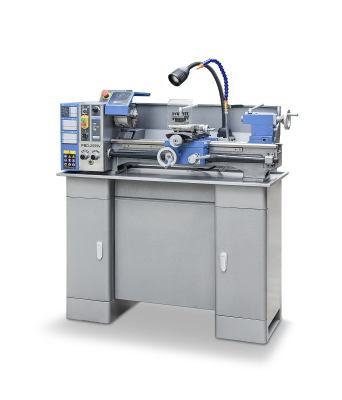

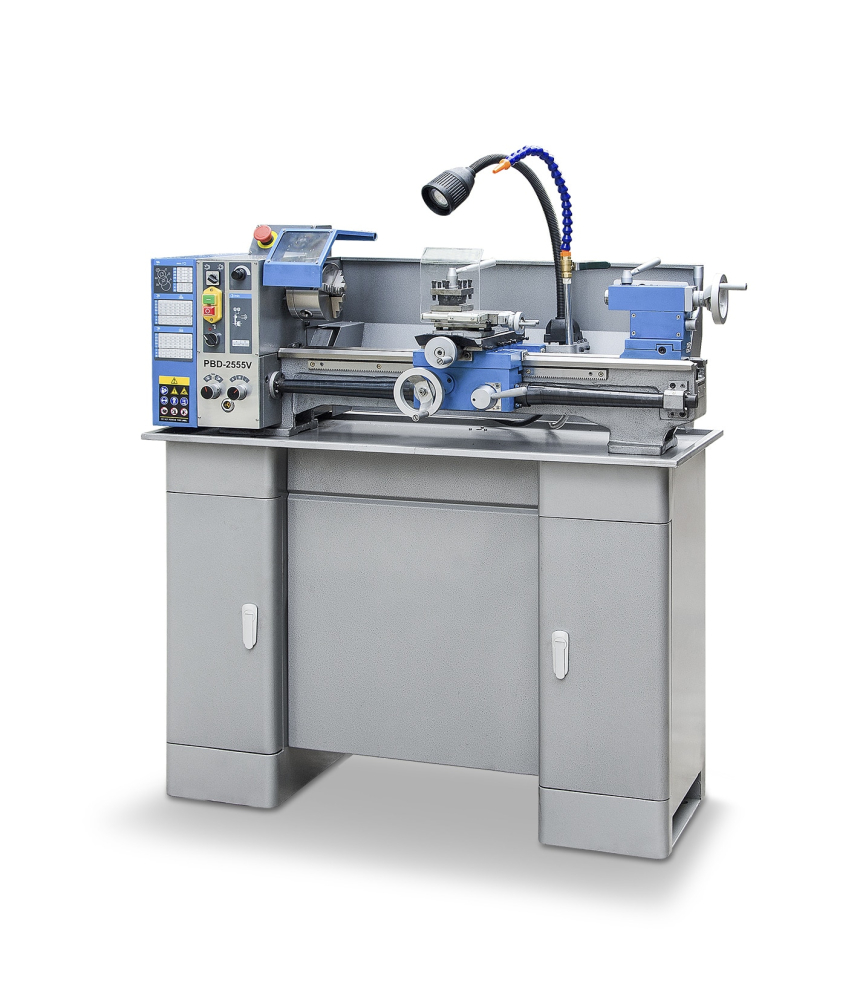

Promac PBD-2555V Economical Lathe

Promac PBD-2555V Economical Lathe

Stock Code: PBD-2555V
MPN: PBD-2555V
£2,581.25 (exc VAT) per 1
£3,097.50 (inc VAT)
Quantity: - +

Promac PBD-2555V Economical Lathe

Promac PBD-2555V Economical Lathe Gray cast iron frame for vibration-free machining Electronic variable speed control CW/CCW rotation of the spindle enables threads to be realized Lathe chuck protection, emergency stop switch.


Specifications:

Motor (V/kW) 230/1.1

Center height (mm) 125

Center distance (mm) 550

Swing over bed (ø-mm) 250

Swing over carriage (ø-mm) 140

Spindle bore (mm) 26

Morse taper of headstock MT4

Speed range (min-1) 50 2’500, variable

Cross slide, stroke (mm) 100

Top slide, stroke (mm) 75

Range of metric threads (mm) 0.2 4.0

Range of inch threads (TPI) 8 56

Longitudinal feed (mm/U) 0.07/0.4

Morse taper of tailstock MT2

Morse taper of tailstock, stroke (mm) 60

Max. tool size (mm) 12

3-jaw chuck (mm) 125

Dimensions (mm) 1’200×560×580

Weight (kg) 156

MPNPBD-2555V
BRANDPromac
WEIGHT156 kgs
ConditionNew
