Promac BD_8-M Lathe

Promac BD_8-M Lathe

Stock Code: BD_8-M
MPN: BD_8-M
£2,212.88 (exc VAT) per 1
£2,655.45 (inc VAT)
Quantity: - +

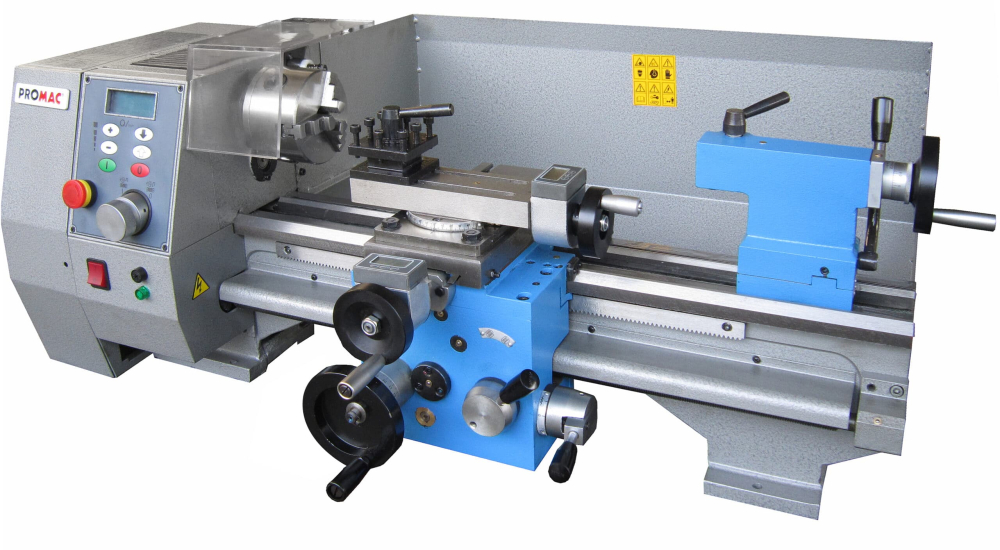

Promac BD_8-M Lathe

Promac BD_8-M Lathe grey cast iron frame for vibration-free machining, Spindle supported in ball bearings, CW/CCW rotation of the spindle enables threads to be realized, Digital speed display, Lathe chuck protection and emergency stop switch.


Specifications:

Motor (V/kW) 230/1.0

Center height (mm) 105

Center distance (mm) 450

Swing over bed (ø-mm) 210

Swing over carriage (ø-mm) 135

Spindle bore (mm) 20

Morse taper of headstock MT3

Speed range (min-1) 100 2’000 variable

Cross slide, stroke (mm) 100

Top slide stroke (mm) 70

Range of metric threads (mm) 0.25 3.0

Range of inch threads (TPI) 8 24

Longitudinal feed (mm/U) 0.045 0.126

Morse taper of tailstock MT2

Morse taper of tailstock stroke (mm) 40

Max. tool size (mm) 10

3-jaw chuck (mm) 100

Dimensions (mm) 1’000×550×400

Weight (kg) 94

MPNBD_8-M
BRANDPromac
WEIGHT94 kgs
ConditionNew
