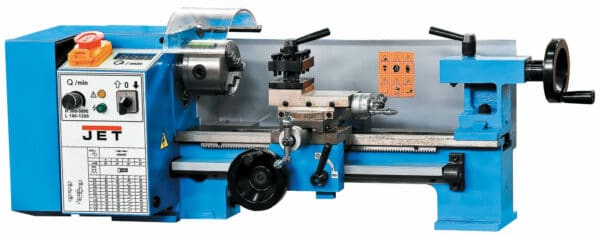

Promac BD_7-M Lathe

Promac BD_7-M Lathe grey cast iron frame for vibration-free machining, Spindle supported in ball bearings, CW/CCW rotation of the spindle enables threads to be realized, Digital speed display, Lathe chuck protection and emergency stop switch.


Specifications:

Motor (V/kW) 230/0.35

Center height (mm) 90

Center distance (mm) 300

Swing over bed (ø-mm) 180

Swing over carriage (ø-mm) 110

Spindle bore (mm) 20

Morse taper of headstock MT3

Speed range (min-1) 100 3’000 variable

Cross slide stroke (mm) 65

Top slide stroke (mm) 50

Lead screw (ø-mm) 16

Lead screw thread pitch (mm) 1.5

Range of metric threads (mm) 0.4 2.0

Range of inch threads (TPI) 12 52

Longitudinal feed (mm/U) 0.09

Morse taper of tailstock MT2

Morse taper of tailstock stroke (mm) 40

Max. tool size (mm) 8

3-jaw chuck (mm) 80

Dimensions (mm) 870×300×290

Weight (kg) 44

MPNBD_7-M
BRANDPromac
WEIGHT44 kgs
ConditionNew
