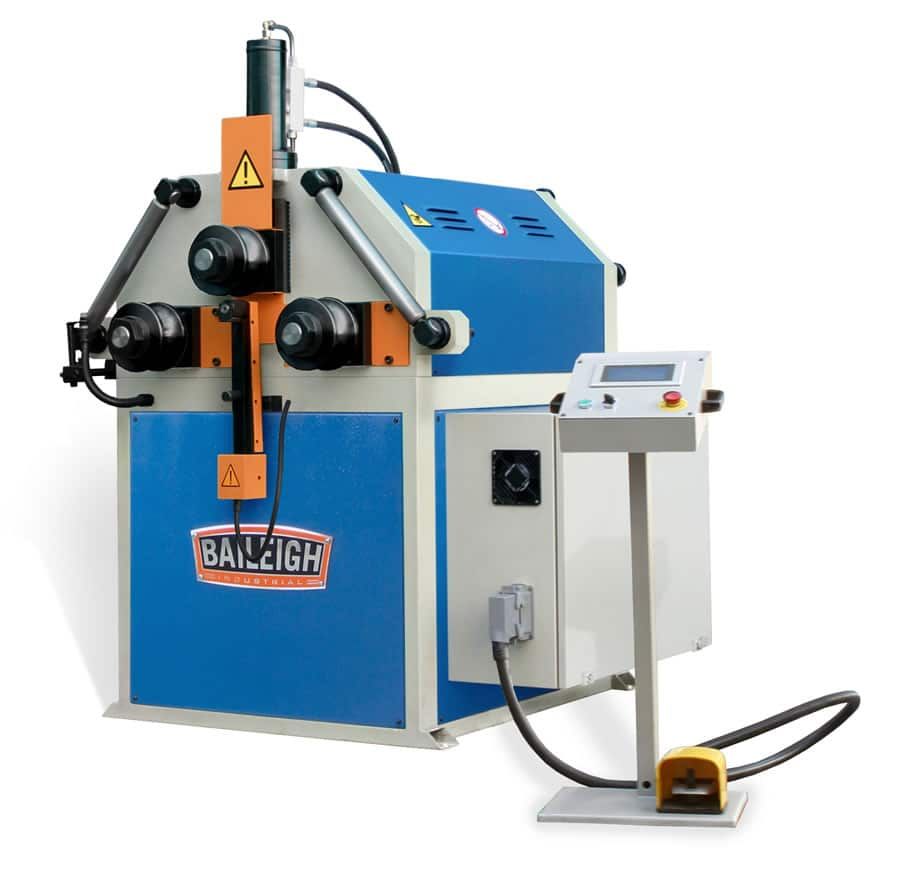

Baileigh R-CNC45 CNC Roll Bender

Stock Code: R-CNC45
MPN: R-CNC45

Descriptions

The most compact model in the Baileigh CNC Roll bender line up. The R-CNC45 will make a fantastic addition in any shop that roll bends material up to 2. This machine comes equipped with the latest and greatest in CNC technology. The industrial-grade touchscreen control makes this unit not only flexible, but also easy to use and long lasting.

The R-CNC45 is capable of storing up to 40 programs with 24 bends per program and can be custom ordered to store even more!

The machine incorporates components from some of the industry's top manufacturers such as Rexroth, Schneider Electric and many others.

Are complex extrusions giving you some difficulties bending because of material deformation or wrinkling?

No need to worry any longer, or CNC roll benders are built with interchangeable bottom rolls for the ultimate in versatility and material control. Working hand in hand with our arc metre radius gauge, waste material is now almost eliminated.

40 programs
24 different parts (segments) per program
75 profile calibrations
2 Speeds (rotation of the rolls)
4 Speeds (top roll movement)
Top roll movement can be progressive* or direct**

*Progressive Top roll go to position with profile moving.

**Direct Top roll go to position with profile stopped.

58mm Ø 3mm round tube capacity
Single pinch
CNC – touch screen
Triple driven rolls

Specifications

Item Number R-CNC45
Country of Manufacture Portugal
Driven Rolls 3
Roll Adjustment Hydraulic
Pipe Capacity Size: 2″ (sch. 40) / Min. Dia.: 80″
Round Tube Capacity Size: 2.5″ (.100″) / Min. Dia.: 60″
Square Tube Capacity Size: 2.00″ (.110″)
Flat Bar Easy Way Size: 3.5″ (.50″) / Min. Dia. 32″
Flat Bar Hard Way Size: 3.15″ (.375″)/ Min. Dia.: 32″
Angle Iron Capacity Size: 2″ (.196″) / Min. Dia.: 24″
Shaft Diameter 1.77″
Shaft Center Distance Adj. (lower rolls)
Upper Roll Dia. 6.693″
Lower Roll Dia. 6.693″
Motor 4.96 hp
Pinch Single with Interchangeable Bottom Rolls
Digital Readout Yes
Power 400V / 3-phase
Shipping Weight 1,191 lbs.
*Optional Tooling Some applications may require optional tooling.
Dimensions L x W x H 48″ x 30″ x 58″
