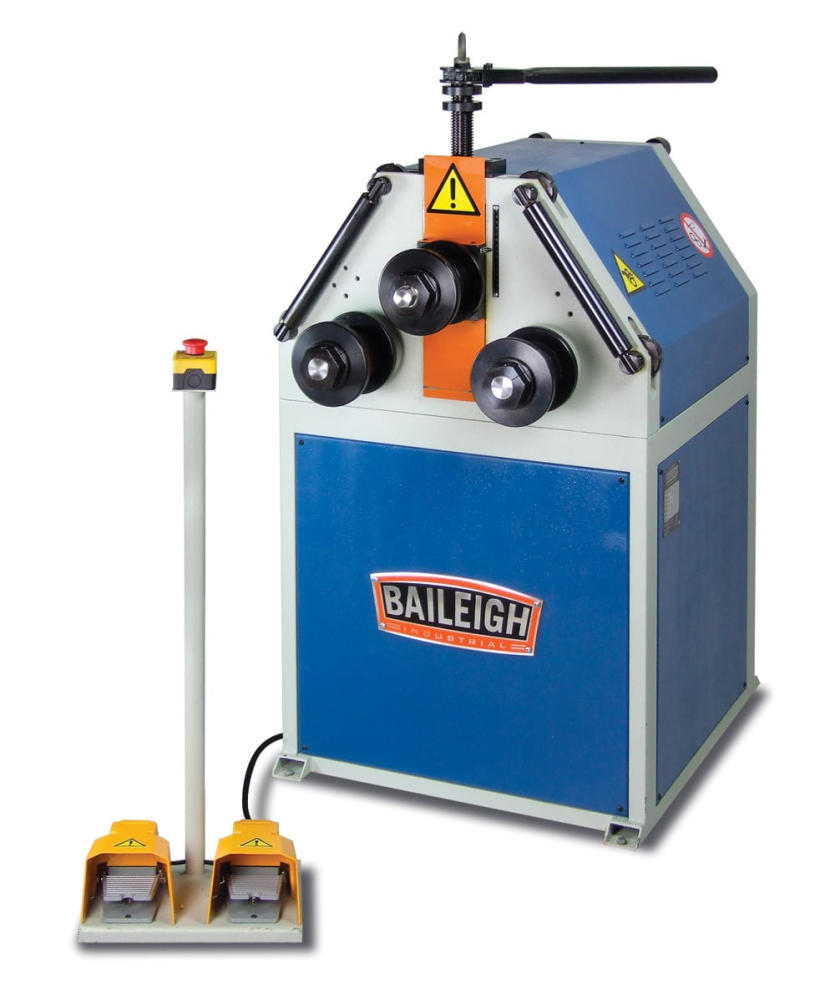

Baileigh R-M55 Variable speed Roll Bender

Stock Code: R-M55
MPN: R-M55

Descriptions

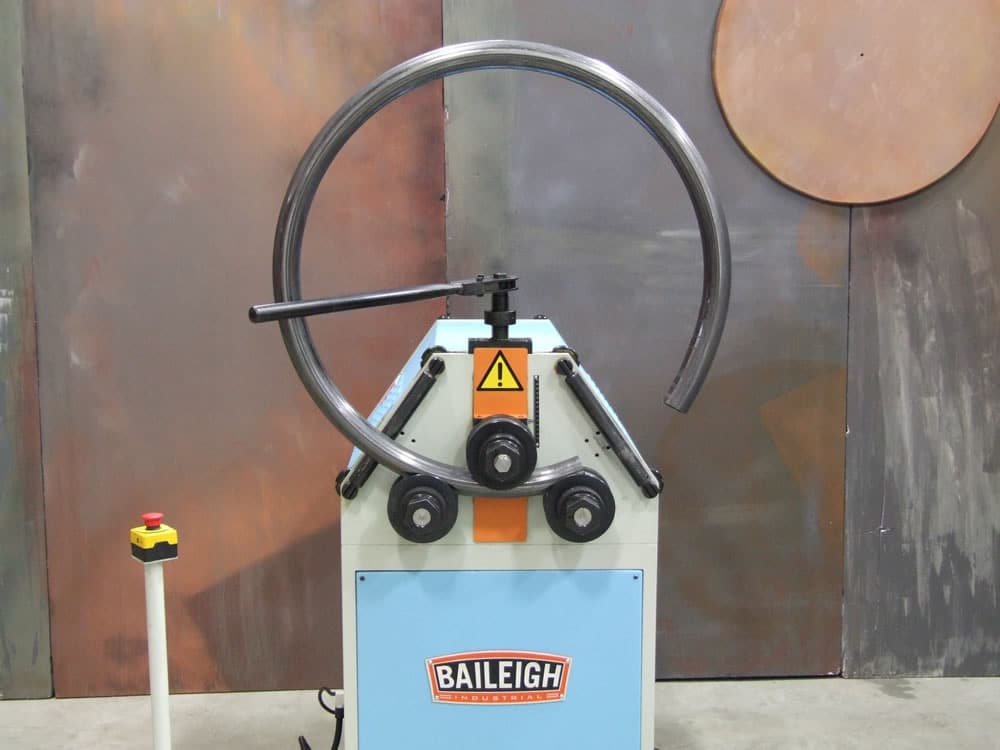

The Baileigh R-M55 has been the flagship in the Baileigh Industrial roll bender line since its introduction. It has a 2″ schedule 40 pipe capacity, which is impressive for a manual top shaft, two driven roll machine. To achieve this type of capacity, the R-M55 uses a variable speed inverter that is overload protected. This allows the operator to fine-tune the rolling speed for each material.

The R-M55 is very versatile, and can be used in any fabrication shop or even out in the field on job sites, as it only requires 220 volt, single phase power to operate.

It can be operated both the vertically for smaller rolling projects, as well as horizontally on its back, for large rolling projects, as there are feet on the bottom and back of the machine.

The R-M55 roll bender comes standard with foot pedal controls, segment rolls, and lateral roll guides to keep the material from twisting during the bend. The top roll position is manually controlled with the use of a large ratchet for more leverage, and the position is indicated on a scale for repeatable bends every time. Optional rolls can be purchased for different profiles like tubing, pipe, angle iron and much more.

Foot pedal operation
60mm Ø 2mm round tube capacity
Single pinch
Double driven rolls

Specifications

Item Number R-M55Country of Manufacture PortugalDriven Rolls 2Roll Adjustment ManualPipe Capacity Size: 48 (3) mm / Min. Dia: 1,000 mmRound Tube Capacity Size: 60 (2) mm / Min. Dia.: 1,100 mmSquare Tube Capacity Size: 40 (3) mm / Min. Dia.: 1,219 mmSolid Round Capacity Size: 35 mm / Min. Dia.: 900 mmFlat Bar Easy Way Size: 80 mm x 15mm/ Min. Dia.: 700 mmFlat Bar Hard Way Size: 60 mm x 10mm/ Min. Dia.: 900 mmAngle Iron Capacity Size: 50 (5) mm / Min. Dia.: 950 mmShaft Diameter 50 mmShaft Center Distance 13.12″Upper Roll Dia. 148 mmLower Roll Dia. 148 mmMotor 1.5 hpPinch SinglePower 220V / 1-phaseShipping Weight 453 kgs.Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength Mild Steel.*Optional Tooling Some applications may require optional tooling.Speeds 5754Shipping Dimensions (Inches) 1524 x 1118 x 1727 mm
