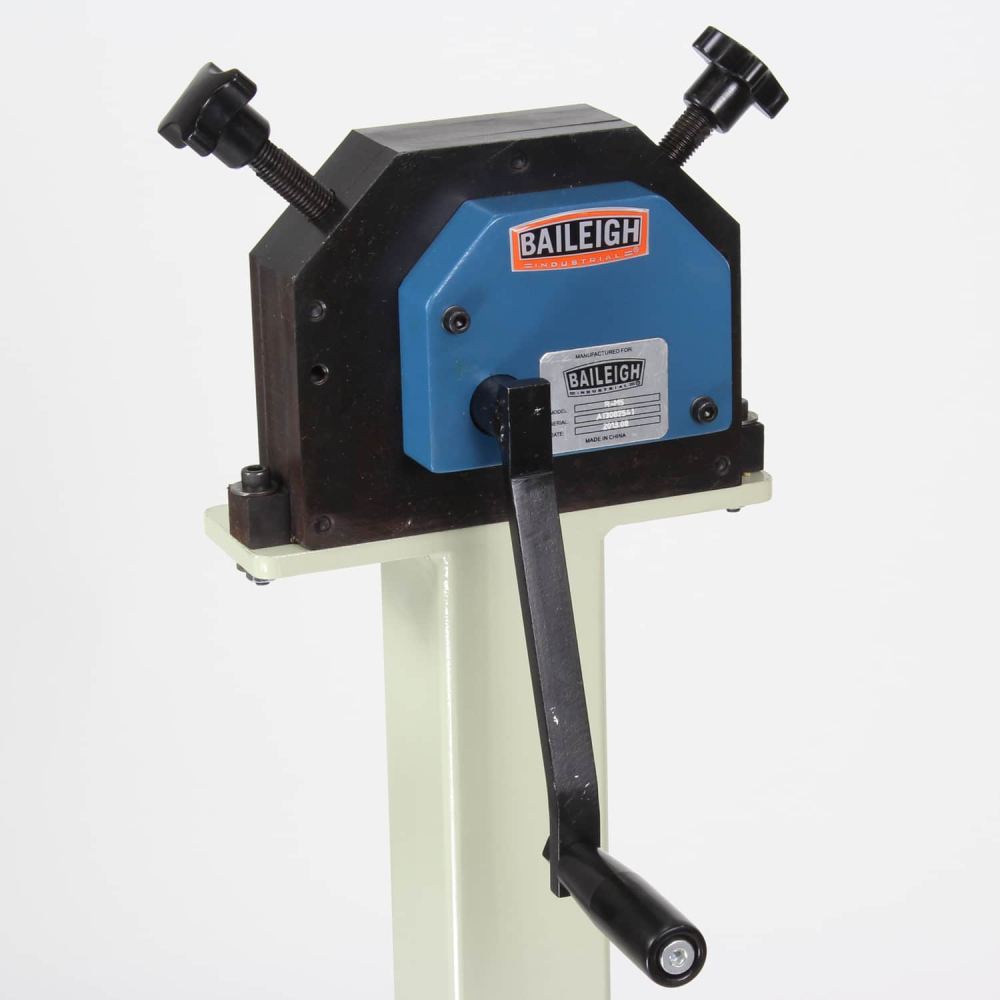

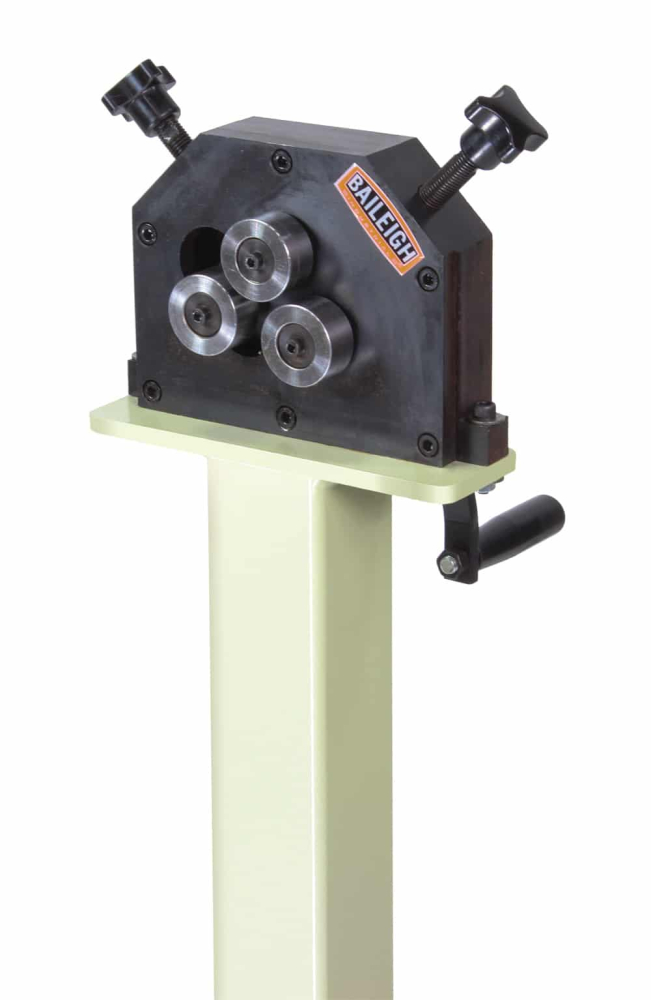

Baileigh R-M5 Manual Roll Bender

Stock Code: R-M5
MPN: R-M5

Descriptions

The R-M5 ring roller from Baileigh Industrial is not like any other machine in its class; this machine is built using only the best parts and is designed to last a lifetime. The unique adjustment of this three driven roll bender allows bending on either side of the bottom roll to give you more radius options.

Small compact and portable

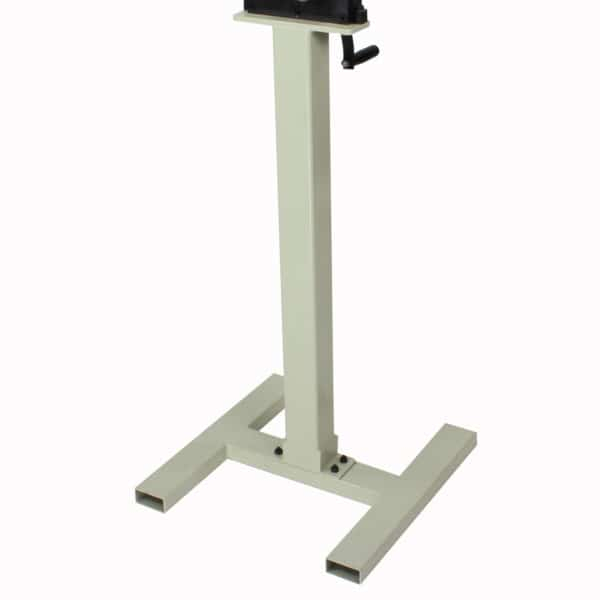

Comes with stand

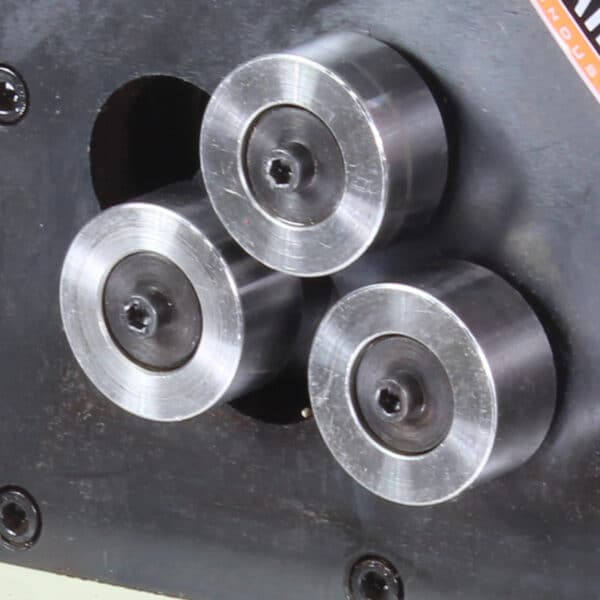

3 driven, manually powered rolls
Includes tooling for flat bar
Perfect for doing small circles
Optional tooling sets for round stock available

Manual operation
16mm Ø 1.5mm round tube capacity
Comes with stand

Specifications

Item Number R-M5
Round Tube Capacity 16mm x 1.5mm (Min Dia 150mm)
Capacity Solid Round (w/ optional tooling) .5″
Flat Bar Easy Way 25 mm x 7 mm
Flat Bar Hard Way 20mm x 6mm (Min. Dia. 120mm)
Shaft Diameter 15mm
Power Manual
Shipping Weight 85 lbs.
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength Mild Steel.
*Optional Tooling Some applications may require optional tooling.
Shipping Dimensions (Inches) 30″ x 40″ x 18″
