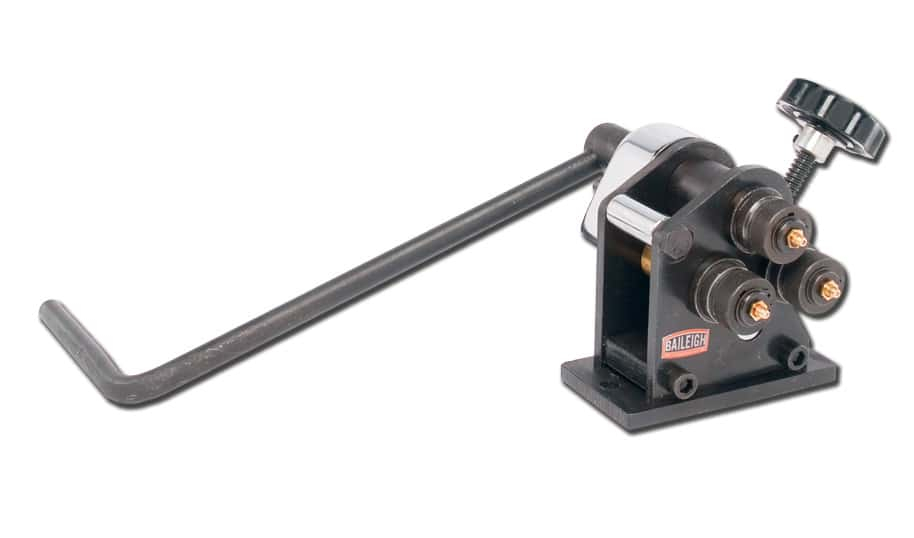

Baileigh R-M3 Manual Roll Bender

Stock Code: R-M3
MPN: R-M3

Descriptions

Ever have the need to work with small material under 6.5mm? If so, the R-M3 from Baileigh Industrial might be you answer. The Baileigh Industrial R-M3 metal ring roller is perfect for any fabrication shop with smaller capacity applications. The R-M3 roll bender makes precise bending of small rod (up to 6.5mm) easy. Artists, technical schools, and home shops can find hundreds of uses to keep this well built angle roll in use every single day.

Unlike some other versions of this ring roller that are available, the Baileigh R-M3 is made using only the best plate steel, ensuring years of productivity.

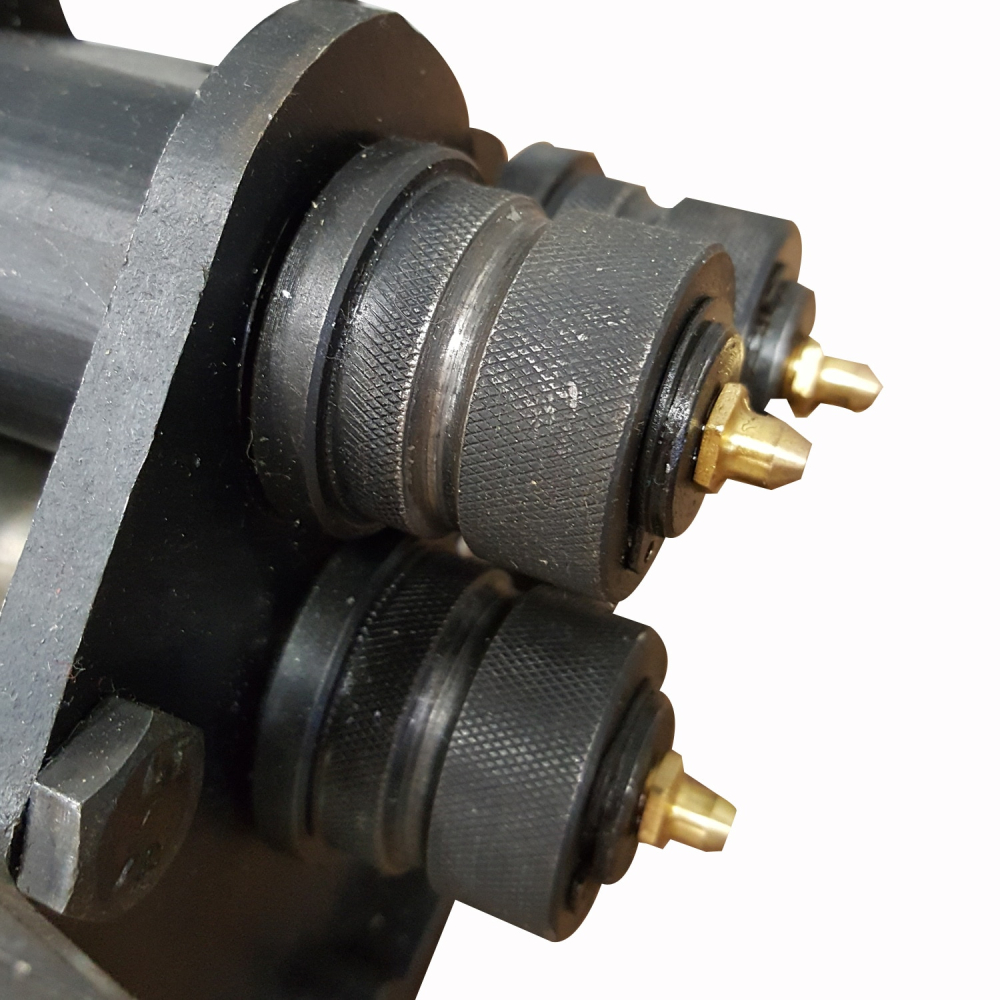

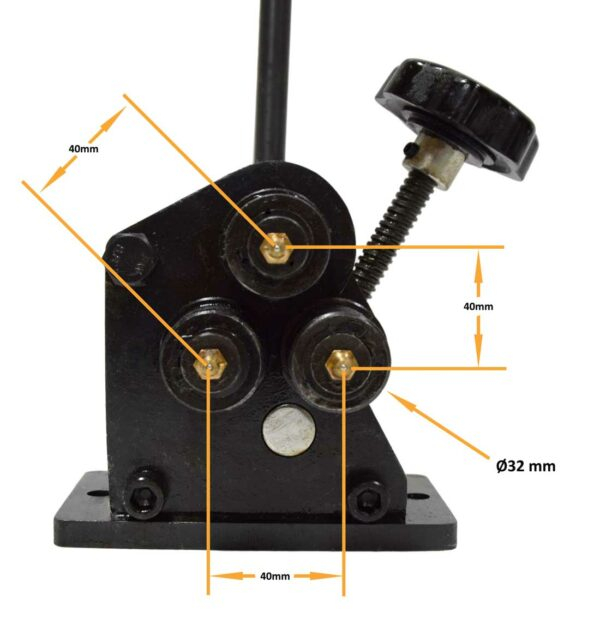

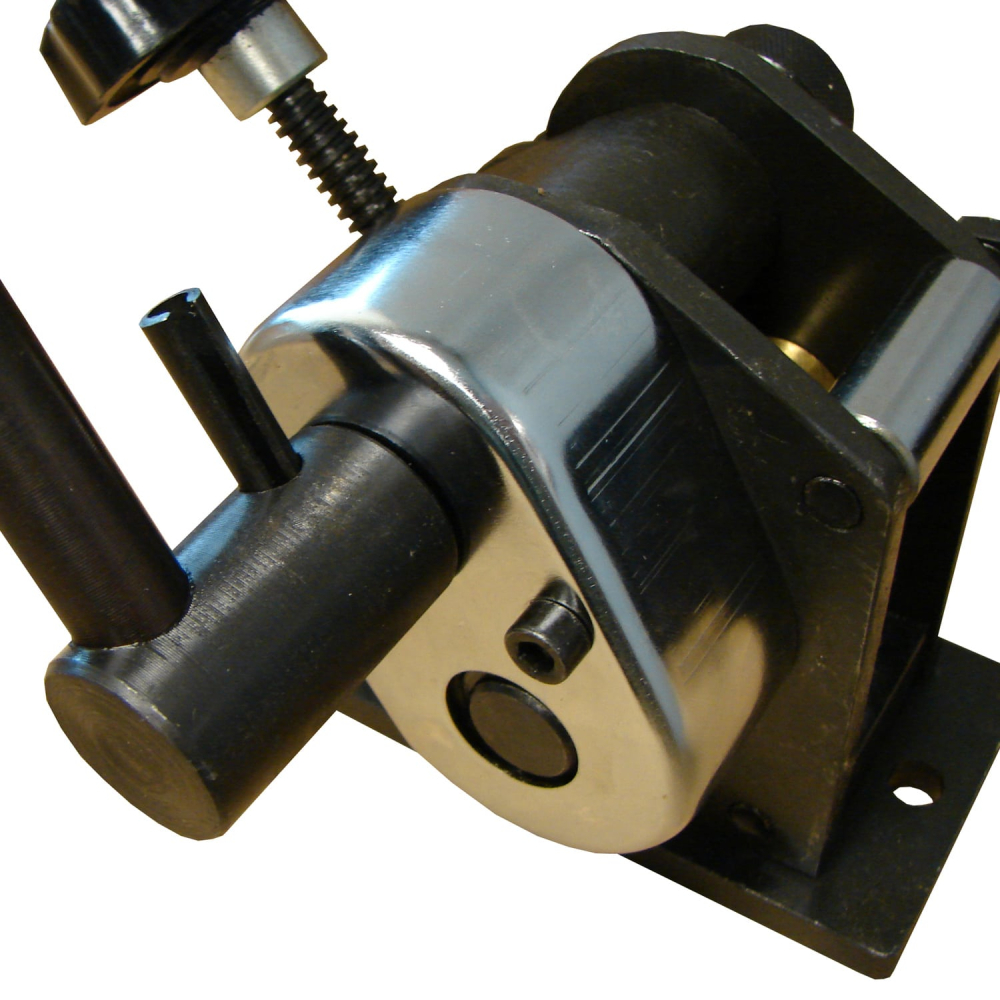

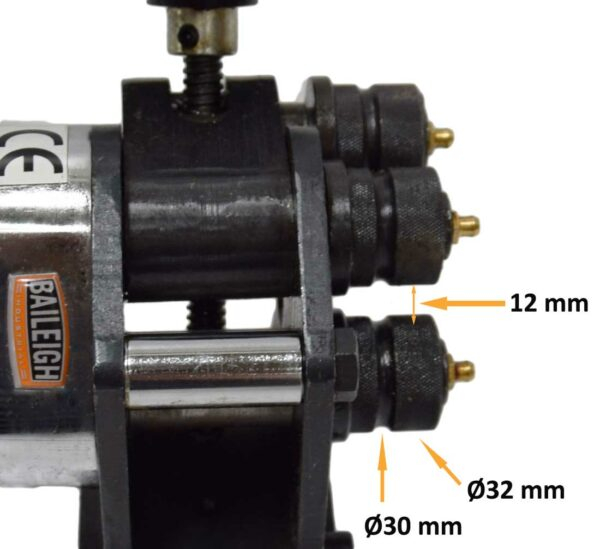

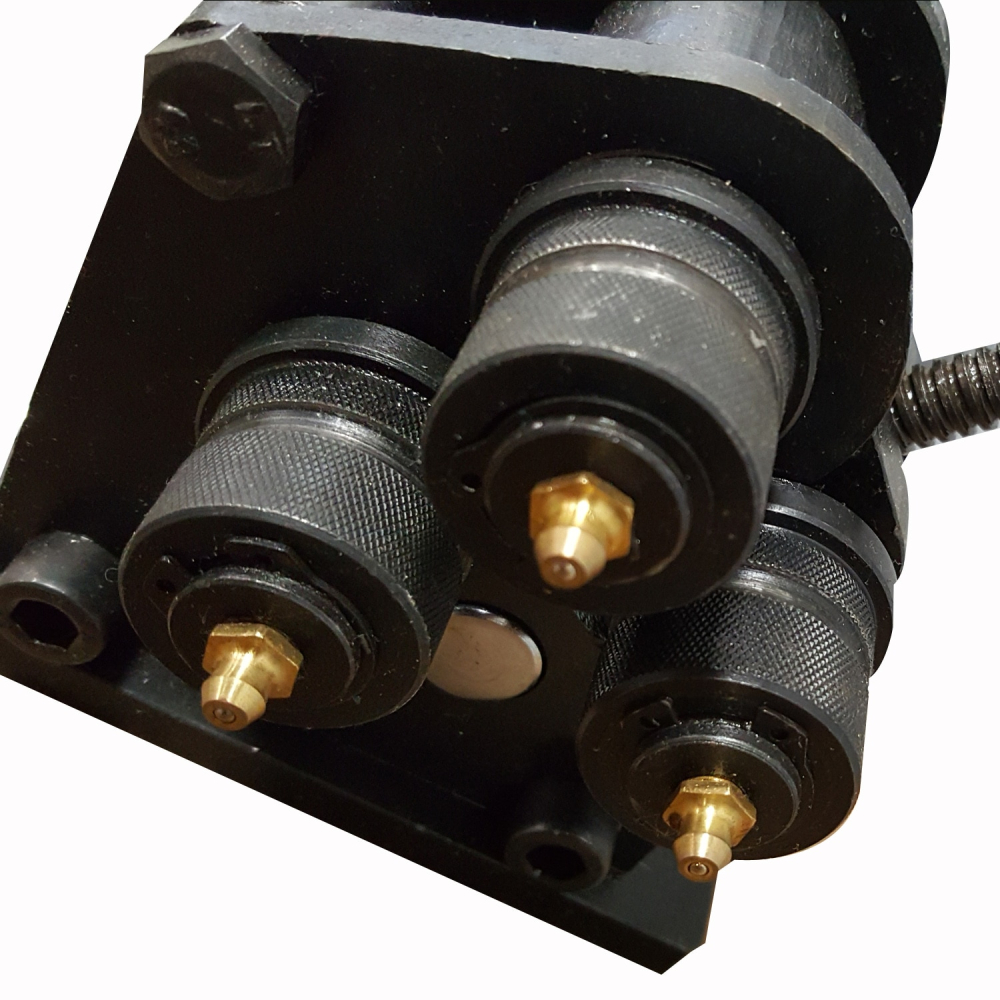

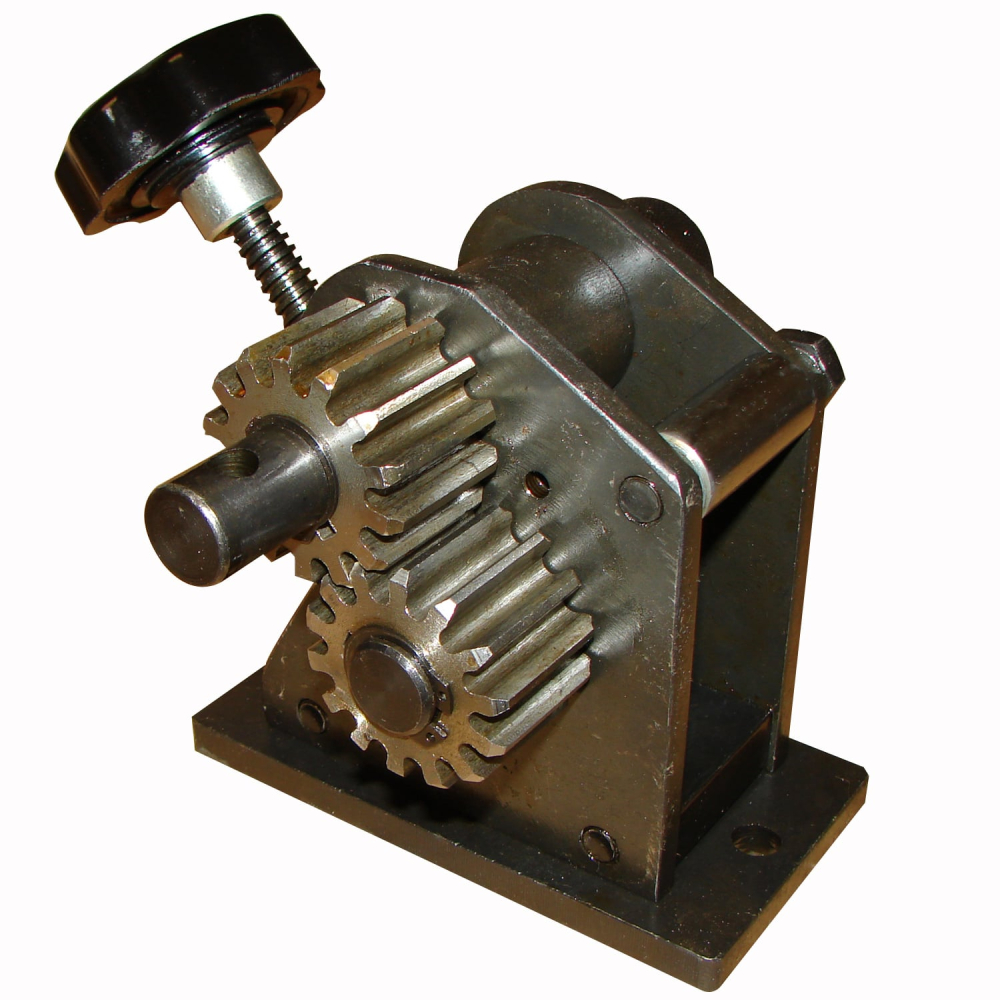

The R-M3 is a single pinch metal ring roller that can be bench or pedestal mounted. It has fine adjustment for the top roll and to power this ring roller there is a long manual hand crank.

Don't be fooled by it small size, the R-M3 is a workhorse when the job is right.

Manual operation
6.35mm Ø solid round capacity

Specifications

Item Number R-M3
Minimum Diameter 76.2 mm
Capacities Flat Bar 25 mm x 5 mm
Capacities Solid Round 6.35 mm
Handle Length 343 mm
Power Manual
Shipping Weight 8 kgs.
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength Mild Steel.
*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Shipping Dimensions (Inches) 381 mm x 178 mm x 203 mm
